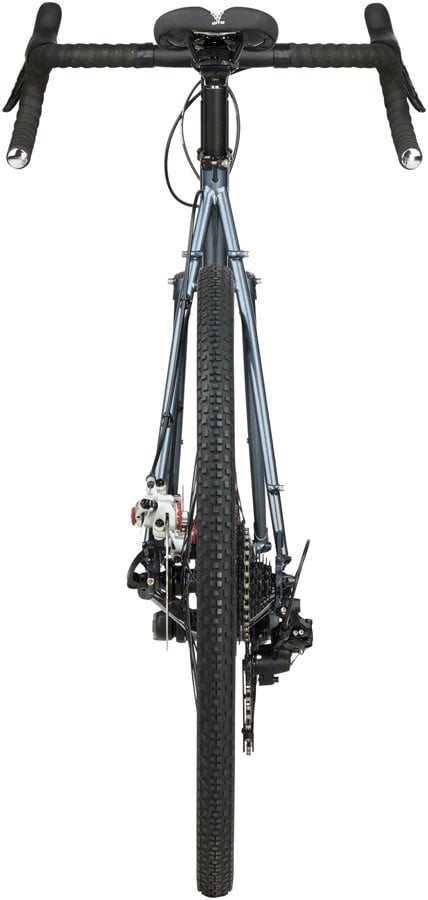

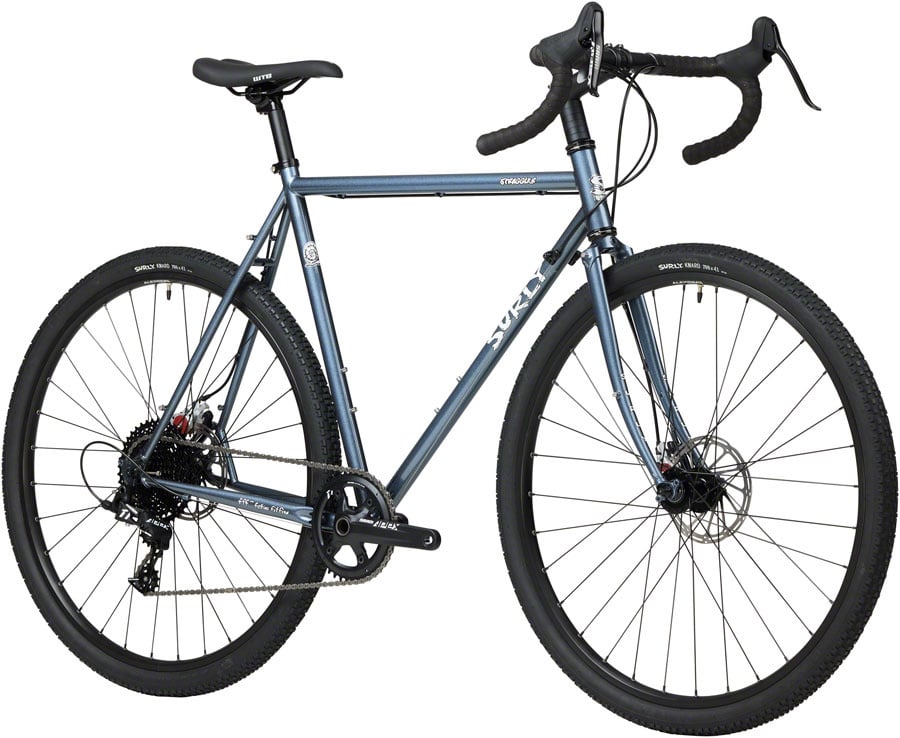

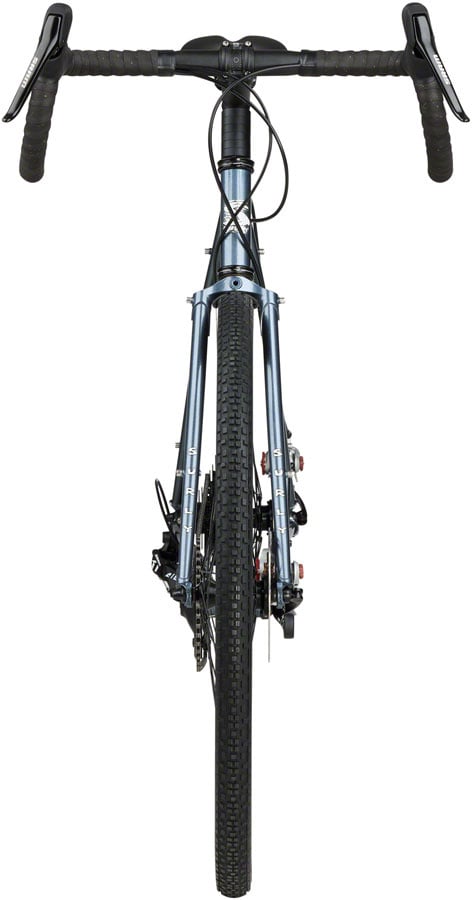

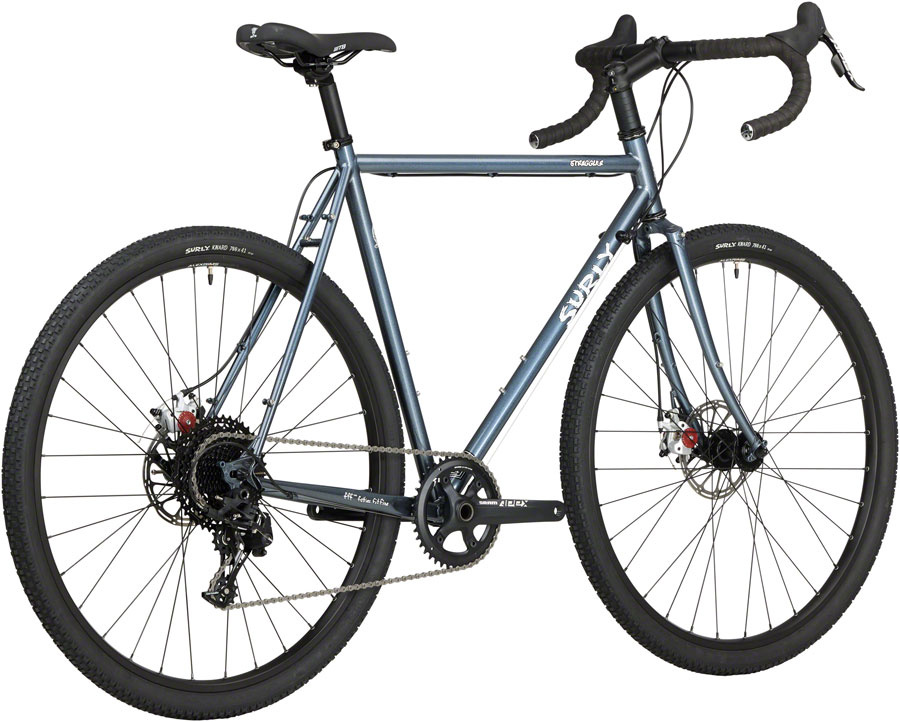

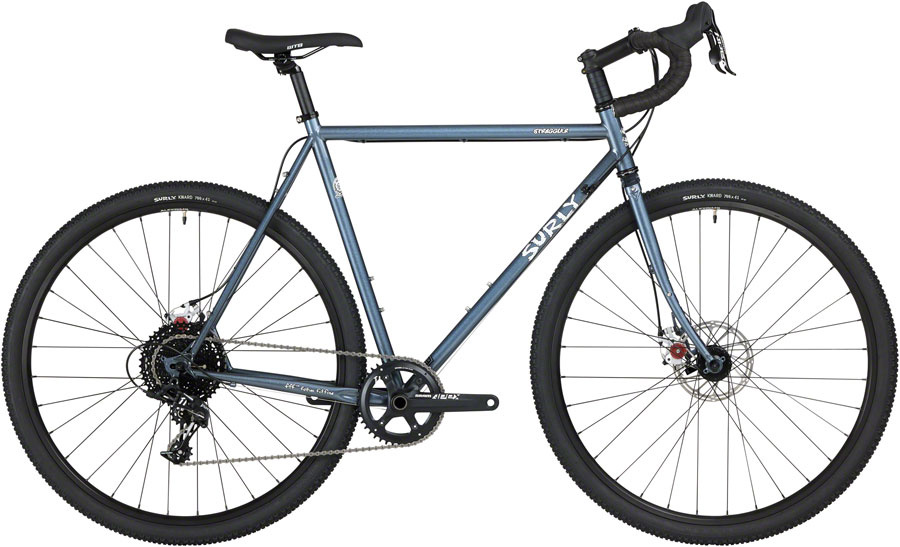

The Surly Straggler is tuned for cross-over exploration on a wide variety of terrain conditions. It’s a day-tripper and a weekender.
Born on Gravel. Raised on Pavement
Straggler is tuned for cross-over exploration on a wide variety of terrain conditions. It’s a day-tripper and a weekender. It’s a ‘rough road’ road bike, a cyclocross bike with no pretense about racing, a utilitarian townie, a light-duty touring bike and an all-weather commuter. It’s a steel gravel bicycle that thrives on the road. Think of it as a “mountain biker’s road bike.” If you only have room for one bike in your life, Straggler can (and should) be your one and only.
Straggler’s capabilities go well beyond asphalt. It also lends itself well to light touring setups. We're talking frame bags, seat bags, and "credit card touring” rather than full-blown touring. Straggler also handles our 8- and 24-Pack Racks well, so you have some heavier-duty loading options.
Frameset
|
|
|
Details |
|
Frame |
|
Surly Straggler, 100% Surly proprietary 4130 CroMoly tubing, ED Coated, TIG-welded, Double-butted main triangle |
|
Fork |
|
Surly Straggler, 4130 CroMoly, disc only, lugged and brazed, sloping crown with threaded eyelets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets |
|
Seatpost Clamp |
|
Surly Stainless, 30.0mm |
Components
|
|
|
Details |
|
Headset |
|
Cane Creek 40 Series |
|
Brakes & Rotors |
|
SRAM Avid BB7, SRAM Centerline 160/160, 6-Bolt |
|
Brake Levers |
|
SRAM Apex |
|
Shifter |
|
SRAM Apex |
|
Stem |
|
Kalloy 31.8 |
|
Handlebar |
|
Salsa Cowbell |
|
Grip/Tape |
|
Black Cork |
|
Saddle |
|
WTB Volt |
|
Seatpost |
|
Kalloy 27.2 x 350mm, offset on 52-62cm frames |
Drivetrain
|
Component |
|
Details |
|
Crankset |
|
SRAM Apex 1, 42T |
|
Bottom Bracket |
|
SRAM GXP |
|
Front Derailleur |
|
N/A |
|
Rear Derailleur |
|
SRAM Apex 1 |
|
Cassette |
|
SunRace CSMS7, 11–42t, 11spd |
|
Chain |
|
SRAM PC-1110 |
Wheels
|
Component |
|
Details |
|
Front Hub |
|
Novatec 10 x 100mm QR, 6-Bolt, 32h |
|
Rear Hub |
|
Novatec 10 x 135mm QR, 6-Bolt, 32h |
|
Rims |
|
Alex Adventurer 2, tubeless ready |
|
Spokes |
|
14G Black |
|
Tires |
|
Surly Knard 650b x 41mm, 33 tpi or 700c x 41mm, 33 tpi |
|
Complete Bike Weight |
|
700c 56cm bike - 27 lb. 2 oz / 650b 54cm bike - 26 lb. 15 oz |
Frame Construction
|
|
|
Details |
|
Frame |
|
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
|
Fork |
|
4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated |
|
Rear Dropout |
|
Forward-exiting horizontal |
|
Rear Hub Spacing |
|
10 x 135mm |
|
Front Hub Spacing |
|
10 x 100mm |
|
Rear Brake |
|
Disc - 51mm I.S. (160mm max rotor) |
|
Front Brake |
|
Disc - 51mm I.S. (160mm max rotor) |

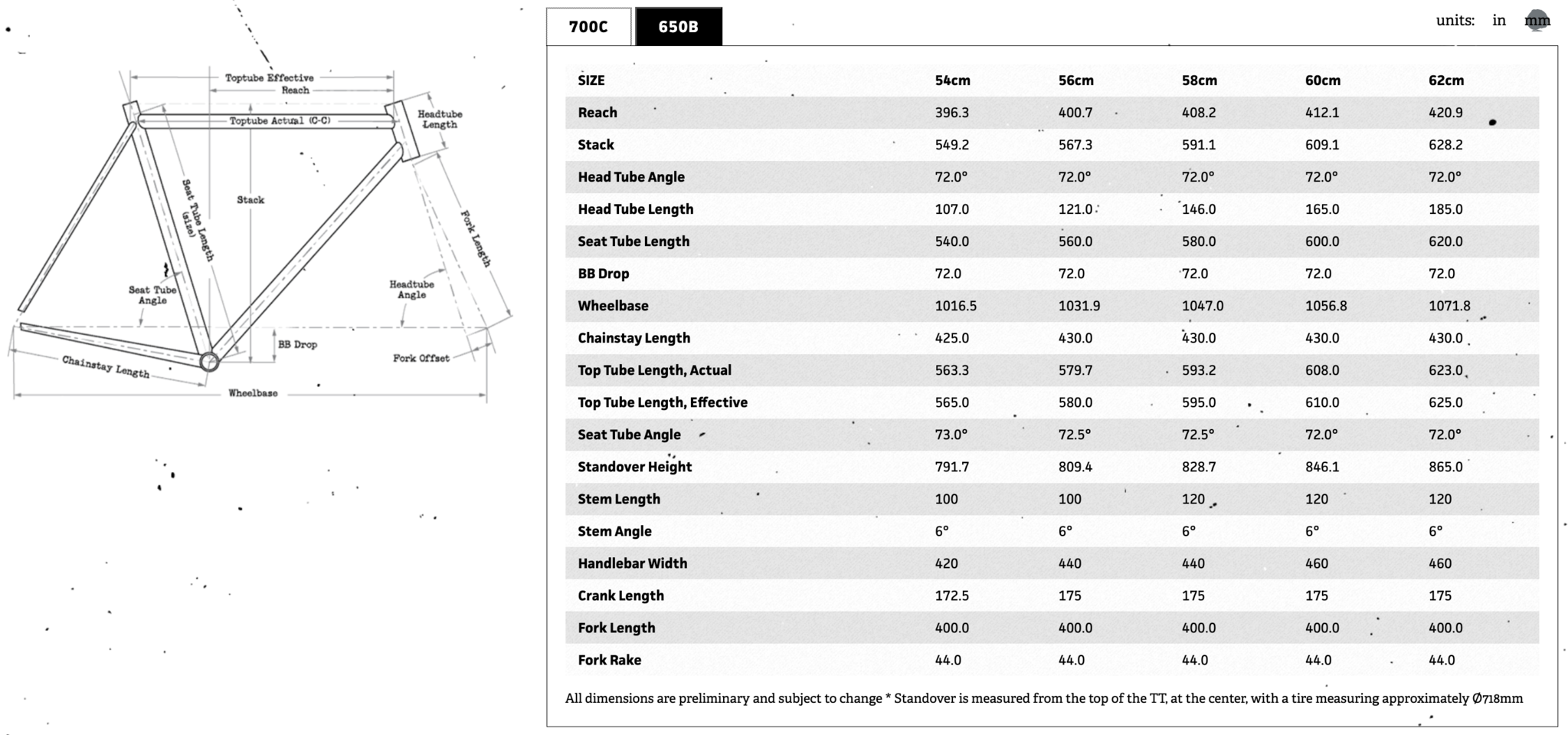

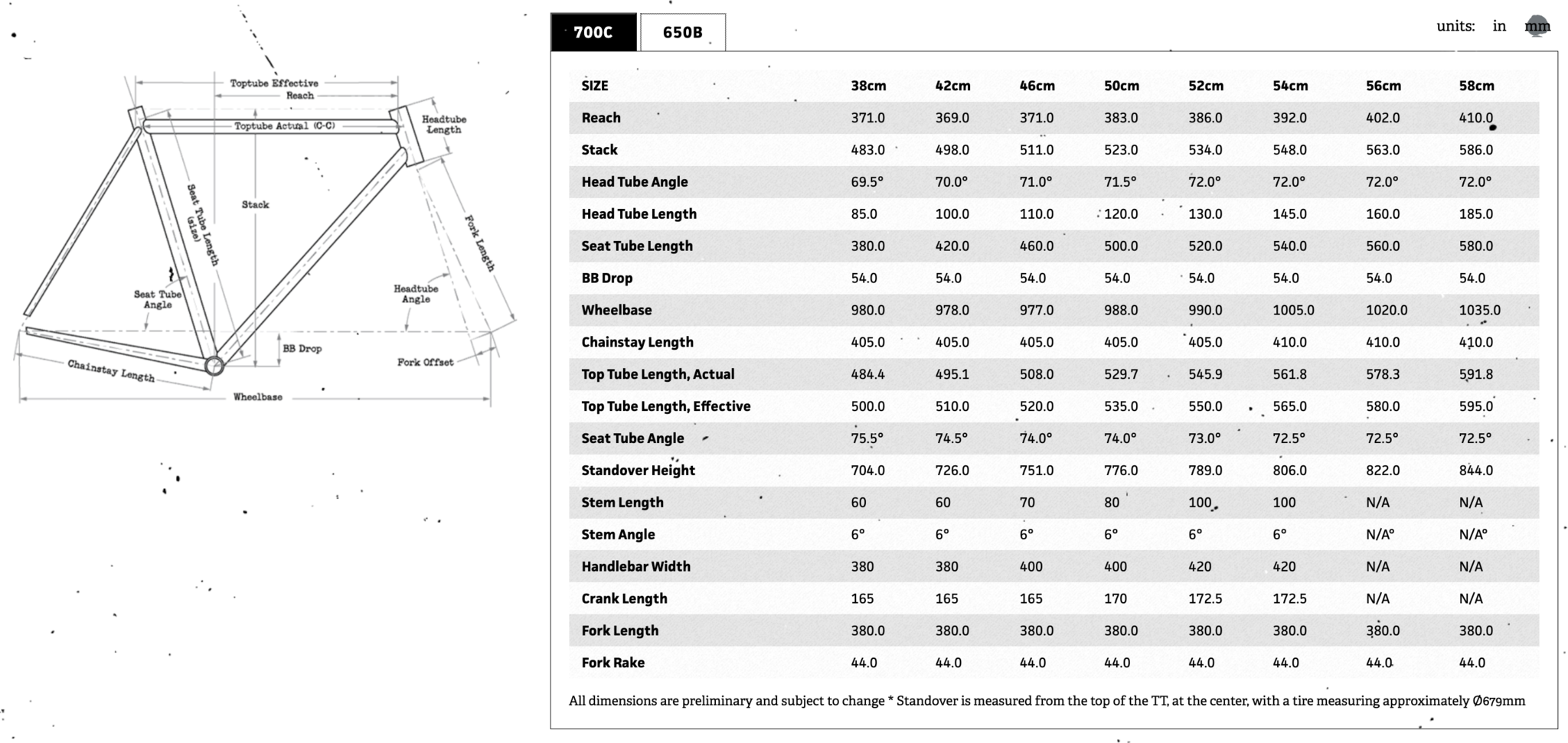

Frame Dimensions & Configurations
|
|
|
Details |
|
Head Tube |
|
Ø34mm |
|
Steerer Tube |
|
Ø28.6mm (1-1/8") |
|
Crown Race |
|
Ø30mm (1-1/8") |
|
Stock Headset Upper (S.H.I.S.) |
|
EC34/28.6 |
|
Stock Headset Lower (S.H.I.S.) |
|
EC34/30 |
|
Seat Collar |
|
Ø30mm |
|
Seatpost |
|
Ø27.2mm |
|
Front Derailleur (Clamp) |
|
Bottom-pull (Ø28.6mm) |
|
Max Chainring |
|
1x (Road): 50T, 2x (Road): 39/53T |
|
Bottom Bracket |
|
68mm threaded (1.37" x 24TPI) |
Tire Clearance & Fork Specs
|
|
|
Details |
|
Tire Clearance (Frame) |
|
650b: 650b x 42mm (w/ fenders), 700c: 700c x 42mm (with or without fenders) |
|
Tire Clearance (Fork) |
|
650b: 650b x 42mm (w/ fenders), 650b: 27.5 x 2.0" (w/o fenders), 700c: 700c x 42mm (w/ fenders), 700c: 29 x 2.0" (w/o fenders) |
|
Rigid Fork Spec |
|
650b: 380 x 44mm, 700c: 400 x 44mm |
|
Max Suspension Fork Length |
|
N/A |
Mounting & Additional Features
|
|
|
Details |
|
Bottle Mounts (Frame) |
|
2 Standard |
|
Bottle Mounts (Fork) |
|
N/A |
|
Rack Mounts (Frame) |
|
Yes (upper and lower threaded) |
|
Rack Mounts (Fork) |
|
Yes (upper, lower, and mid-blade threaded) |
|
Fender Mounts (Frame) |
|
Yes |
|
Fender Mounts (Fork) |
|
Yes |
|
Other Features |
|
Downtube mounted shifter bosses (cable housing stops not included with frameset) |
