Simplify the Haul With an Electric Cargo Bike
Riding loaded with cargo is core to us here at Surly, whether we’re running a front rack and bag setup or a long-tail cargo bike with passengers along for the ride. There are times, however, when even the strongest riders are limited in what they can haul, so we created Big Easy – our long-tail electric cargo bike. Consider it the 18-wheeler of the cargo bike world, minus the diesel fumes.
When it comes to geometry, Big Easy rides and feels like a normal-length bike – the upright, engaged rider position keeps things comfortable. So, whether you want to wave goodbye to the old family gas hog, upgrade your bike-supported business’s two-wheeled fleet, or simply haul more bowling balls during your daily commute, Big Easy makes doing all that, well, easy.
- Full component set selected for the demands of heavy cargo hauling, including Tektro four-piston hydraulic brakes for enhanced stopping power
- Expanded rider fit per size and long throw dropper post compatibility to improve bike sharing among different-sized riders
- Equipped with the most powerful Bosch electric bike motor for elevated performance
- Features Surly dual-leg kickstand for unmatched stability when loading and unloading cargo
- Two-seat compatibility for human passengers big or small – no adapter needed (Thule Yepp Nexxt Maxi and Burley Dash)
- Lower stand over height for improved stability when stopping, mounting, and dismounting

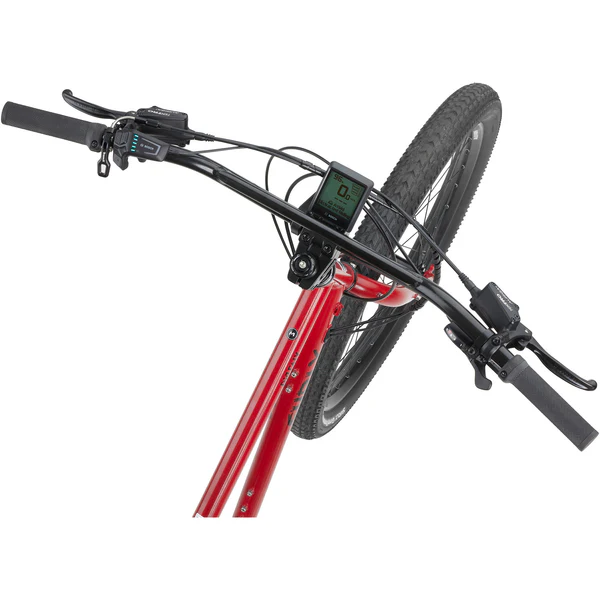

- High-rise Surly Sunrise handlebars give riders leverage to control heavy loads and the body position to keep you comfortable
- Featuring updated Big Dummy bags with simplified design and consistent cargo capacity

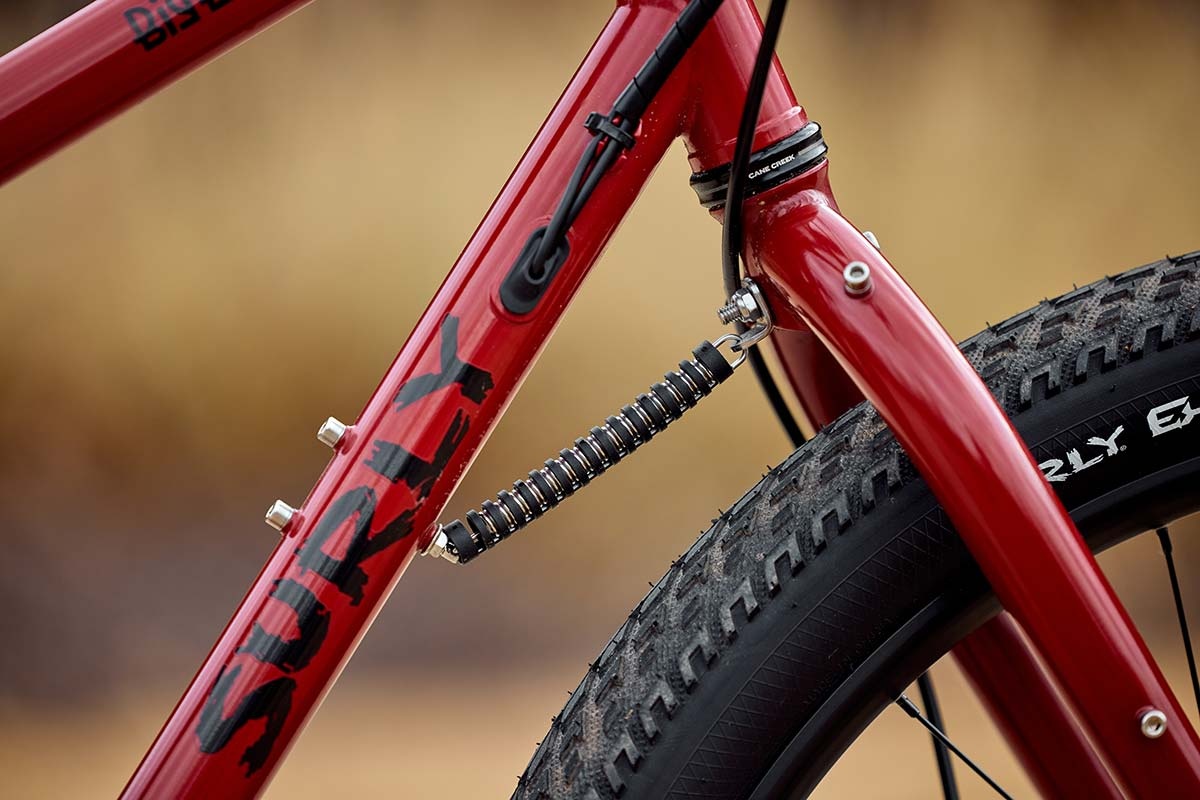

- Damping headset for smooth and stable handling under heavy loads
- Capable of running dual batteries for extended range
- Large-volume 26 x 2.5" Extraterrestrial tires for smoother rides and durable wheel builds for added stiffness and strength
Frameset
- Frame: 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded
- Fork: Surly Dinner, 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork legs, TIG welded, E.D. coated
- Seatpost Clamp: 33.1mm Surly Stainless
Components
- Headset: Cane Creek ViscoSet [tuned for Surly Big Easy] upper. 40 series lower
- Brakes: Tektro HD-T740, 4 Piston
- Rotors: 203mm F/180mm R, 6-Bolt
- Shifters: Shimano Cues U4000
- Stem: Cane Creek ViscoSet [tuned for Surly Big Easy] upper. 40 series lower
- Handlebar: Surly Sunrise
- Grip/Tape: Velo Black
- Saddle: WTB Volt
- Seatpost: TransX JD-YSP15, 30.9mm Dropper Post
Drivetrain
- Crankset: FSA E-Bike CK-763/IS, paired with 38T FSA Chainring
- Bottom Bracket: Samox BSA
- Front Derailleur: n/a
- Rear Derailleur: Shimano Cues U4000 GS
- Cassette: Shimano Cues LG400, 11-46t, 9 speedmicroSHIFT 11-48t
- Chain: KMC eGlide EPT Anti-Rust
Wheels
- Front Hub: Novatec 15x110mm, 32h
- Rear Hub: Novatec 12x148mm, 32h
- Rims: Alex MD30, 26", 32h
- Tires: Surly Extra Terrestrial 26 x 2.5" 60tpi, Tubeless Compatible
Motor/Battery

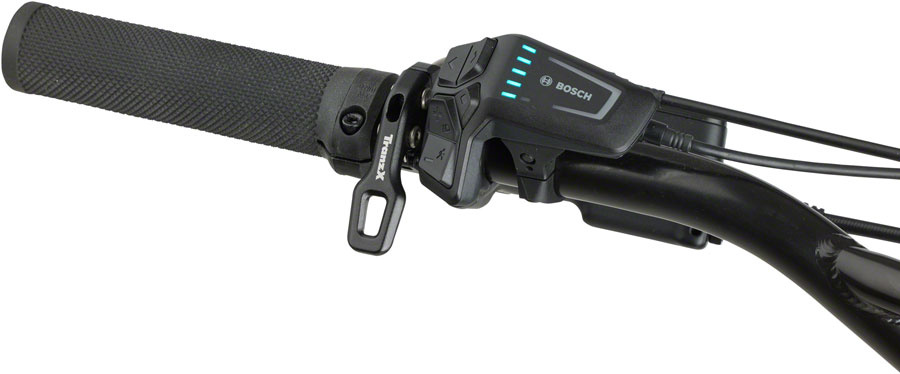

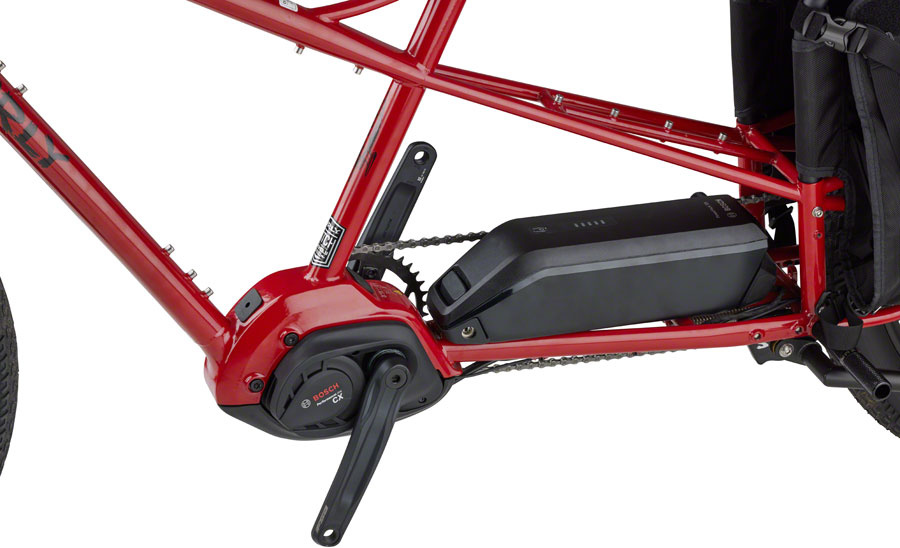

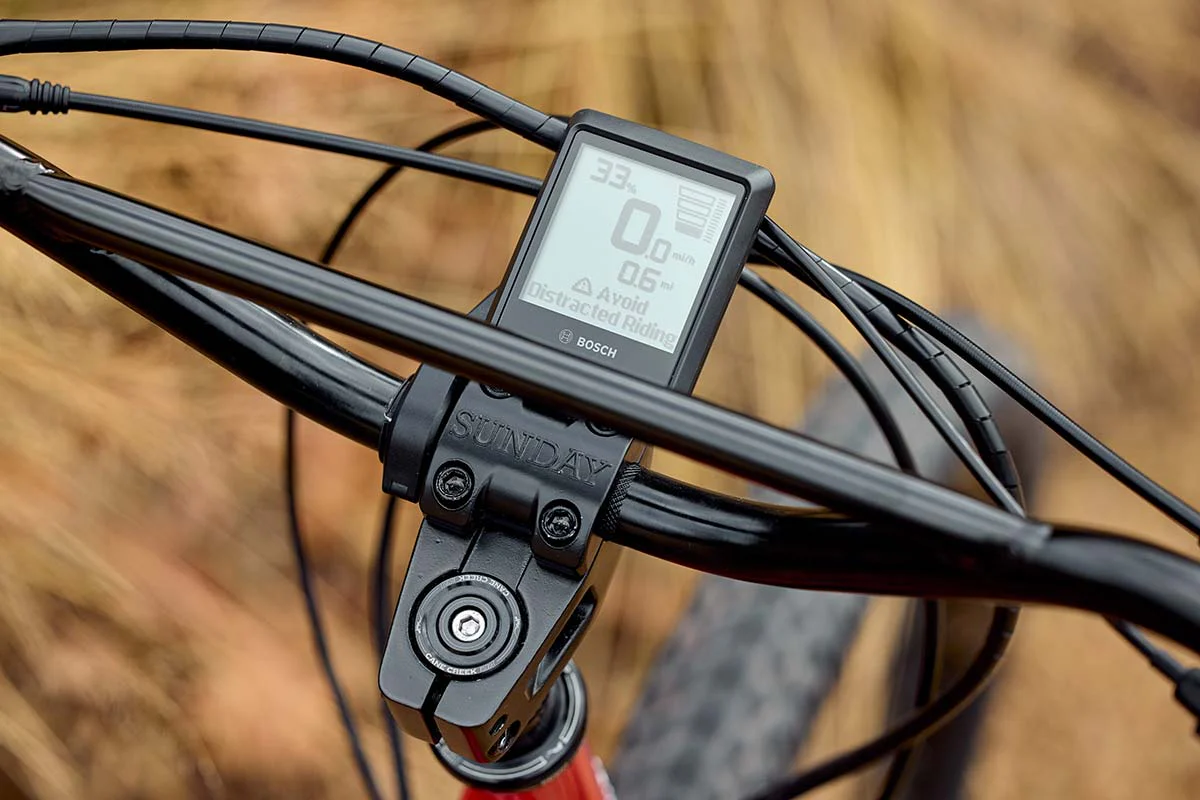

Drive Unit: Bosch Performance Line Cargo with Intuvia 100 Display and LED Remote
E-Bike Classification: Class 1
Drive Type: Mid-Drive
Motor Torque: 85Nm
Max Motor Assist: 340%, 600W
Gross Payload: 400lb max total rider + cargo
Battery Capacity Watt hours: 725Wh
Charge Time: 6 hour
*specs are subject to change without notice
