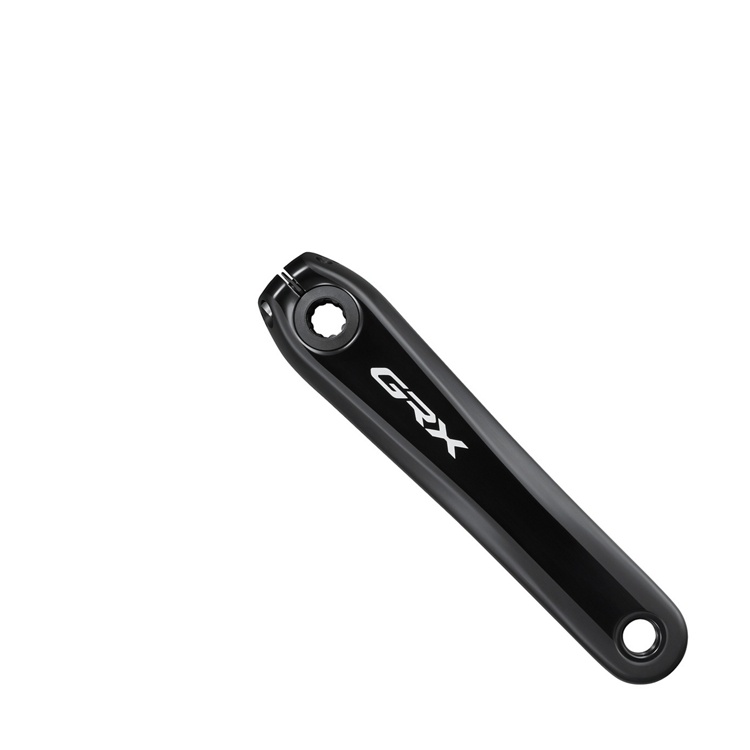

The SHIMANO FC-RX820-1 crank balances weight savings, optimized efficiency and an array of gearing options that cater to the segmented demands of mixed-terrain riding.
By pairing a 10-45T or 10-51T cassette with 40T and 42T chainrings, riders can choose closer gear steps or ultimate range. The FC-RX820-1 comes in 170, 172.5, and 175 mm crank arm lengths, providing an additional level of customization.
BENEFIT
Optimal gearing for mixed-terrain riding
FEATURE
10-45T and 10-51T cassette options serve array of riding styles
BENEFIT
42T and 40T chainrings available
|
Model No
|
|
FC-RX820-1
|
|
Series
|
|
GRX
|
|
Rear Speeds
|
|
12
|
|
Compatible Chain
|
|
HG 12-speed
|
|
Chain Line (mm)
|
|
49.7
|
|
P.C.D. (mm)
|
|
110
|
|
Spider/Gear Arms
|
|
4
|
|
Chainring Combination
|
|
40T, 42T
|
|
Q-Factor (mm)
|
|
151
|
|
Crank Arm Lengths (mm)
|
|
170 ✔ / 172.5 ✔ / 175 ✔
|
|
Optional Chain Guard
|
|
Without chain/bash guard ✔
|
|
HOLLOWTECH II
|
|
✔
|
|
HOLLOWTECH Crank Arm
|
|
✔
|
|
Compatible Bottom Bracket Type
|
|
Outboard ✔
|
|
Recommended Bottom Bracket
|
|
Threaded (SM-BBR60), Press-Fit (SM-BB72)
|
|
Threaded BB Shell Width (mm)
|
|
68 ✔ / 70 ✔
|
|
Crank Fixing Screw Included
|
|
✔
|
|
Average Weight
|
|
644 g (40T), 656 g (42T)
|
