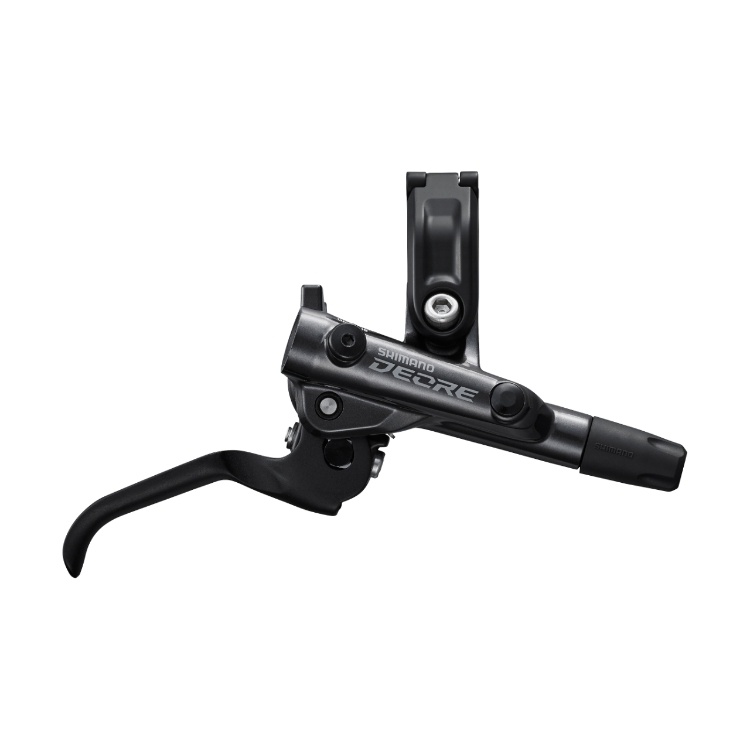

Shimano Deore BL-M6100 Lever / Deore BR-M6120 Caliper Rear Hydro Post Mount
Shimano Deore BL-M6100 Lever / Deore BR-M6120 Caliper Rear Hydro Post Mount
With quicker brake engagement and shorter free stroke, the SHIMANO DEORE BL-M6100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-SPEC EV shift lever offers a wider adjustment range for superior rider tuning. The SHIMANO DEORE M6120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.
| BL-M6100 Lever |
BENEFIT Intuitive and powerful braking |
BR-M6120 Caliper |
BENEFIT Superior modulation gives you the power you need |
||
|
FEATURE Quicker brake engagement with shorter free stroke |
FEATURE Quick piston retraction |
||||
|
FEATURE Rider tunable and action-optimized cockpit |
FEATURE High power 4-piston disc brake caliper |
||||
|
BENEFIT High-performance brake control |
|||||
|
FEATURE Additional contact point for a stiffer brake lever |
|||||
|
BENEFIT 10 deg. rotation angle setting range for I-SPEC EV shifting lever |
|
Specification |
|
Details |
|
Model No |
|
BL-M6100 |
|
Series |
|
DEORE |
|
Brake Type |
|
Hydraulic Disc Brake |
|
Lever Size (Finger) |
|
2 |
|
Brake Hose (Kit) |
|
SM-BH90-SS |
|
Hose Joint |
|
Straight |
|
Brake Hose Color (Kit) |
|
Black |
|
J-Kit Spec (for OEM) |
|
✔ |
|
SERVO WAVE |
|
✔ |
|
Reach Adjust |
|
Tool |
|
Compatible Shifter Mount |
|
Clamp Band, I-SPEC EV |
|
Clamp Band |
|
Open Clamp |
|
Recommended Brake Caliper |
|
BR-M6100, BR-M6120 |
|
Oil |
|
SHIMANO Mineral |
|
Funnel Bleeding |
|
✔ |
|
Specification |
|
Details |
|
Model No |
|
BR-M6120 |
|
Series |
|
DEORE |
|
Brake Type |
|
Hydraulic Disc Brake |
|
Brake Hose (Kit) |
|
SM-BH90-SS |
|
Hose Joint |
|
Straight |
|
Brake Hose Color (Kit) |
|
Black |
|
J-Kit Spec (for OEM) |
|
✔ |
|
Pad (Standard) |
|
D03S-RX Resin (w/o fin) |
|
Pad (Option) |
|
D02S-MX Metal (w/o fin) |
|
Recommended Brake Lever |
|
BL-M6100 |
|
Recommended Disc Rotor |
|
SM-RT54*, SM-RT56*, SM-RT64, SM-RT66 |
|
Compatible Rotor Sizes |
|
140 mm (SS) ✔, 160 mm (S) ✔, |
|
|
|
180 mm (M) ✔, 203 mm (L) ✔, |
|
|
|
220 mm (LL) ✔ |
|
Oil |
|
SHIMANO Mineral |
|
ONE WAY BLEEDING |
|
✔ |
|
Mount Type |
|
Post Type |
|
Piston |
|
4 |
|
Caliper Fixing Screw Tool Size |
|
5 mm |
|
Anti-Loosen Method |
|
Snap Ring |
|
Pad Mount |
|
Split Pin (Stainless Steel) |
|
Remarks |
|
* Only compatible with resin pad |
