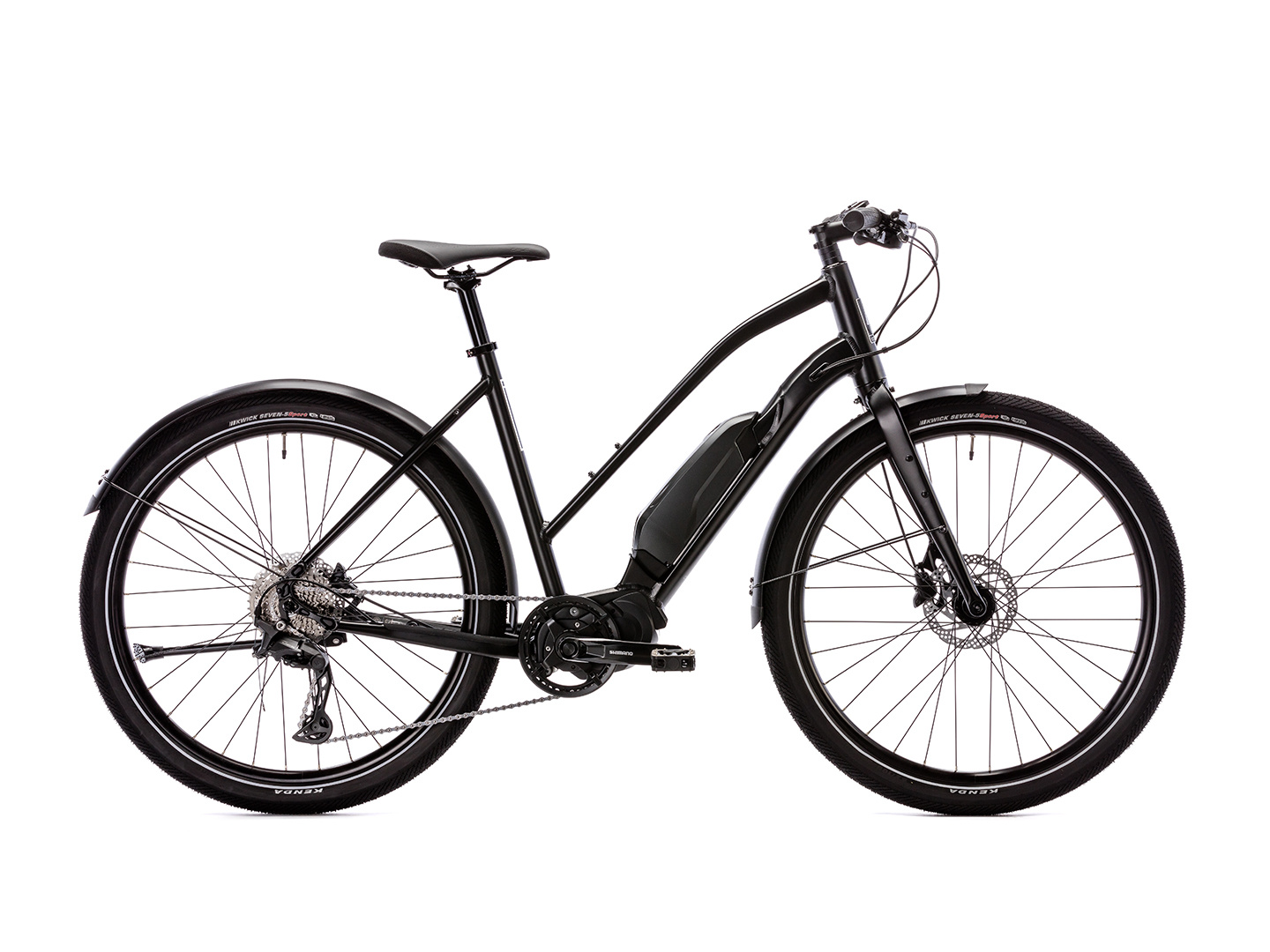

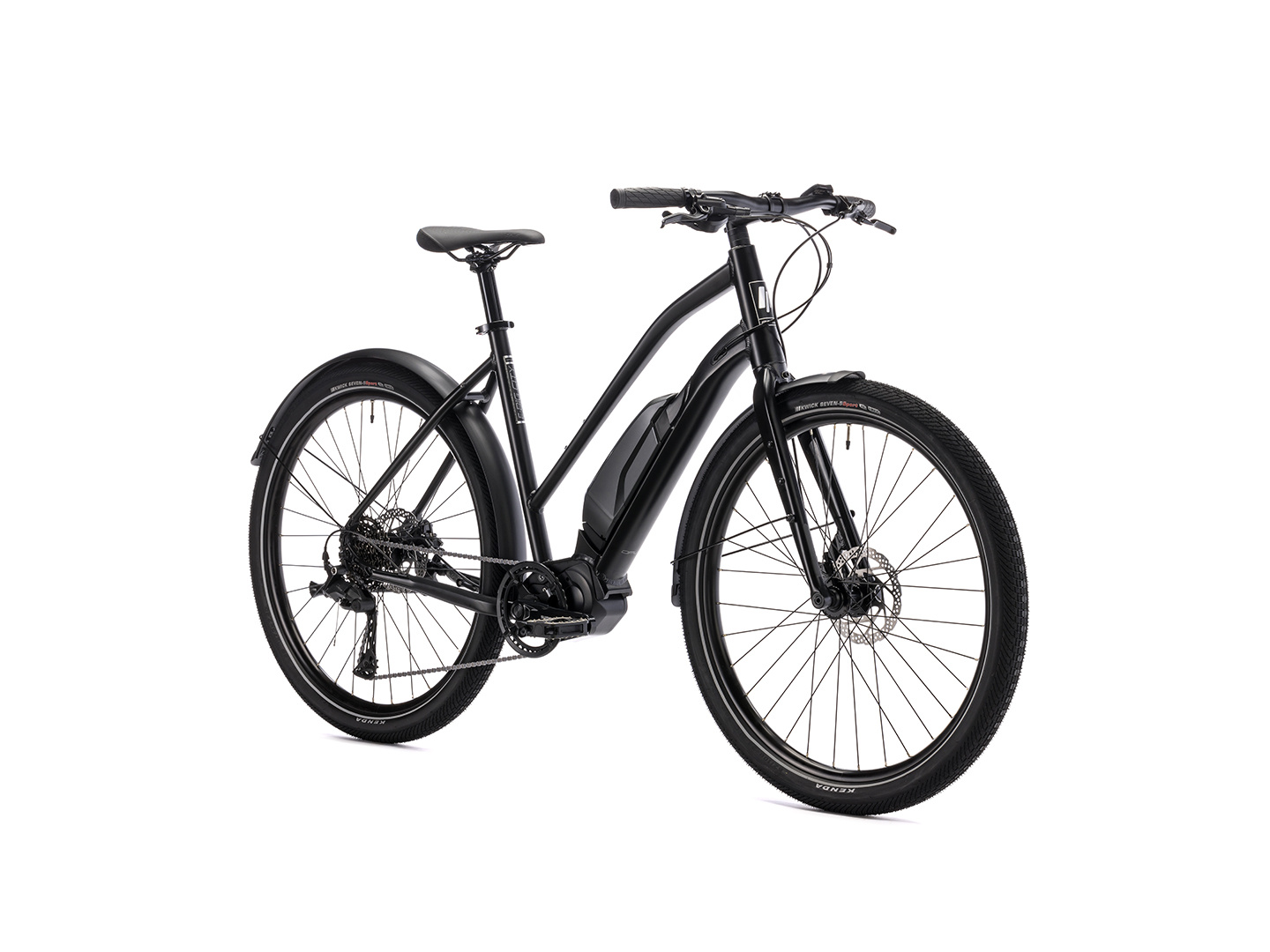

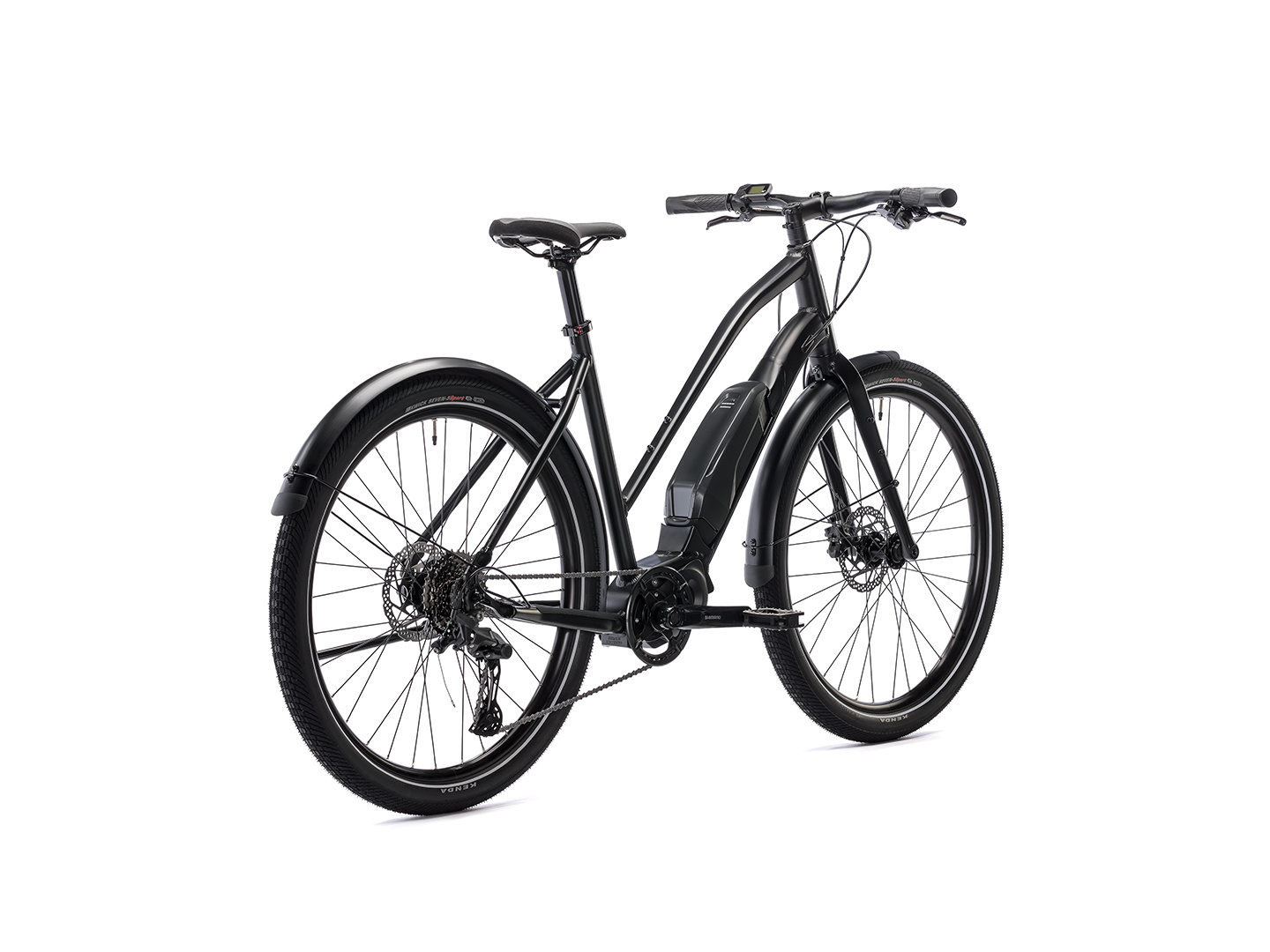

We get it — your big city commute can be a tad brutal. So why not add a little power? Courtesy of our E-Big City Step-Through. The easy-access design gets you going with minimal fuss.
Plus, the big city tires and full fenders handle potholes, construction zones and all types of weather with perfect aplomb. While the Shimano E5000 motor powers you through any situation. Best of all, the E-Big City’s 418Wh battery makes short work of your workday trek. It’s all you need to cut the big city down to size.
|
Fork |
|
Aluminum tapered 1-1/2 to 1-1/8 in |
|
Weight (lb) |
|
43.6 (with battery) |
|
Sizes |
|
S, M, L, |
|
Color(s) |
|
Stealth Black |
|
Shifters |
|
Shimano CUES U4000 9 |
|
Rear Derailleur |
|
Shimano CUES U3020 |
|
Brakes |
|
Shimano BR-MT201 hydraulic disc |
|
Brake Levers |
|
Shimano BL-MT201 |
|
Crank |
|
Shimano FC-E5000 |
|
Chainrings |
|
38 |
|
Bottom Bracket |
|
N/A |
|
Cassette |
|
Shimano 11-36 |
|
Chain |
|
KMC eGlide EPT |
|
Headset |
|
FSA Orbit integrated sealed |
|
Handlebar |
|
Promax 620mm 35º backsweep |
|
Stem |
|
Promax 70/80mm |
|
Grips Tape |
|
Velo ERGO dual density |
|
Saddle |
|
Opus E-City |
|
Seatpost |
|
Promax 31.6 x 350mm |
|
Wheels/Rims |
|
Weinnman U32 TL |
|
Hubs |
|
Formula/Shimano |
|
Tires |
|
Kenda Kwick Seven.5 27.5 x 2.4 |
|
Pedals |
|
FPD NW-247 |
|
Motor |
|
Shimano E-5000 250W 40Nm |
|
Battery |
|
Shimano E-8014 418Wh 36V 11.6Ah |
|
Switch with Display |
|
SC-E5000 Switch with integrated display |
|
|
|
S |
|
M |
|
L |
|
Rider's height (± 5CM) |
|
155 cm |
|
165 cm |
|
178 cm |
|
Rider's height (± 2") |
|
5'1" |
|
5'5" |
|
5'10" |
|
Seat tube (S) |
|
430 mm |
|
470 mm |
|
510 mm |
|
Top tube (TT) |
|
540 mm |
|
582 mm |
|
619 mm |
|
Head tube (HT) |
|
155 mm |
|
180 mm |
|
200 mm |
|
Head angle (HA) |
|
71° |
|
71° |
|
71.5° |
|
Seat angle (SA) |
|
74° |
|
73.5° |
|
73° |
|
Chain stay (CS) |
|
460 mm |
|
460 mm |
|
460 mm |
|
BB drop (D) |
|
65 mm |
|
60 mm |
|
60 mm |
|
Stack (ST) |
|
578 mm |
|
598 mm |
|
623 mm |
|
Reach (RE) |
|
380 mm |
|
405 mm |
|
428 mm |
|
Stand over (SO) |
|
- |
|
- |
|
- |
|
Handlebar width |
|
620 mm |
|
620 mm |
|
620 mm |
|
Stem length |
|
70 mm |
|
70 mm |
|
80 mm |
|
Crank length |
|
170 mm |
|
170 mm |
|
170 mm |
