Versatile, dynamic trail riding performance
Wide, strong rim profile with Black Shield treatment protects your rim against impacts and scratches. New lighter, stiffer Infinity hubs with ultra-reliable ID360 freewheel system for instant acceleration.
More confidence and control on rugged terrain
30mm wide rim is optimized for lower tire pressure, giving you a smoother ride with more traction and control. Triangular rim shape absorbs heavy impacts so you're free to bomb the descents.
Most user-friendly tubeless system
Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tires. Leaving the upper rim bridge intact boosts the stiffness and the durability of the rim.
Rims
- Material: Maxtal
- Material: S6000 Aluminum
- Tire: UST Tubeless and tubetype
- Internal width: 30 mm
- ETRTO size 29": 622x30TC
- Asymmetrical rim design
- Black Shield treatment (protects your rim against impacts and scratches)
- Fore tapeless tubeless technology
- SUP welding technology
Spokes
- Material: steel
- Shape: straight pull, flat, double butted
- Nipples: Fore integrated aluminum
- Count: 24 front and rear
- Lacing: front radial, rear crossed 2, contactless
- Lacing: front and rear crossed 2, contactless

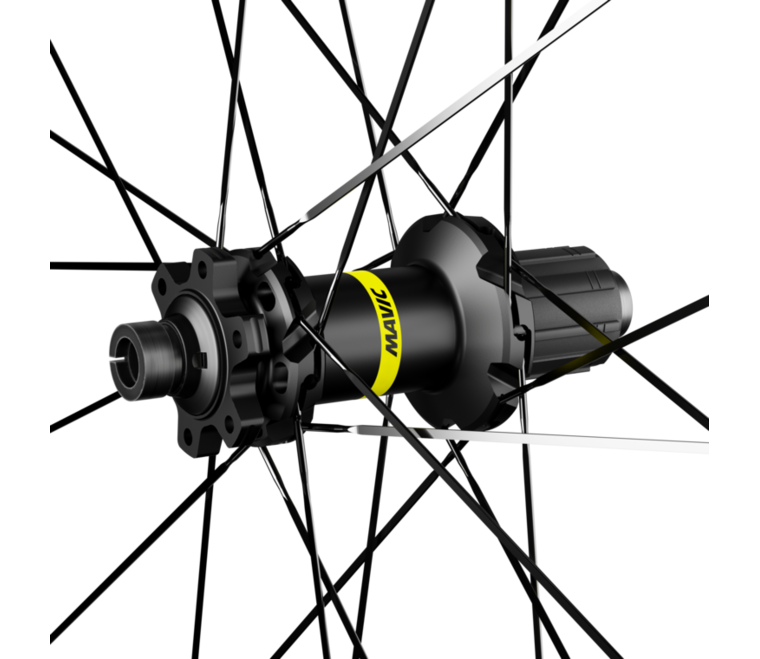

Hubs
- Infinity hubs
- Axles: Front 15X110 Boost ; Rear 12X148 Boost
- Hub available for 6-bolt or Center Lock brake rotors
- Instant Drive 360 freewheel technology
Versions
- Disc standard : 6 Bolts or Center Lock
- Hub width : Boost only (front 110, rear 148)
- Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline
Compatibility
- Freewheel: Shimano HG9, XD or Micro Spline
- Front axle: 15x110 Boost thru axle
- Rear axle: 12x148 Boost thru axle
Compatible Adapters and freewheel bodies
- Boost & Non-Boost : 15mm front hub cap ([V2372501] - Delivered with the wheel)
- Boost : Torque Caps for Center Lock hub (V2374401)
- ID360 Shimano HG9 alloy freewheel body (V3780101)
- ID360 Shimano Micro Spline alloy freewheel body (V3990101)
- ID360 Sram XD freewheel body (V3740101)
Delivered with
- 2 replacement spokes with each wheel
- UST valve and accessories
- Multifonction adjustment wrench (delivered with rear wheel)
Intended use
- ASTM CATEGORY 4 : ENDURO AND TRAIL RIDING
- For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included
- Minimum and maximum allowed tyre width: see indication on wheel
- Recommended tire sizes: 60mm to 76mm (2.35" to 3.0")
- Maximum tyre pressure: 2.95bar/43PSI with a 52mm tyre - 1.55bar/22PSI with a 125mm tyre
