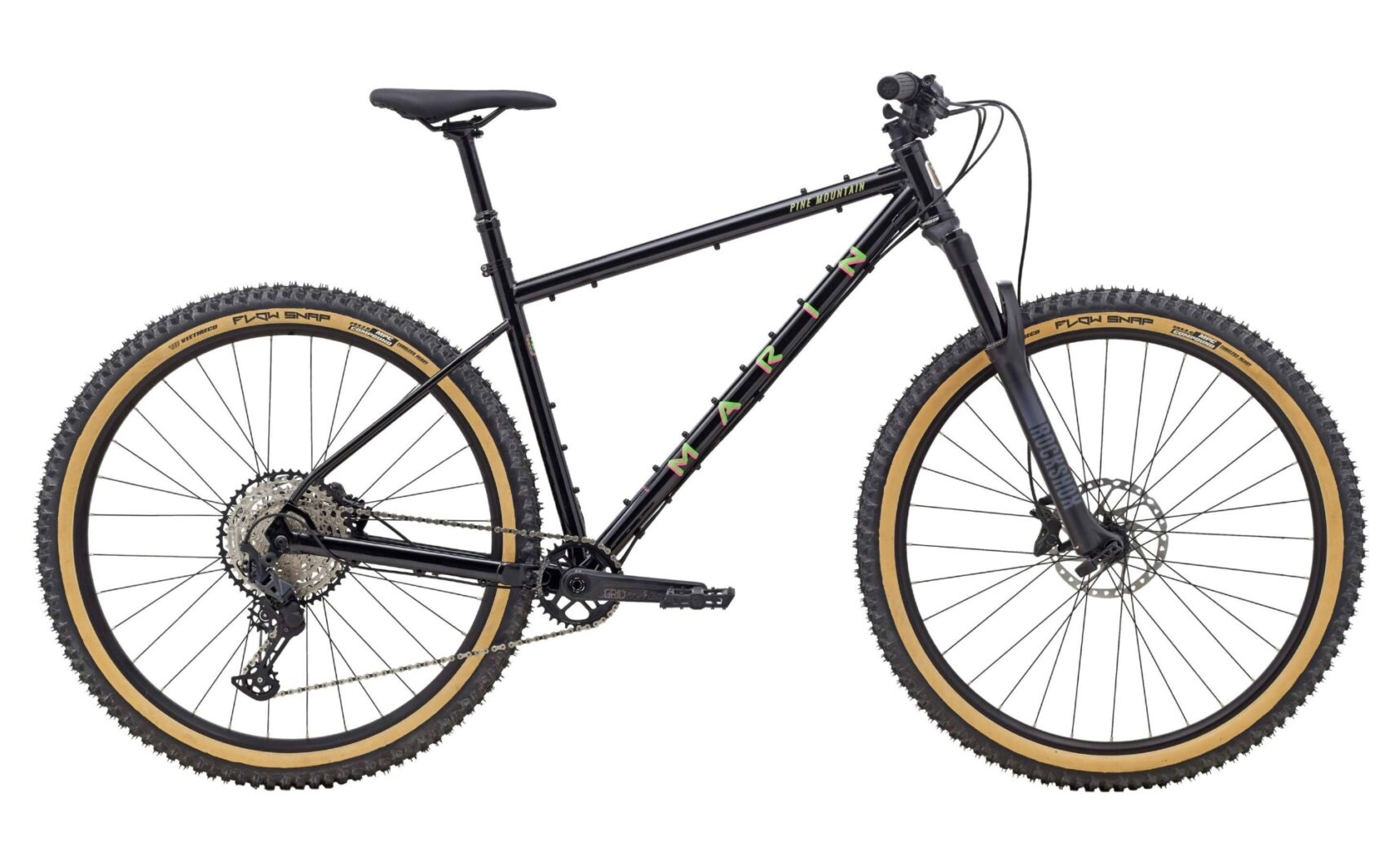

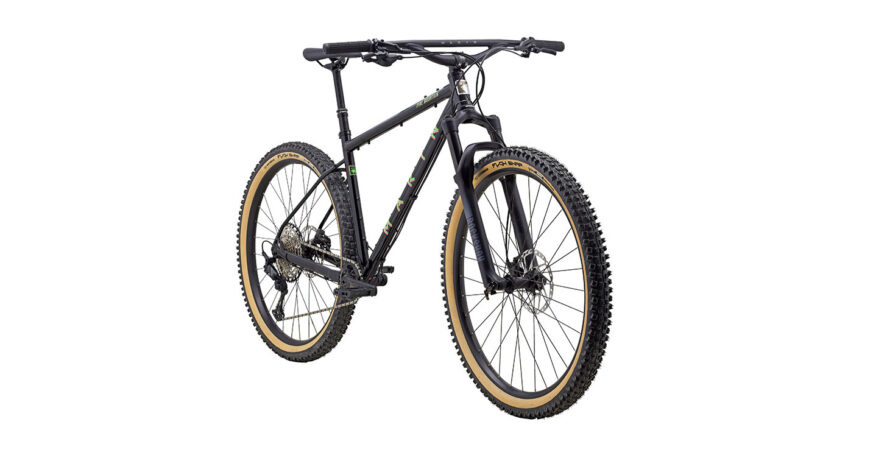

Marin Pine Mountain 2 is a high-end, high-performance steel bike packing/ mountain bike hardtail. Why not do it all?
The Marin Pine Mountain 2 is a high-end, high-performance steel bikepacking mountain bike hardtail. Series 3 CrMo version of the frame upgrades to higher-grade CrMo for a lively, zippier ride and has a bolt-through rear axle for a little added stiffness where it matters. It’s built up with a RockShox FS 35 fork, Shimano SLX 12-speed drivetrain, Vee Tire Flow Snap 2.6” tires, powerful Shimano brakes and a super-useful dropper post for added comfort and speed. Last but not least, you’ve got our much-loved Marin Bedroll handlebar.
|
Frame |
Series 3 Double Butted and Heat Treated CrMo, 29" Wheels, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts |
|
Front Suspension |
RockShox 35 Gold RL, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset |
|
Wheels |
Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible |
|
Hubs |
Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Disc, 32H / Forged Aluminum, 148x12mm, Centerlock Disc, 32H |
|
Tires |
Vee Tire Co. Flow Snap, 29x2.6", Folding Bead, Tubeless Ready |
|
Rear Derailleur |
Shimano SLX, RD7100, 12-Speed |
|
Front Derailleur |
N/A |
|
Shifters |
Shimano SLX, SL7100, 12-Speed |
|
Crankset |
FSA Grid, Modular 1x, 32T Direct Mount MegaTooth Chainring |
|
Bottom Bracket |
FSA Outboard Cartridge Bearings |
|
Chain |
KMC X12 |
|
Cassette |
SunRace, 12-Speed, MicroSpline, 10-51T |
|
Brakes |
TRP Slate EVO, 4-Piston, Hydraulic, 180mm Roto |
|
Stem |
Marin 3D Forged Alloy, 35mm |
|
Handlebars |
Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep |
|
Grips |
Marin Bear Paw Locking |
|
Headset |
FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
|
Seatpost |
TranzX Dropper Post, YSP23 w/ 1x Remote, Size S 150mm Travel, All Other Sizes: 170mm Travel, 30.9mm |
|
Saddle |
Marin Pine Mountain Trail |
*All Specifications subject to change without notice*
| S | M | L | XL | ||
|---|---|---|---|---|---|
| STACK | 629 | 633.4 | 638 | 642.6 | |
| REACH | 420 | 450 | 475 | 505 | |
| HEADTUBE ANGLE | 66° | 66° | 66° | 66° | |
| HEADTUBE LENGTH | 95 | 100 | 105 | 110 | |
| SEATTUBE ANGLE | 75° | 75° | 75° | 75° | |
| SEATTUBE LENGTH | 381 | 431 | 482 | 520 | |
| TOPTUBE EFFECTIVE | 588.5 | 620 | 646 | 677 | |
| BB HEIGHT | 318 | 318 | 318 | 318 | |
| BB DROP | 60 | 60 | 60 | 60 | |
| CHAINSTAY | 430 | 430 | 430 | 430 | |
| WHEELBASE | 1145 | 1177 | 1204 | 1236 | |
| STANDOVER HEIGHT | 697.55 | 742.45 | 786.98 | 818.91 | |
| FORK OFFSET | 44 | 44 | 44 | 44 | |
| SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 | |
| HANDLEBAR WIDTH | 780 | 780 | 780 | 780 | |
| STEM LENGTH | 35 | 35 | 35 | 35 | |
| CRANK LENGTH | 170 | 175 | 175 | 175 |
All lengths in millimeters
