Kona

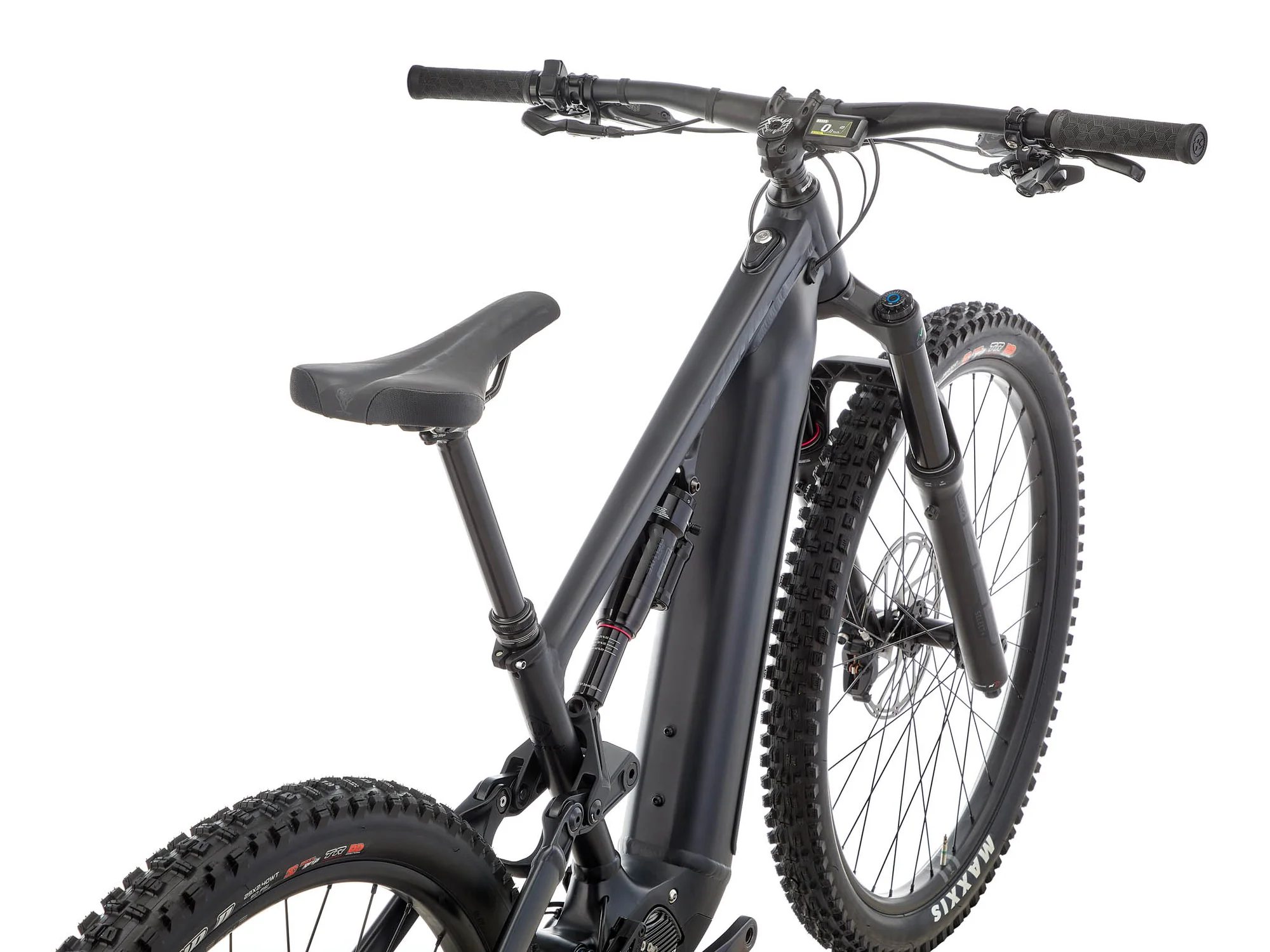

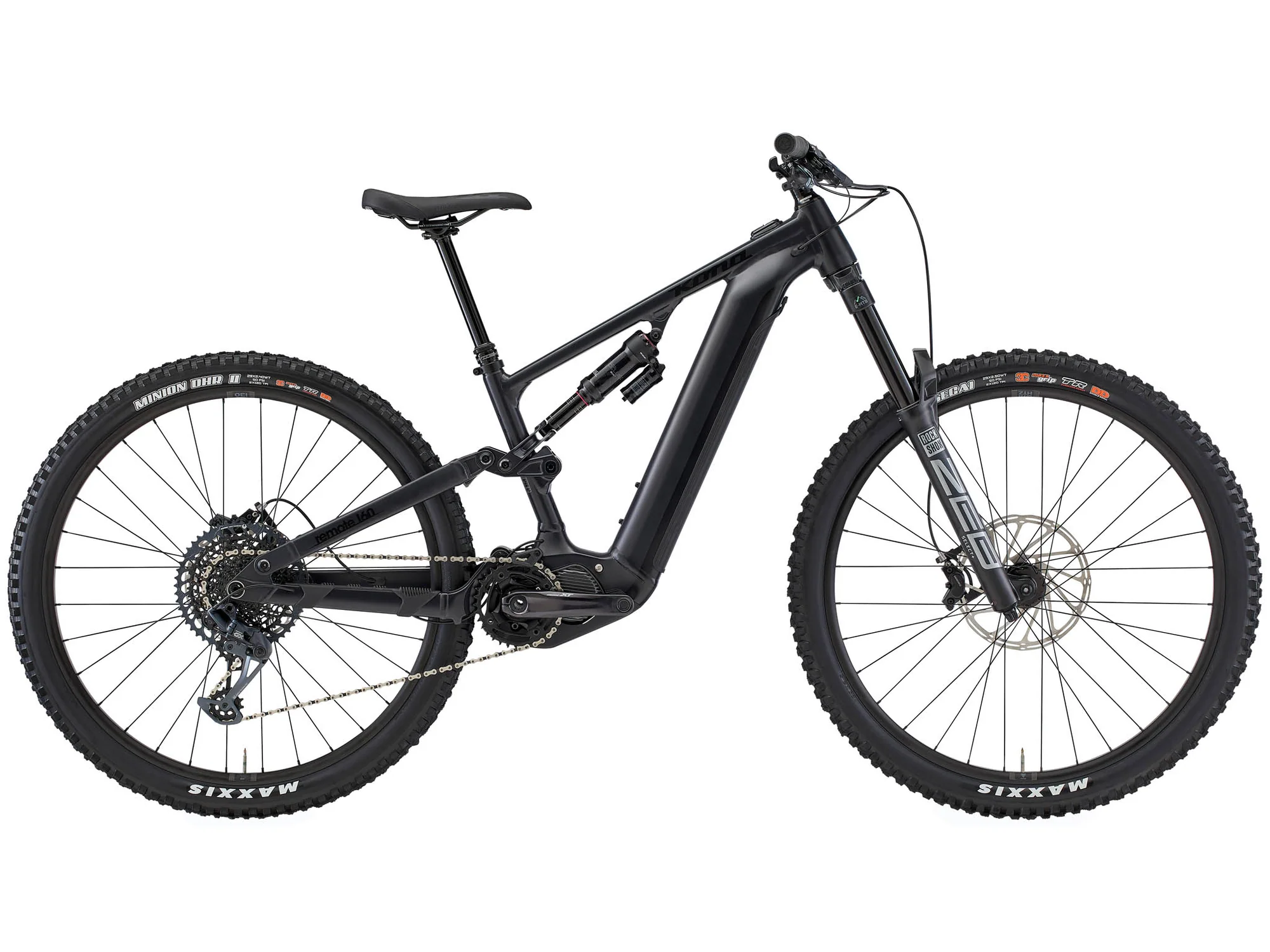

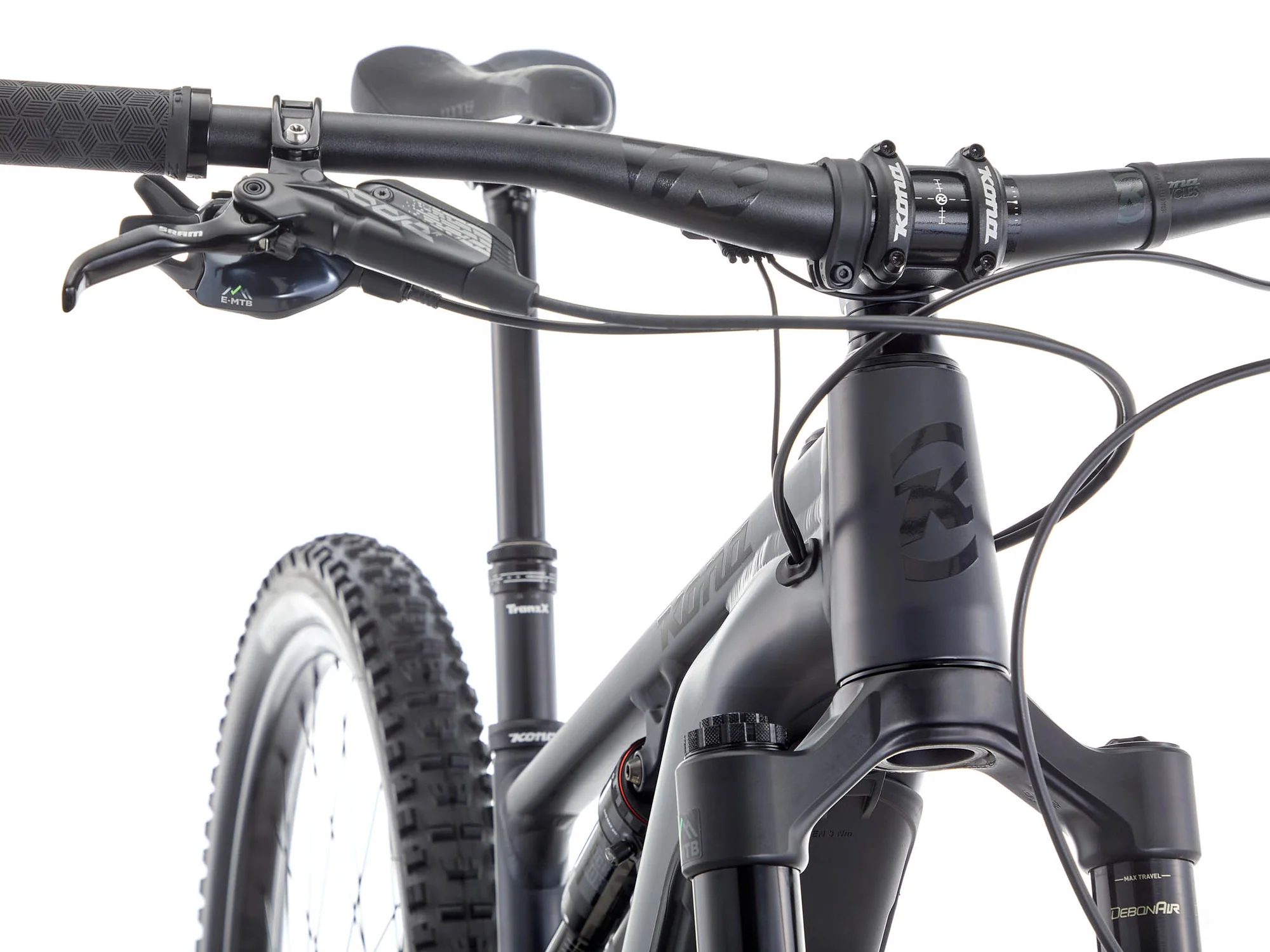

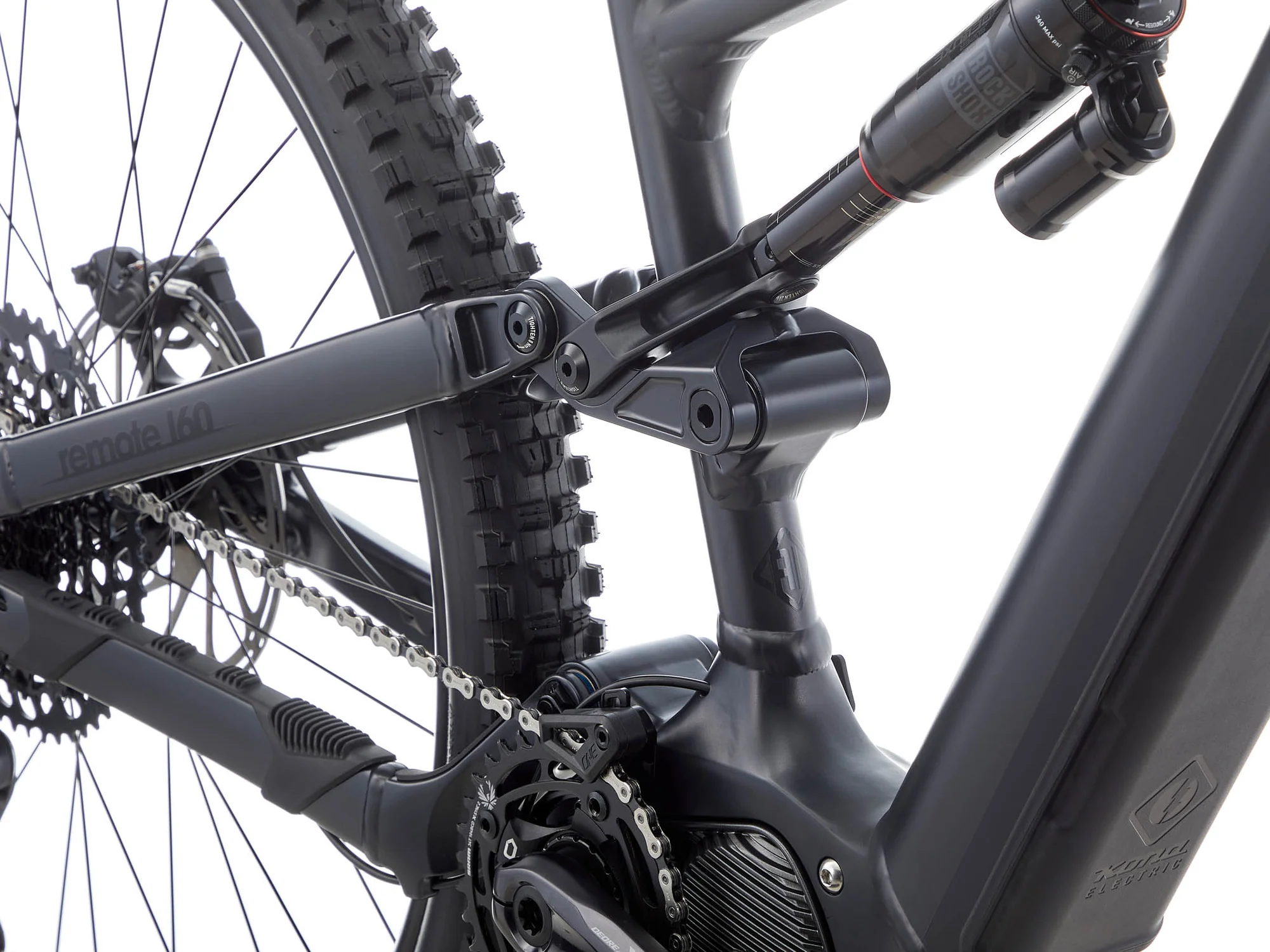

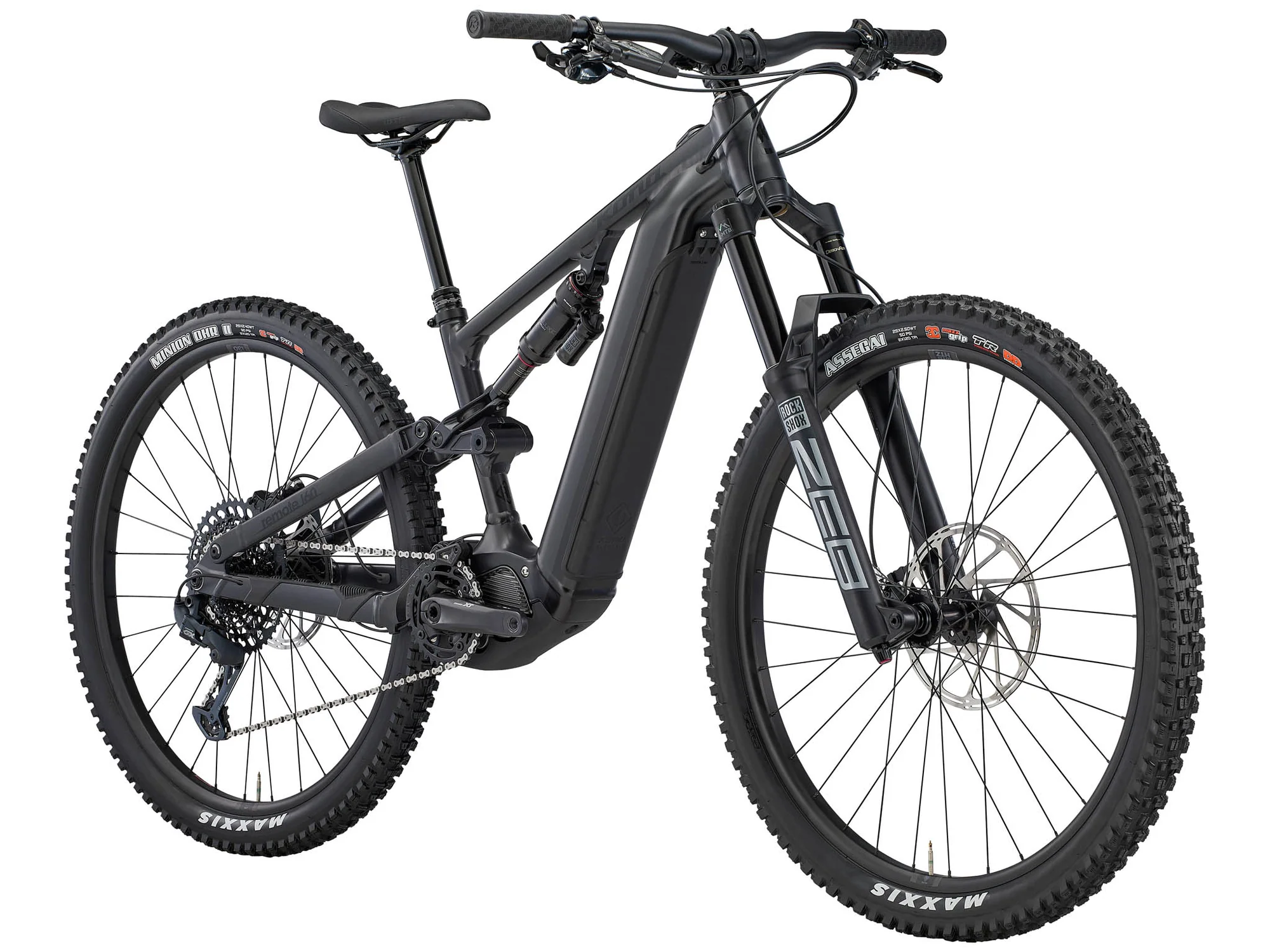

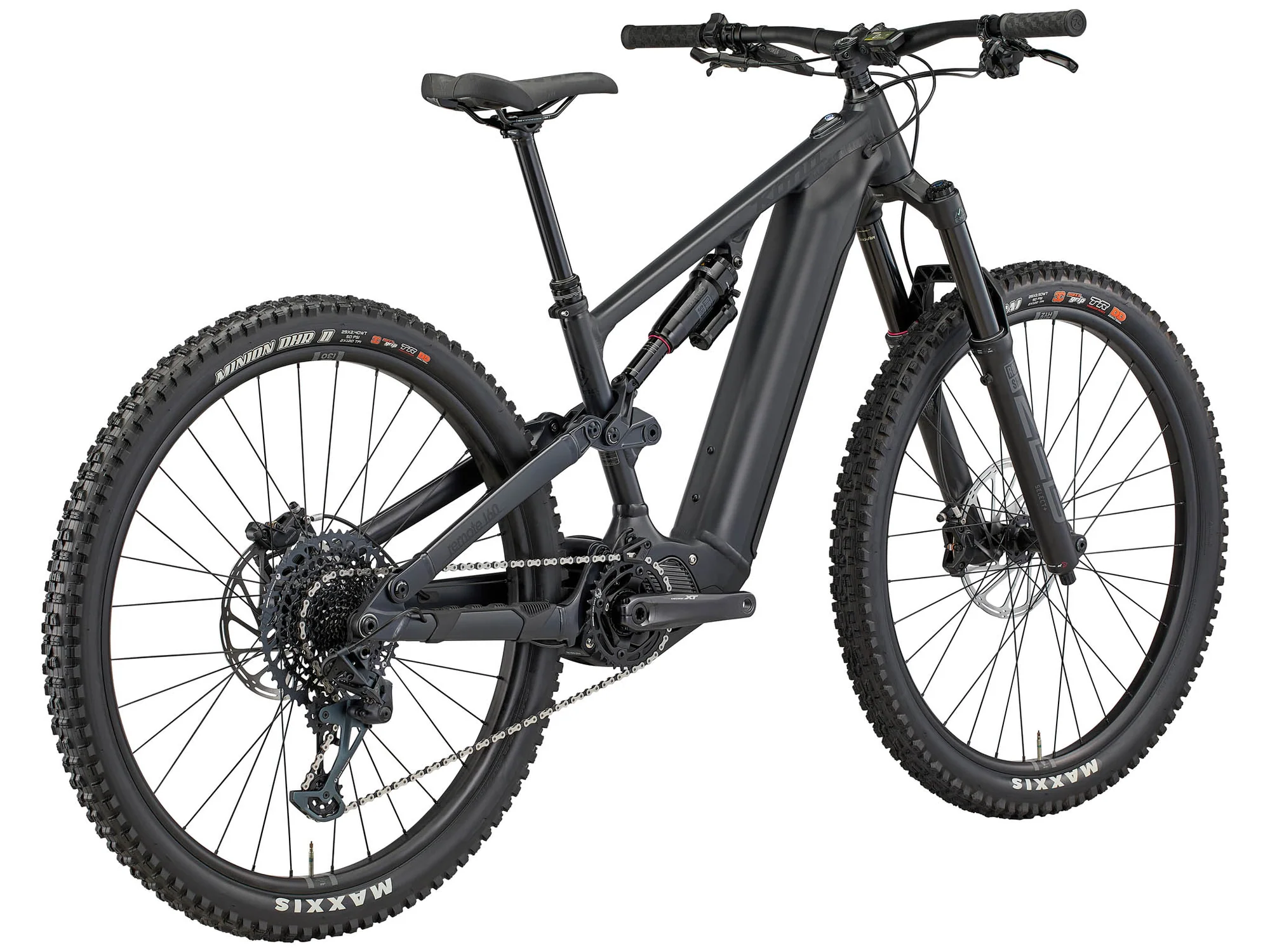

Kona Remote 160 DL

$6,999.00
Call or email for special order

This is the Kona Remote 160 DL. 160mm of terrain flattening travel at either end.

Description

“You know what would be really cool? If you took the Process 153 and turned it into an e-bike.” Done!

We combined the awesome off-road capabilities of the legendary Process 153 with the renowned durability and user-friendliness of Shimano’s EP8 motor, packed a beefy 612Wh battery in the downtube, and created a ride-every-trail, go anywhere, do everything, mountain devouring machine. This is the Remote 160 DL. 160mm of terrain flattening travel at either end, suspension kinematics tuned to rail everywhere from mellow trails to jump lines with more speed than ever before. It’s as familiar and easy to get along with as the 153, is right at home on any kind of dirt from green trails with the kids to big days full of black diamonds, and the addition of a little voltage makes it ready to chow down on singletrack for as long as your legs can turn the pedals.

SPECIFICATIONS

Frame Material   Kona 6061 Aluminum Butted 160mm Travel
Sizes   S, M, L, XL
Rear Shock   RockShox Super Deluxe Select
Fork   RockShox Zeb Select + Charger RC 2.1 DebonAir 160mm Tapered 110 Spacing
Crankarms   Shimano Deore XT
Chainrings   34t X-Sync Eagle
B/B   n/a
Pedals   n/a
Chain   SRAM GX-Eagle
Cassette   SRAM GX-Eagle 10-52t 12spd
Chainguide   OneUp Steps
F/D   n/a
R/D   SRAM GX
Shifters   SRAM GX Single Click
Brake Calipers   SRAM Code R
Front Brake Rotor   SRAM Centerline 220mm
Rear Brake Rotor   SRAM Centerline 200mm
Brake Levers   SRAM Code R
Headset   FSA No.57E
Handlebar   Kona XC/BC 35
Stem   Kona XC/BC 35
Seatpost   TranzX Dropper +RAD Internal 31.6mm
Seat Clamp   Kona Clamp
Grips   Kona Key Grip
Saddle   WTB Volt
Front Hub   Formula 110x15mm
Rear Hub   Formula 148x12mm
Spokes   Stainless Black 14g
Rims   WTB HTZ i30 TCS 2.0
Front Tire   Maxxis Assegai DD TR 3C 29x2.5" WT
Rear Tire   Maxxis Minion DHR II DD TR 3C 29x2.4" WT
DriveUnit   Shimano EP800 20MPH
Battery   Darfon 612Wh
Display   Shimano SC-EM800 Display
Charger   Darfon Smart 4A
BatteryLock   n/a
Paint Color   Matte Lead Powder w/ Gloss Black Decals
Extras   n/a

All specifications are subject to change without notice.

GEOMETRY

    Size   S   M   L   XL
1   ST Length   380   380   420   450
2   TT Length   576   601   630   669
3   Reach   430   455   480   515
4   Stack   630   630   640   650
5   Standover   760   760   765   770
6   HT Angle   64.5   64.5   64.5   64.5
7   HT Length   112   112   123   135
8   ST Angle   77   77   76.8   76.7
9   CS Length   440   440   440   440
10   BB Drop   25   25   25   25
11   BB Height   350   350   350   350
12   Wheelbase   1207   1232   1261   1301
13   Front Center   768   793   823   862
14   Fork Length   576   576   576   576
15   Fork Offset   44   44   44   44

Bike Geometry
