Kona

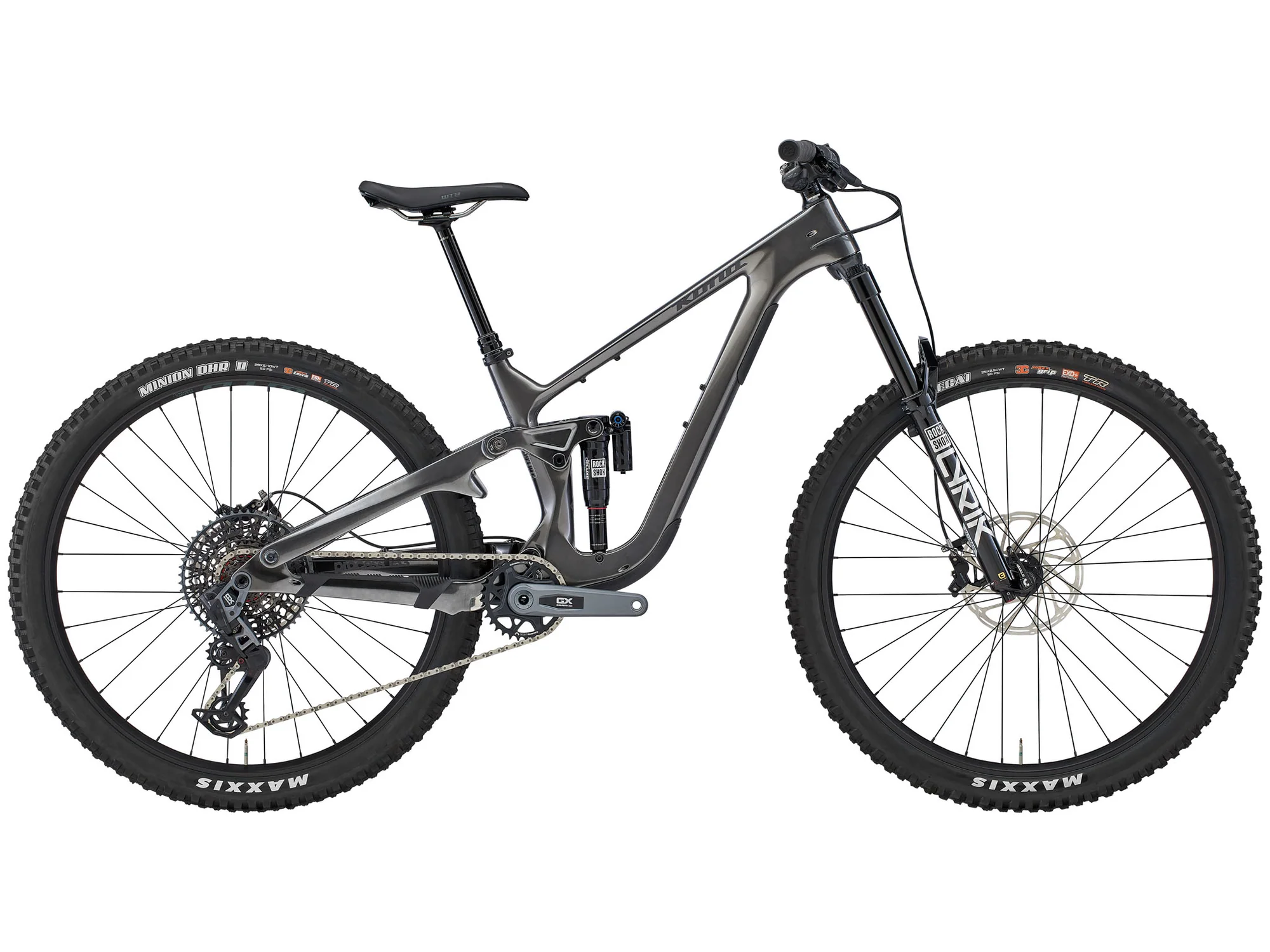

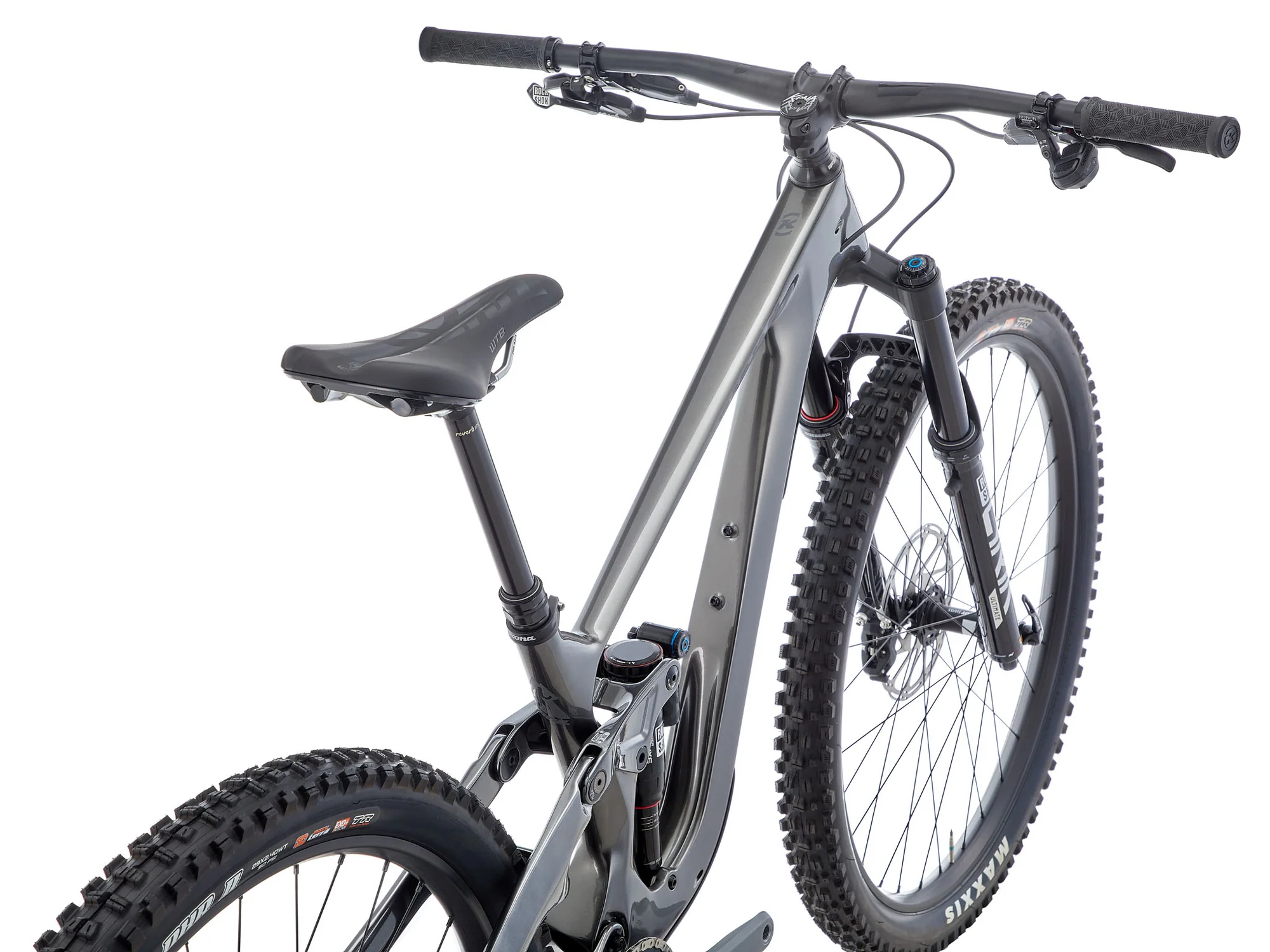

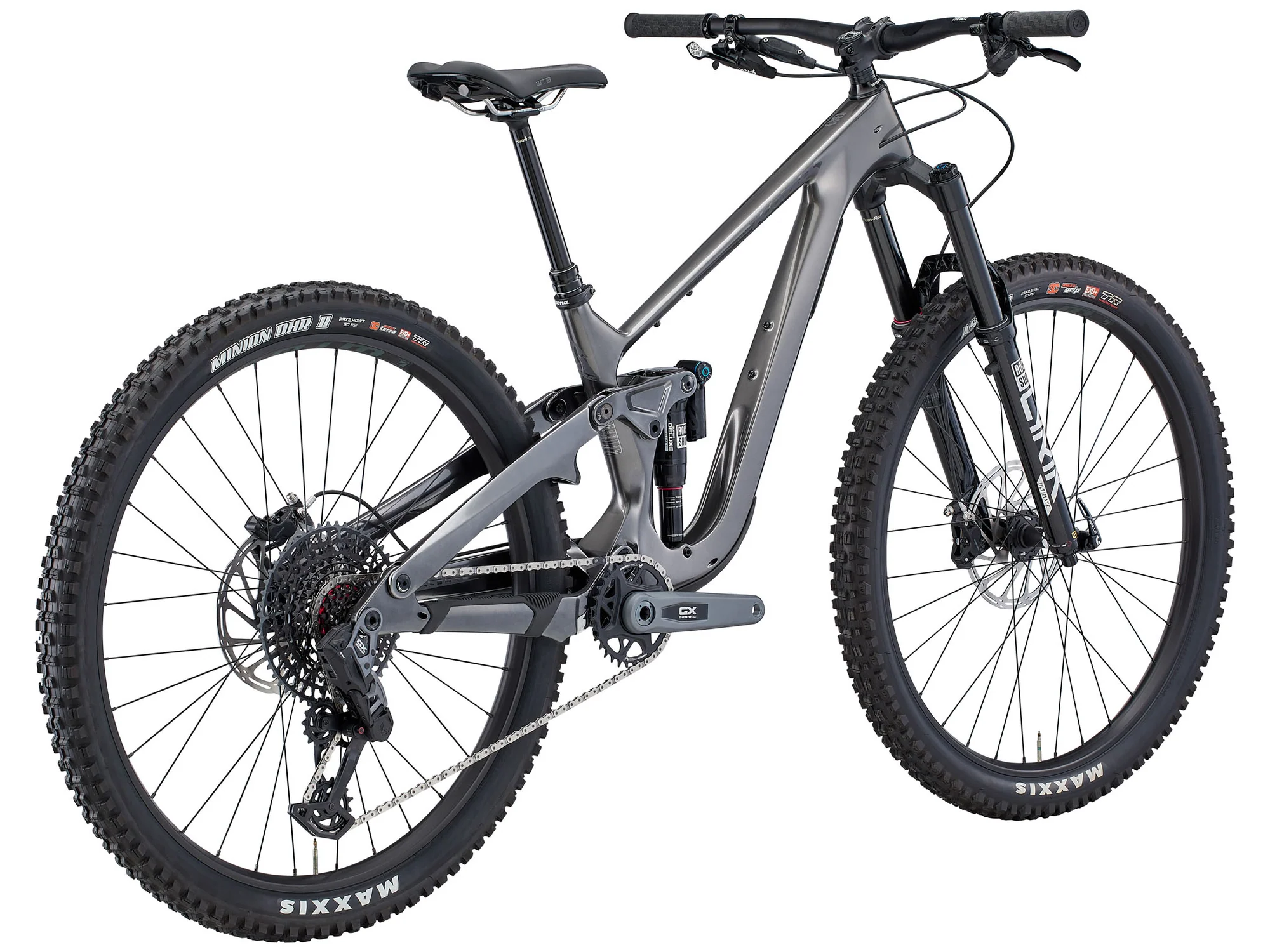

Kona Process G3 153 CR/DL GX T-Type

$7,699.00
Call or email for special order

Find your limits. Then demolish them with the Kona Process G3 153 CR DL GX T-Type.

Description

Combining uncompromising performance with legendary toughness, this is the bike that the likes of Caleb Holonko rely on to define the edge of what’s possible.

Top tier, super-tunable RockShox suspension is paired with the uncluttered precision of SRAM’s AXS drivetrain for a surefooted magic carpet ride regardless of terrain or conditions. DT Swiss hubs keep the wheels rolling smooth for the long haul. Flip-chip convenience lets you choose whether those smooth rolling wheels are 29ers or a mullet setup. Bombproof carbon fiber construction ensures peace of mind and provides deep dropper extension for maximum steezability. Find your limits. Then demolish them.

SPECIFICATIONS

BUILD   PROCESS 153 CR/DL - GX Eagle Transmission
Frame Material   Kona DH Carbon 153mm Travel
Sizes   S, M, L, XL

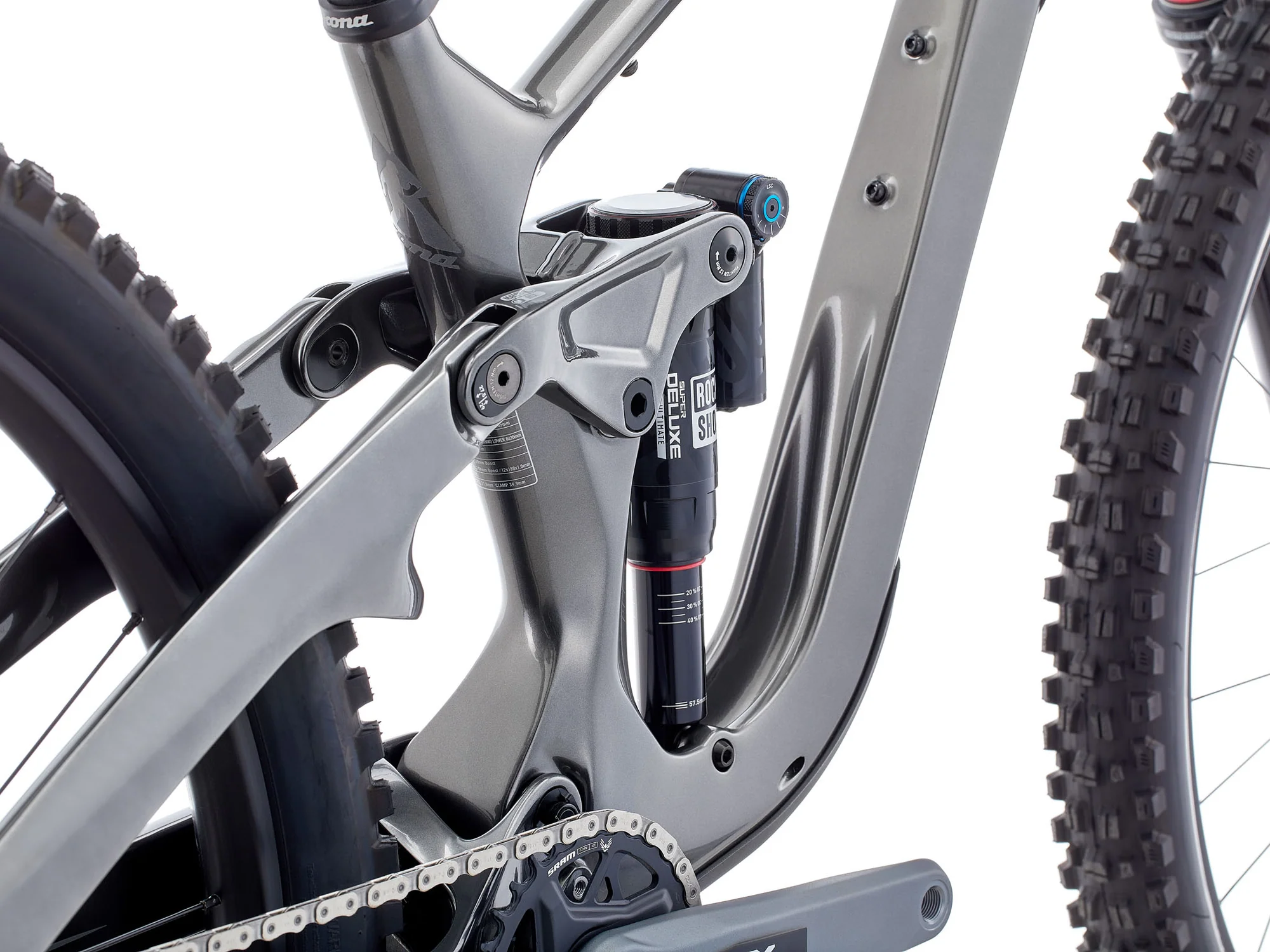

Rear Shock   RockShox Super Deluxe Ultimate Trunnion
Fork   RockShox Lyrik Ultimate RC2 Charger 3 DebonAir+ w/ButterCups 160mm Tapered 110mm Spacing
Crankarms   SRAM GX Eagle Transmission
Chainrings   32t
B/B   SRAM DUB PF92 Wide
Pedals   n/a
Chain   SRAM GX Eagle Transmission
Cassette   SRAM GX Eagle Transmission 10-52 12spd
Chainguide   n/a
F/D   n/a
R/D   SRAM GX Eagle Transmission
Shifters   SRAM AXS Pod Controller
Brake Calipers   SRAM G2 RSC
Front Brake Rotor   SRAM Centerline 200mm
Rear Brake Rotor   SRAM Centerline 200mm
Brake Levers   SRAM G2 RSC
Headset   FSA Orbit 1.5 E ZS
Handlebar   Kona XC/BC 35
Stem   Kona XC/BC 35
Seatpost   Rock Shox Reverb w/1x Remote Lever 31.6mm
Seat Clamp   Kona Clamp
Grips   Kona Key Grip
Saddle   WTB Volt
Front Hub   DT Swiss 350 110x15mm
Rear Hub   DT Swiss 350 148x12mm
Spokes   Stainless Black 14g
Rims   WTB KOM Trail i30 TCS
Front Tire   Maxxis Assegai EXO+ TR 3C 29x2.5" WT
Rear Tire   Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Paint Color   Gloss Faux Dark Chrome w/ Satin Lead Decals

All specifications are subject to change without notice.

GEOMETRY

    Size   S   M   L   XL
1   ST Length   380   380   420   450
2   TT Length   574   599   628   667
3   Reach   430   455   480   515
4   Stack   615   615   625   635
5   Standover   690   700   710   720
6   HT Angle   64.5   64.5   64.5   64.5
7   HT Length   94   94   105   116
8   ST Angle   76.9   76.9   76.7   76.6
9   CS Length   435   435   435   435
10   BB Drop   20   30   30   30
11   BB Height   345   345   345   345
12   Wheelbase   1190   1215   1244   1284
13   Front Center   756   781   811   851
14   Fork Length   571   571   571   571
15   Fork Offset   44   44   44   44
