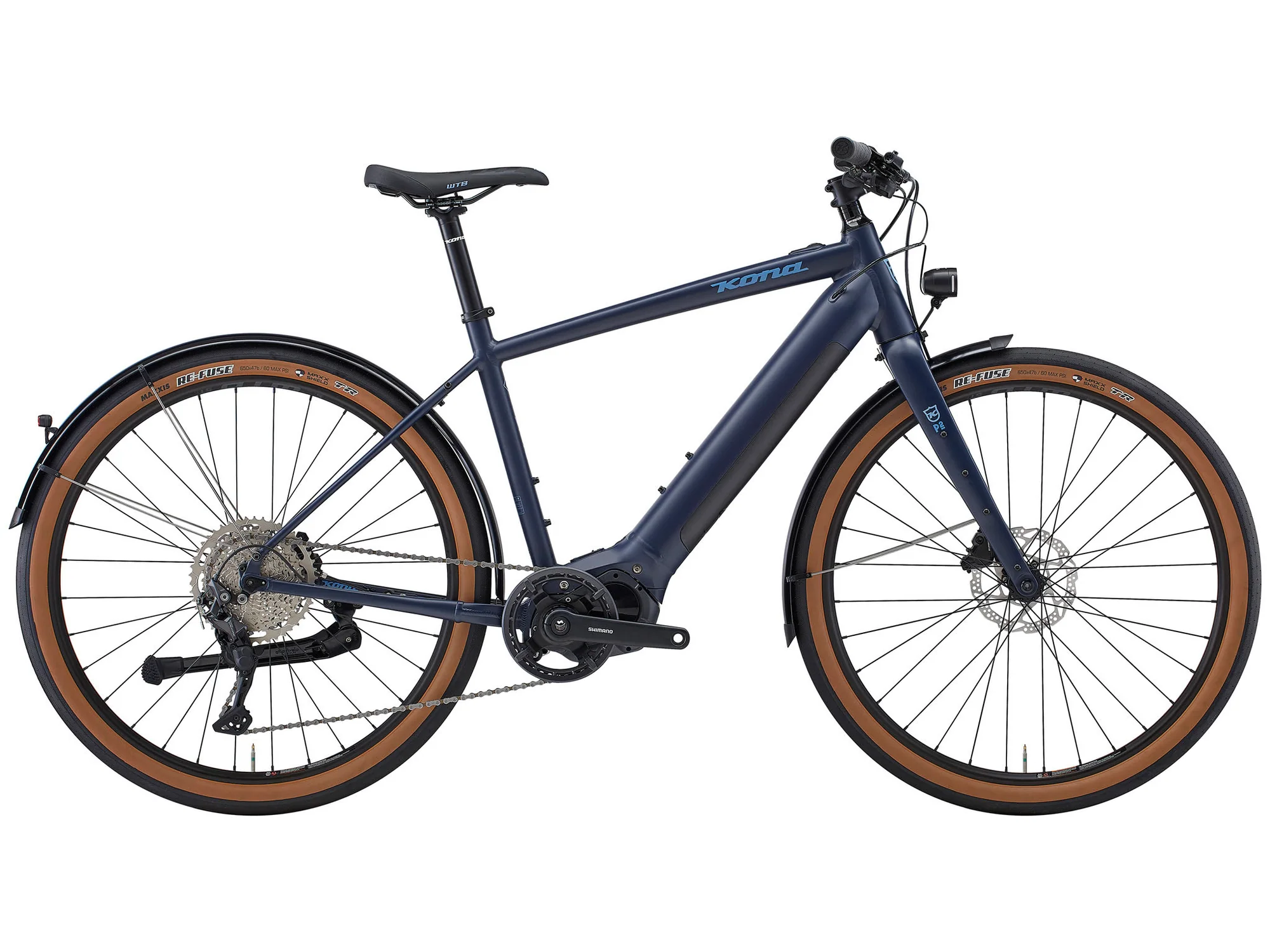

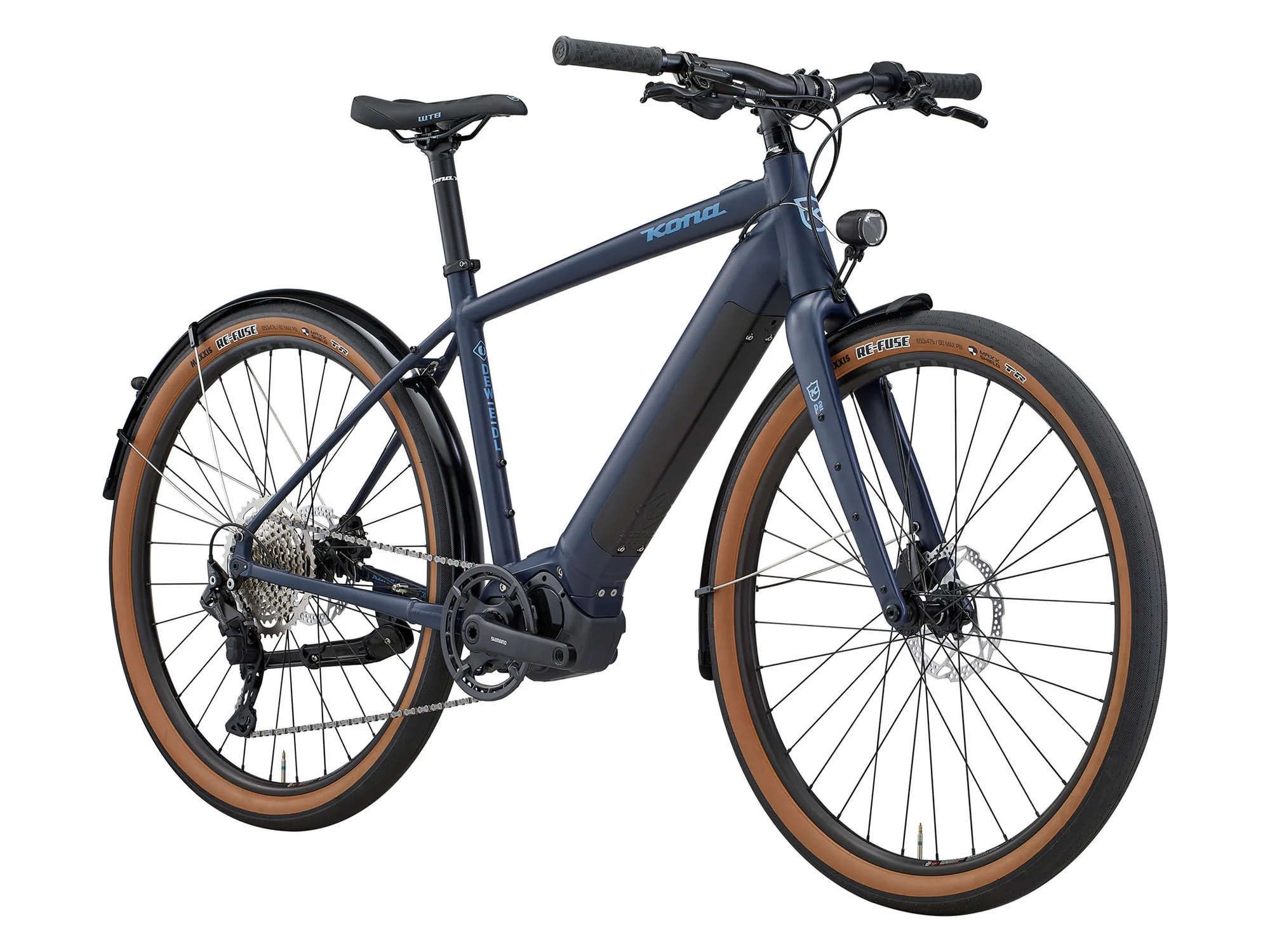

Commuters have been flocking to the Kona Dew-E DL for its stylish design and because it’s a blast to ride.
Commuters have been flocking to the Dew-E DL for its stylish design and because it’s a blast to ride. An aluminum frame features a Kona Rove Verso Full Carbon Flat Mount Disc fork. A 10-speed drivetrain works in perfect harmony with the low-profile Shimano motor and integrated battery. Sturdy aluminum fenders and lights keep you dry and visible throughout your ride. Powerful hydraulic disc brakes and 160mm rotors stop on a dime, even in wet conditions and puncture-resistant 650x47c tires keep the road rolling by smoothly whether you’re cruising on pavement, or a dirt path. This is the electric commuter you’ve been searching for!
Frame Material | Kona 6061 Aluminum Butted |
Sizes | S, M, L, XL |
Rear Shock | n/a |
Fork | Kona Rove Verso Full Carbon Flat Mount Disc |
Crankarms | Shimano E6100 |
Chainrings | 38t |
B/B | n/a |
Pedals | n/a |
Chain | Shimano HG54 |
Cassette | Shimano Deore 11-46t 10spd |
Chainguide | n/a |
F/D | n/a |
R/D | Shimano Deore |
Shifters | Shimano Deore |
Brake Calipers | Shimano Hydraulic |
Front Brake Rotor | Shimano RT54 160mm (centerlock) |
Rear Brake Rotor | Shimano RT54 160mm (centerlock) |
Brake Levers | Shimano MT201 Hydraulic |
Headset | FSA No.57BP |
Handlebar | Kona Aluminum Riser |
Stem | Kona Control |
Seatpost | Kona Commuter 31.6mm |
Seat Clamp | Kona Clamp |
Grips | Kona Key Grip |
Saddle | WTB Volt |
Front Hub | Shimano Tiagra 100x12mm |
Rear Hub | Shimano Tiagra 142x12mm |
Spokes | Stainless 14g |
Rims | WTB ST i23 TCS 2.0 |
Front Tire | WTB Horizon TCS w/ Puncture Protection 650x47c |
Rear Tire | WTB Horizon TCS w/ Puncture Protection 650x47c |
DriveUnit | Shimano E6100 20MPH |
Battery | Shimano 504Wh |
Display | Shimano SC-E7000 Display |
Charger | Shimano STEPS 2A |
BatteryLock | n/a |
Paint Color | Matte Midnight w/ Blue-Grey Decals |
Extras | Fenders, Busch & Müller Front & Rear Light, Kickstand |
* All specifications are subject to change without notice
Geometry |
Size S |
Size M |
Size L |
Size XL |
ST Length |
420 mm |
470 mm |
520 mm |
580 mm |
TT Length |
551 mm |
596 mm |
635 mm |
678 mm |
Reach |
404 mm |
430 mm |
446 mm |
471 mm |
Stack |
548 mm |
579 mm |
617 mm |
636 mm |
Standover |
700 mm |
741 mm |
786 mm |
830 mm |
HT Angle |
70.0° |
70.0° |
70.0° |
70.0° |
HT Length |
135 mm |
168 mm |
208 mm |
228 mm |
ST Angle |
75.0° |
74.0° |
73.0° |
72.0° |
CS Length |
450 mm |
450 mm |
450 mm |
450 mm |
BB Drop |
60 mm |
60 mm |
60 mm |
60 mm |
BB Height |
282 mm |
282 mm |
282 mm |
282 mm |
Wheelbase |
1081 mm |
1118 mm |
1148 mm |
1180 mm |
Front Center |
638 mm |
675 mm |
705 mm |
736 mm |
Fork Length |
400 mm |
400 mm |
400 mm |
400 mm |
Fork Offset |
50 mm |
50 mm |
50 mm |
50 mm |
