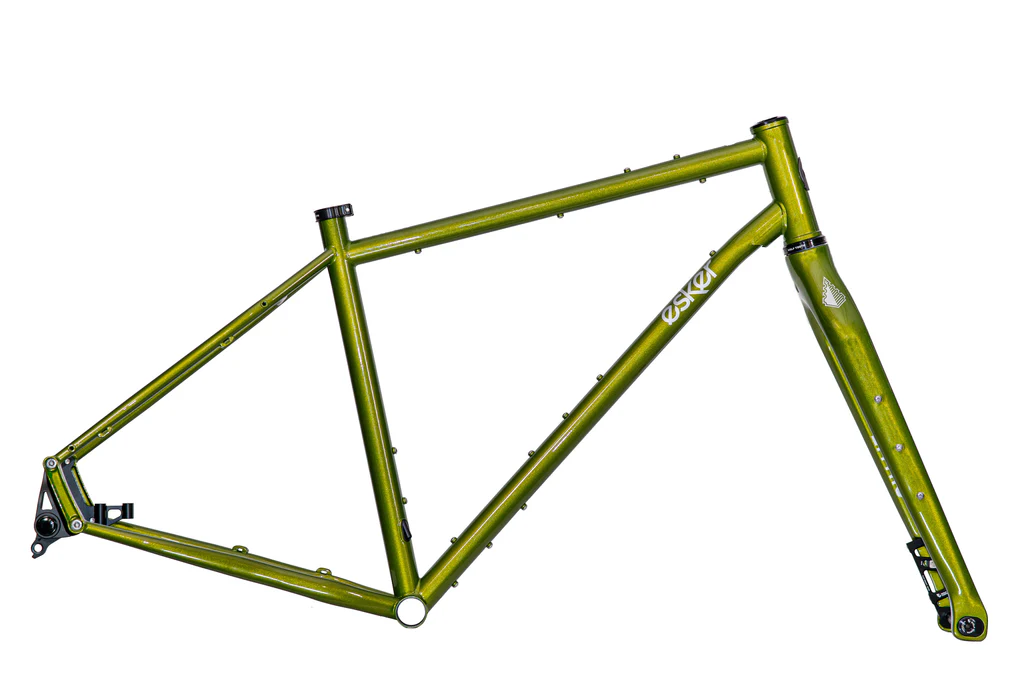

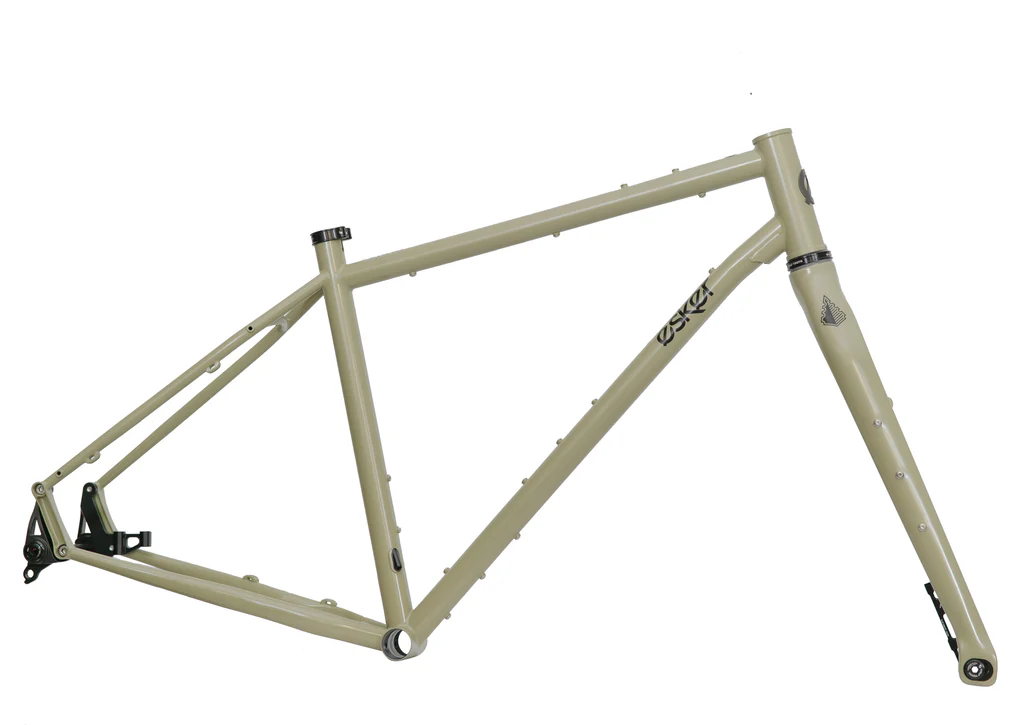

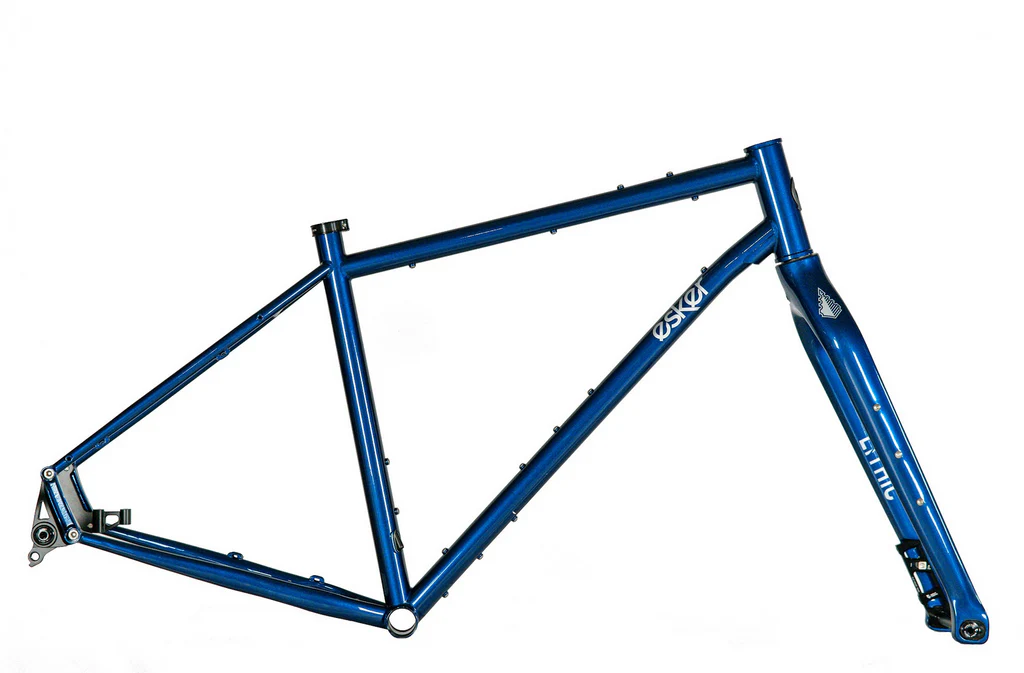

The Esker Lorax is equipped with everything you would expect from an Esker: External cable routing, a threaded bottom bracket, and 44mm head tube.
The Lorax is equipped with everything you would expect from an Esker: External cable routing, a threaded bottom bracket, and 44mm head tube. The Lorax also has 22 attachment points for all of your adventure accessories. This also includes top tube, rack, and fender mounts built into the frame.
29" wheels for 2.2-2.6" tires
Drop bar Mountain Touring Bike - Made for 495mm length rigid forks, and can accomodate up to 120mm suspension fork
4130 Chromoly frame - custom Quad-butted tapered, seamless DOM tubing
Portage Dropout - for flexibility to many different uses. Lorax includes Fixed position UDH dropouts with Flat Mount brake
Lotsa mounts - Top Tube Bag, 2 sets of 3-pack mounts and full Rack and Fender mounting points mean you can carry just about anything
|
|
|
S1/SM |
|
S2/MD |
|
S3/LG |
|
S4/XL |
|

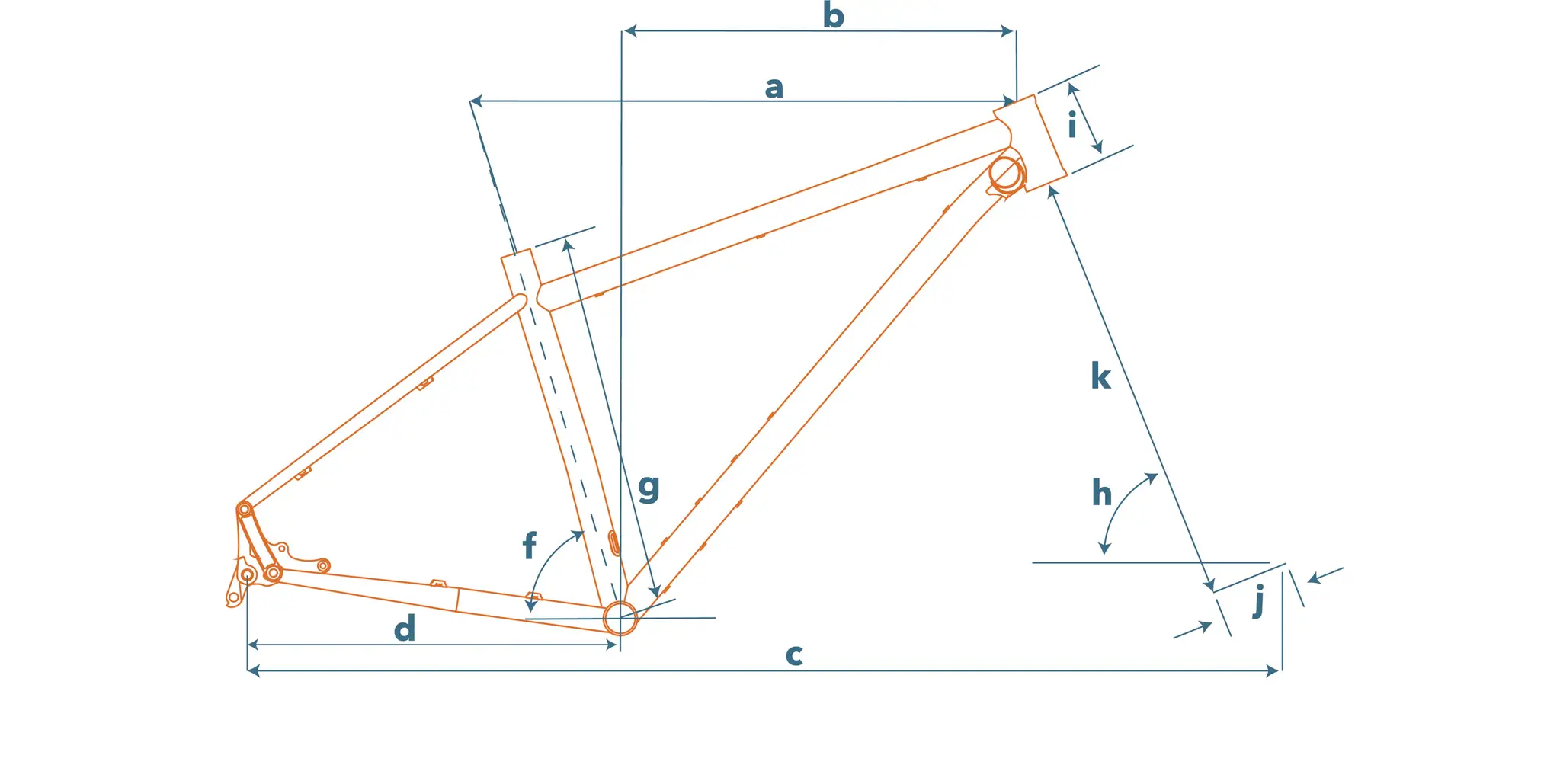

A - Effective TT Length |
|
537 mm |
|
560 mm |
|
587 mm |
|
610 mm |
|
B - Reach |
|
365 mm |
|
380 mm |
|
390 mm |
|
405 mm |
|
C - Wheelbase |
|
1075 mm |
|
1094 mm |
|
1118 mm |
|
1143 mm |
|
D - CS Length |
|
445 mm |
|
445 mm |
|
445 mm |
|
445 mm |
|
F - Effective ST Angle |
|
74° |
|
73.5° |
|
73° |
|
73° |
|
G - ST Length |
|
400 mm |
|
460 mm |
|
510 mm |
|
560 mm |
|
H - HT Angle |
|
68° |
|
68° |
|
68° |
|
68° |
|
I - HT Length |
|
90 mm |
|
100 mm |
|
138 mm |
|
165 mm |
|
K - Fork Length |
|
495 mm |
|
495 mm |
|
495 mm |
|
495 mm |
|
BB Drop |
|
68 mm |
|
68 mm |
|
68 mm |
|
68 mm |
|
Stack |
|
600 mm |
|
610 mm |
|
645 mm |
|
670 mm |
|
Rider Height |
|
5'0"-5'7" |
|
5'3"-5'10" |
|
5'6"-6'1" |
|
5'9"-6'4" |
|
Max Seatpost Insertion |
|
195 mm |
|
190 mm |
|
240 mm |
|
290 mm |
