Bombtrack

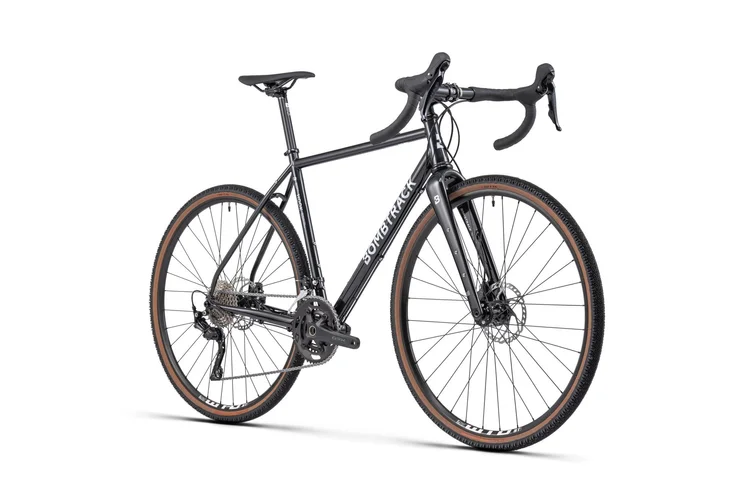

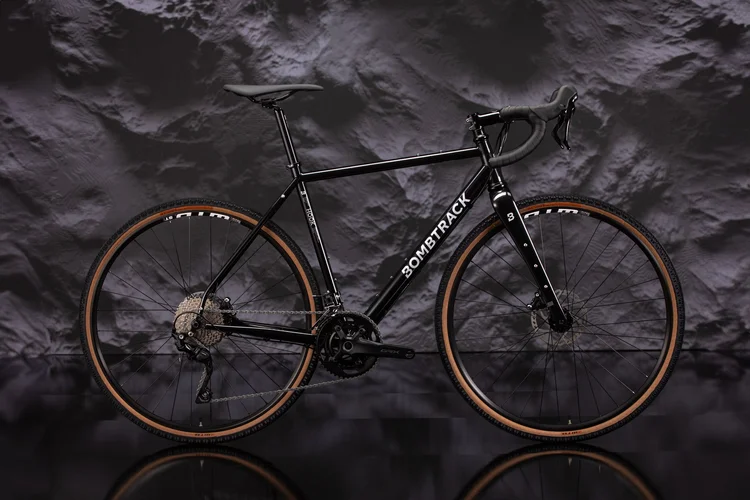

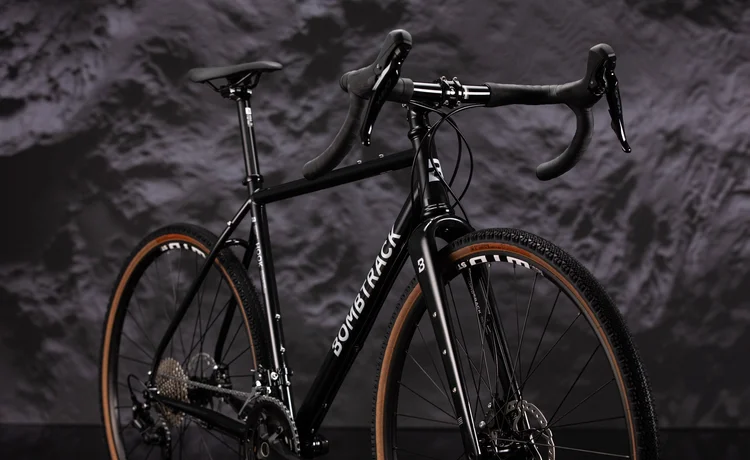

Bombtrack Hook

$3,399.15 $3,999.00
In stock (1)

"The Hook might have been designed as a gravel racer, but that doesn’t stop it also being a perfect tourer, commuter, or even summer-season cross bike."

Description

Naturally, Hook is something special, being built from double-butted Columbus Cromor tubing, with a tapered headtube and a T47 bottom bracket. The Small size feature 650B wheels, M - XL have 700C options and both run WTB tubeless rims and tires on sealed hubs. A Shimano GRX groupset with a subcompact 46 / 30T crankset, combined with an 11 - 36T cassette helps to keep you spinning up and over the hills, and GRX 400 calipers deliver powerful braking on the descents. The frameset is bedecked with mounts for every scenario, including a top tube bag, triple cage mounts and bottle mount options, as well as internal dynamo routing on the full carbon fork.

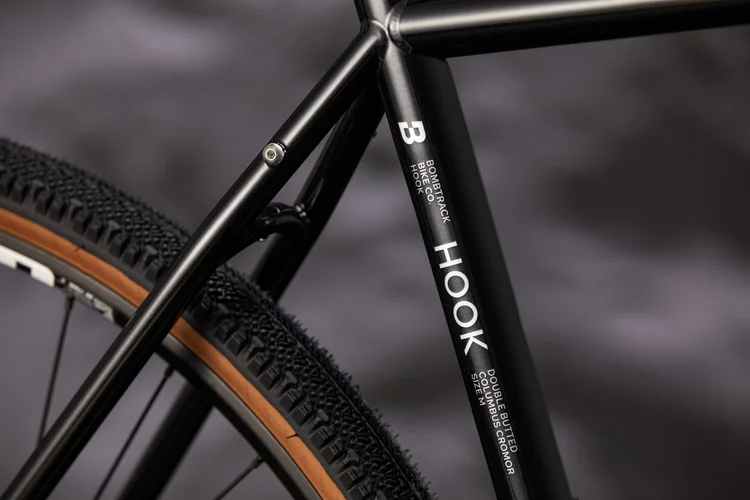

Frame Columbus Cromor double butted, TA dropout, rack / fender mounts, 86.5 mm T47 BB shell

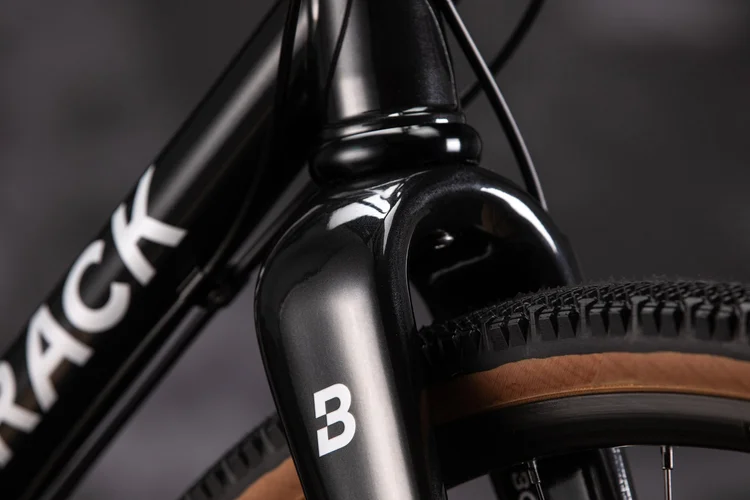

Fork Full carbon, TA, 1.1/2'' - 1.1/8'', triple cage mounts (can double as fender mounts),internal hub dynamo cable routing

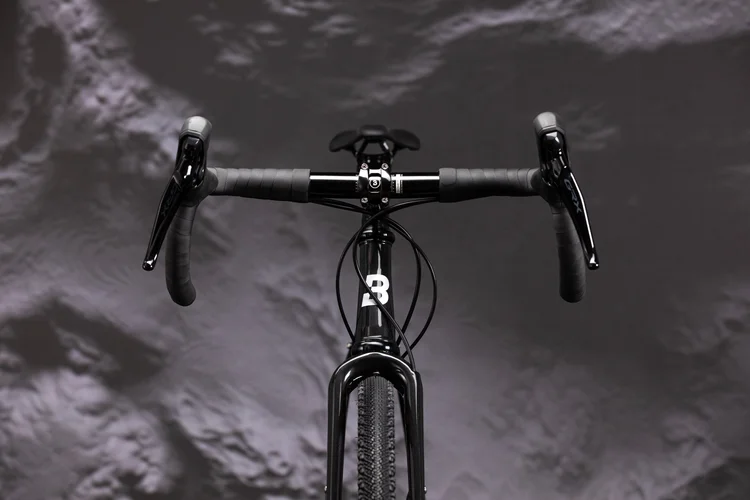

Handlebar Bombtrack CX-10 drop bar, 31.8 mm, 10° flare
Grips Bombtrack Escape bar tape
Stem Bombtrack Roam forged aluminium stem, -7°
Headset Sealed external aheadset, 1.1/2'' - 1.1/8''
Levers Shimano GRX ST-RX400 STI Hydraulic
Shifter Shimano GRX ST-RX400 STI 2 x 10
Brakes Shimano GRX BR-RX400 hydraulic disc brakes
Rotor Shimano SM-RT66 160 mm rotors
Crankset Shimano GRX FC-RX600-10, 24 mm spindle
BB Bombtrack T47 internal sealed BB for 24 mm spindle
Pedals -
Chain KMC X10 EPT Anti Rust chain, 1/2'' x 11/128'', XS - S 112L, M - XL 114L
Chainring Shimano GRX, 46 T / 30 T
Cassette Shimano CS-HG50 10-speed, 11 - 36 T
Front derailleur Shimano GRX FD-RX400-F

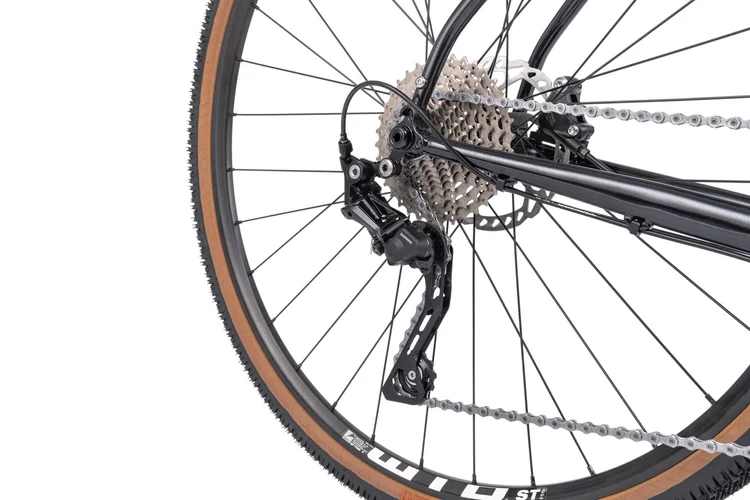

Rear derailleur Shimano GRX RD-RX400, clutch

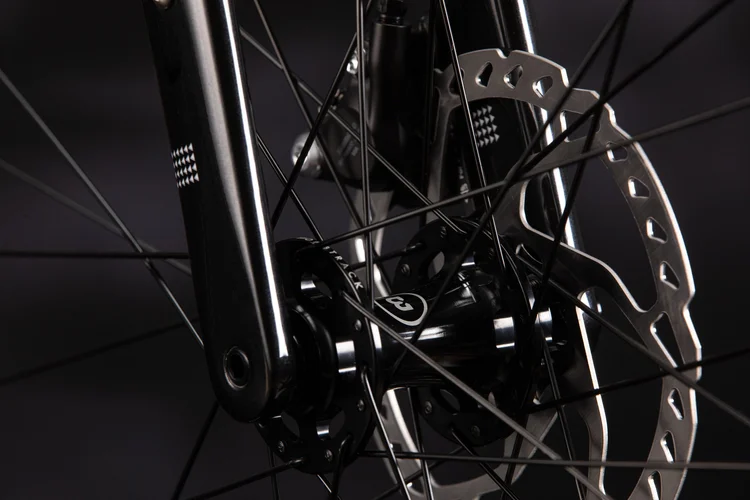

Front hub Bombtrack Tau sealed hub, 6-bolt disc
Rear hub Bombtrack Tau sealed hub, 11-speed, 6-bolt disc
Through axle 12 x 100 mm / 12 x 142 mm
Front rim WTB ST i19 double wall, TCS 2.0, 32h
Rear rim WTB ST i19 double wall, TCS 2.0, 32h
Saddle Seido Comp saddle
Seat post Bombtrack Beech 27.2 mm x 415 mm size XL; 315 mm size XS - L

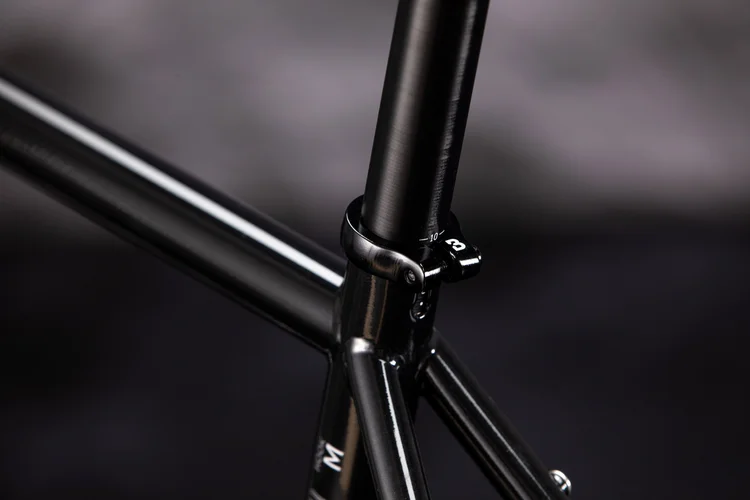

Seat clamp Bombtrack Origin 29.8 mm
Tires S WTB Resolute 650B x 42C /
M - XL WTB Venture 700C x 40C, tubeless ready
**All spec's and pricing are subject to change without notice



FRAME GEOMETRY

Bike Size S M L XL
Wheel size 650B 700C 700C 700C
Seat Tube Length 490 525 545 565
Horizontal TT length 523 541 563 580
Seat Angle 73.6° 73.6° 73.1° 73.1°
Head Angle 71.1° 71.6° 71.6° 71.6°
Headtube Length 110 130 150 170
BB Drop 54 64 64 64
Chainstay Length 410 425 425 425
Fork Offset 50 50 50 50
Trail 62 65 65 65
Wheelbase Length 989 1014 1031 1049
Standover 752 803 821 841
Reach 366 375 386 397
Stack 534 565 584 603
Front Center 586 597 615 632
Axle to Crown 400 400 400 400
