The Beyond Al is a favorite at Bike and Brew. With its full range of mounts and braze-ons across the frame and fork it's happy to accept either panniers or bikepacking bags.

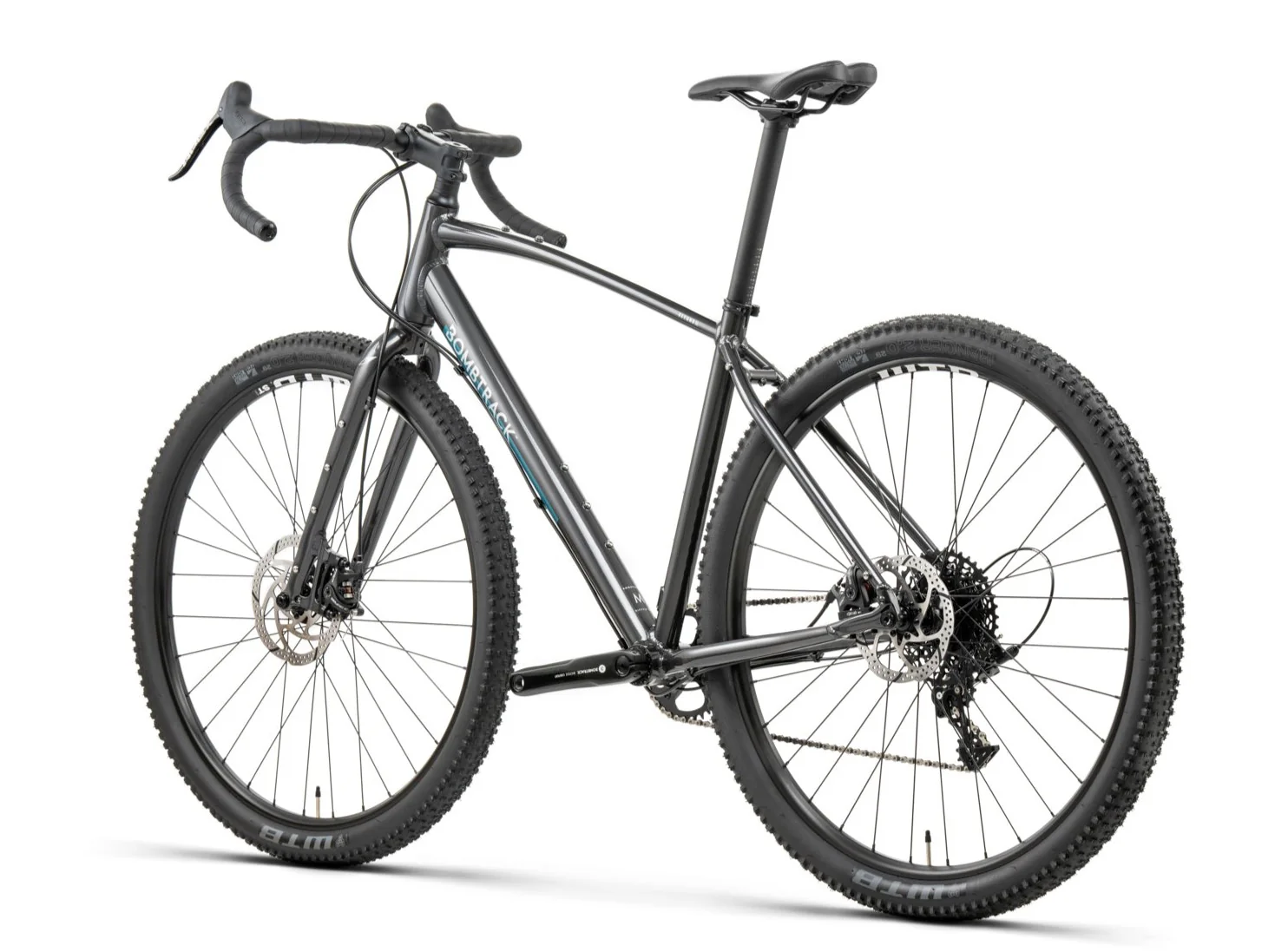

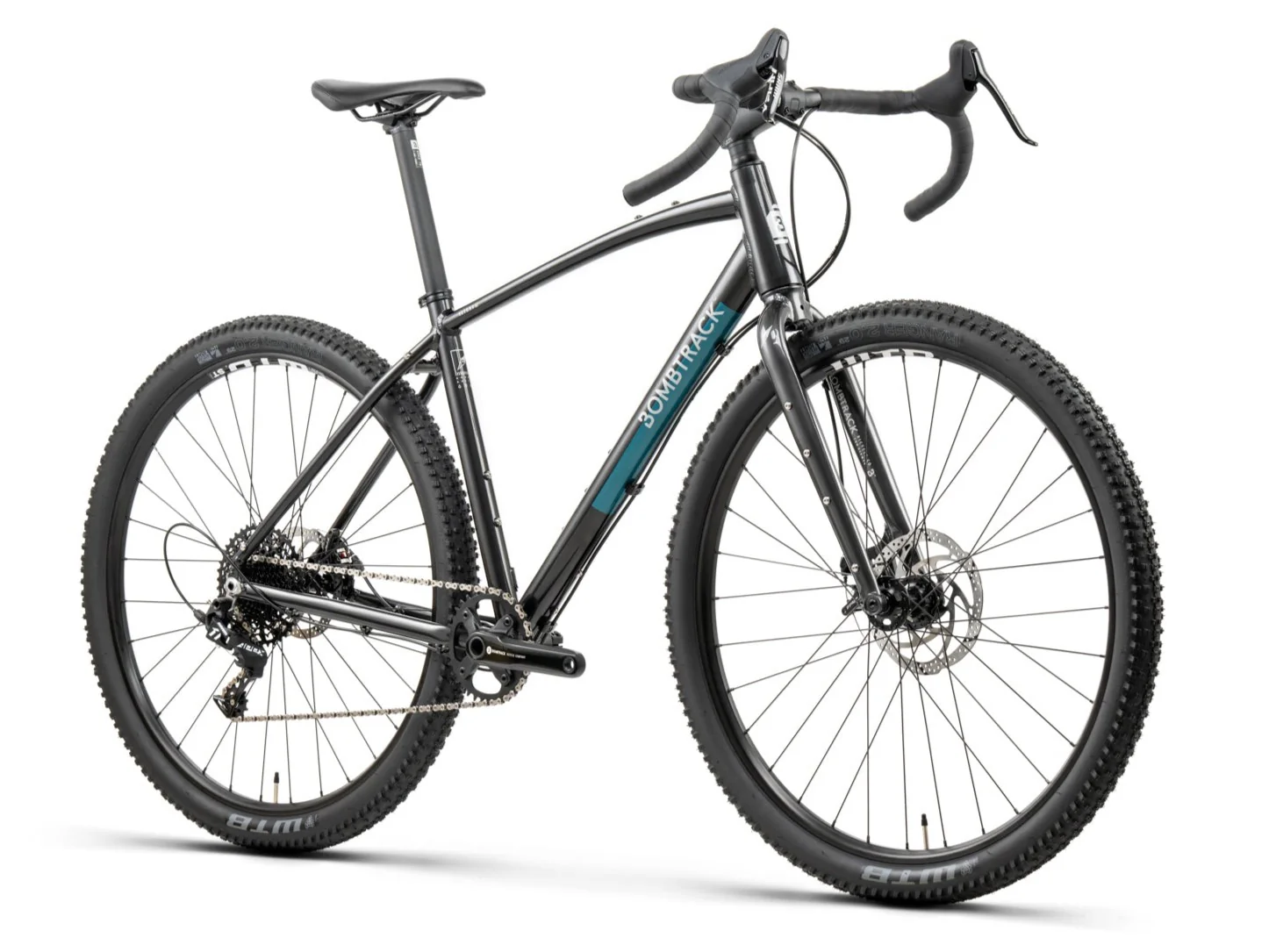

The Beyond AL is our aluminium equivalent from their well know steel frames. The heavily hydro-formed tube profile and fork come with internal light cable routing, complete with fender, rack and triple cage mounts for overnight trips. The Beyond AL is front derailleur compatible for those preferring a more comprehensive range of gearing options up the front. All sizes come with 12mm through-axles on the front and rear, besides size-matched 27.5” wheels on the size S option to ensure efficient geometry across the range.
| Frame | 6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, stealth dropper ready, 86.5 mm T47 BB shell |
| Fork | 6061 aluminium, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |

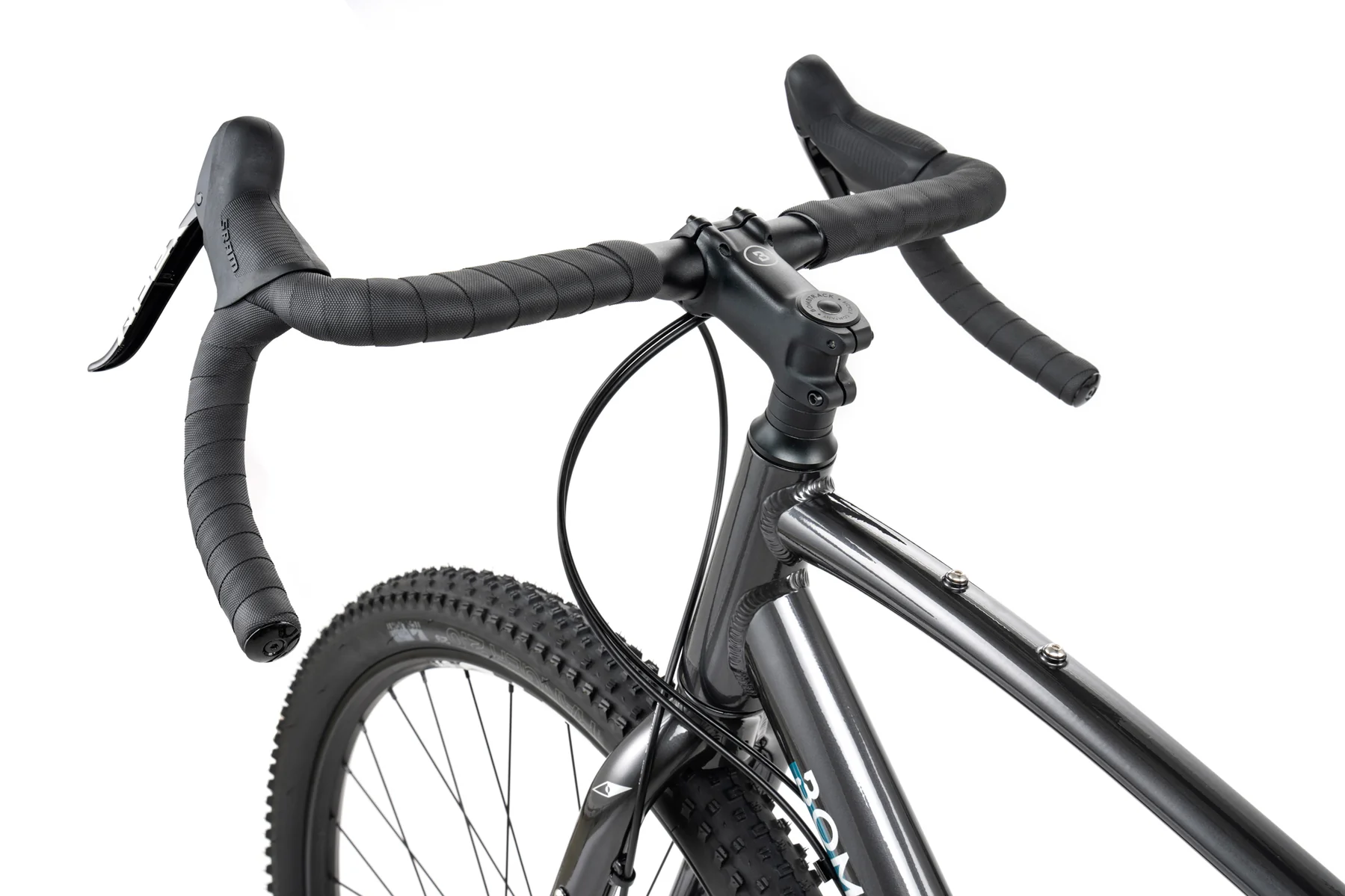

| Handlebar | BOMBTRACK TACKLE gravel bar, 31.8 mm, 25° flare |
| Grips | BOMBTRACK COMMAND bar tape |
| Stem | BOMBTRACK TRAMP forged aluminium stem, 3° |
| Headset | Sealed integrated aheadset, 1.1/2'' - 1.1/8'' |

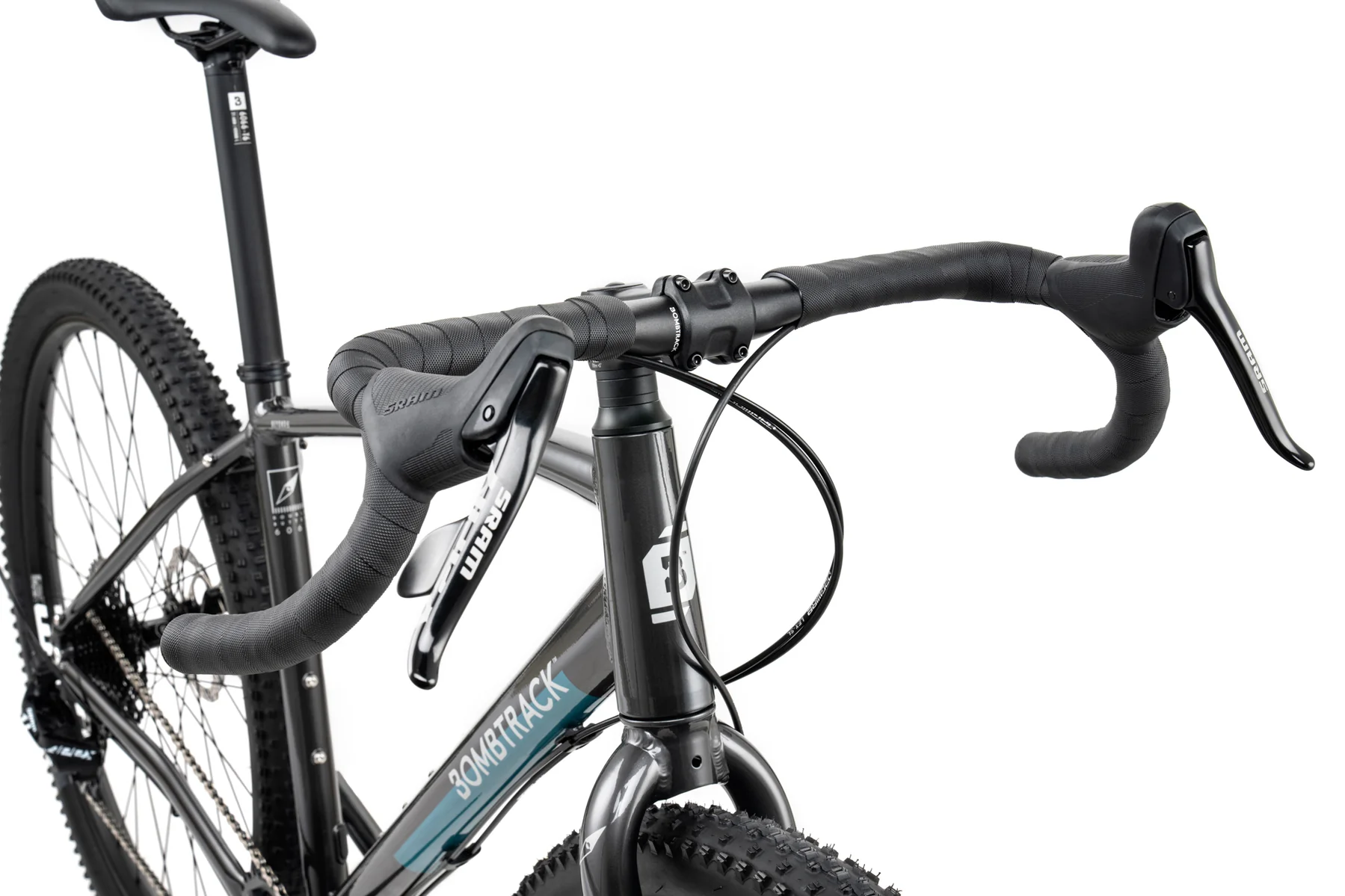

| Levers | SRAM Apex double tap mechanic |
| Shifter | SRAM Apex double tap 1 x 11 |

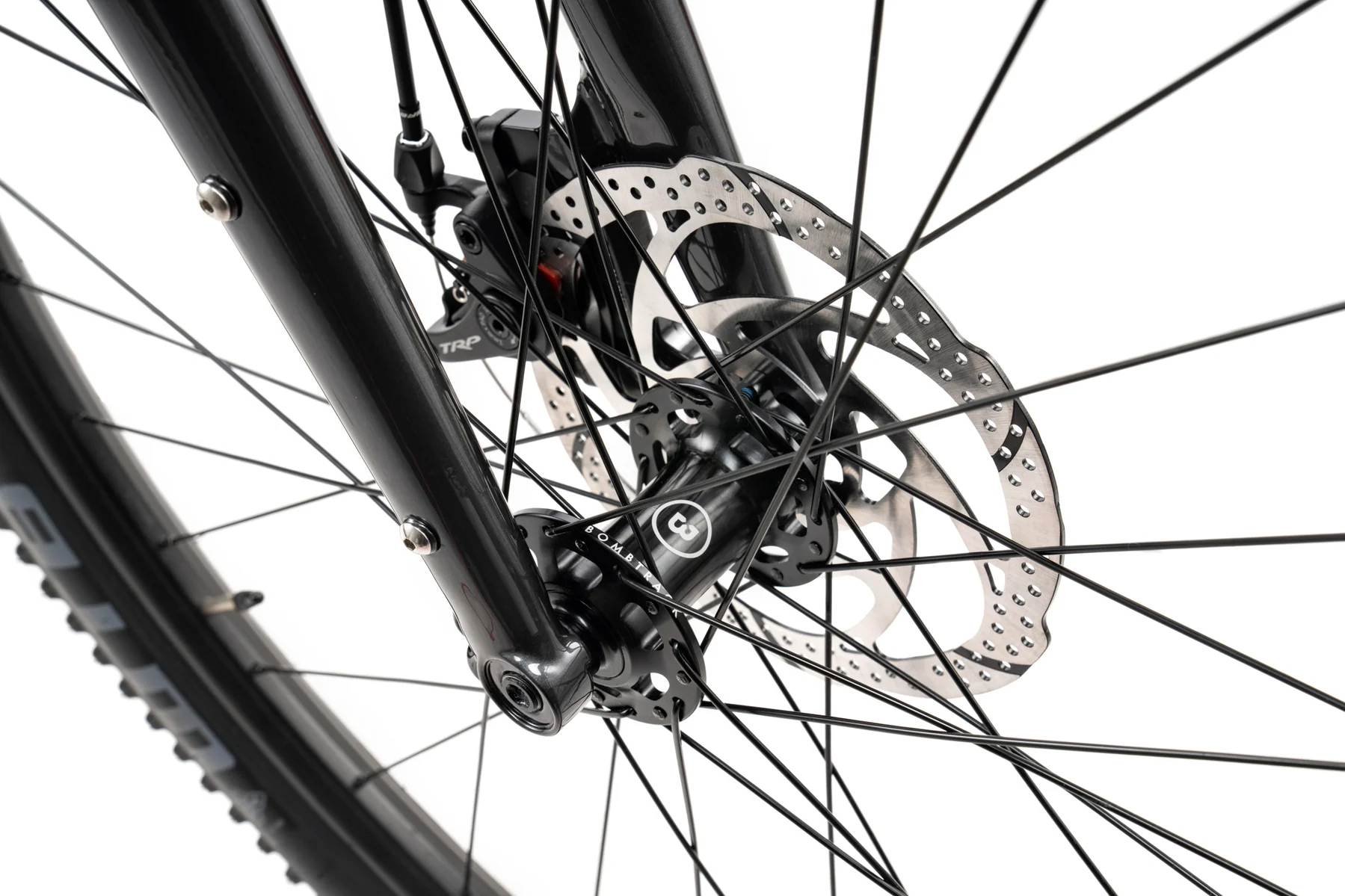

| Brakes | TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors |

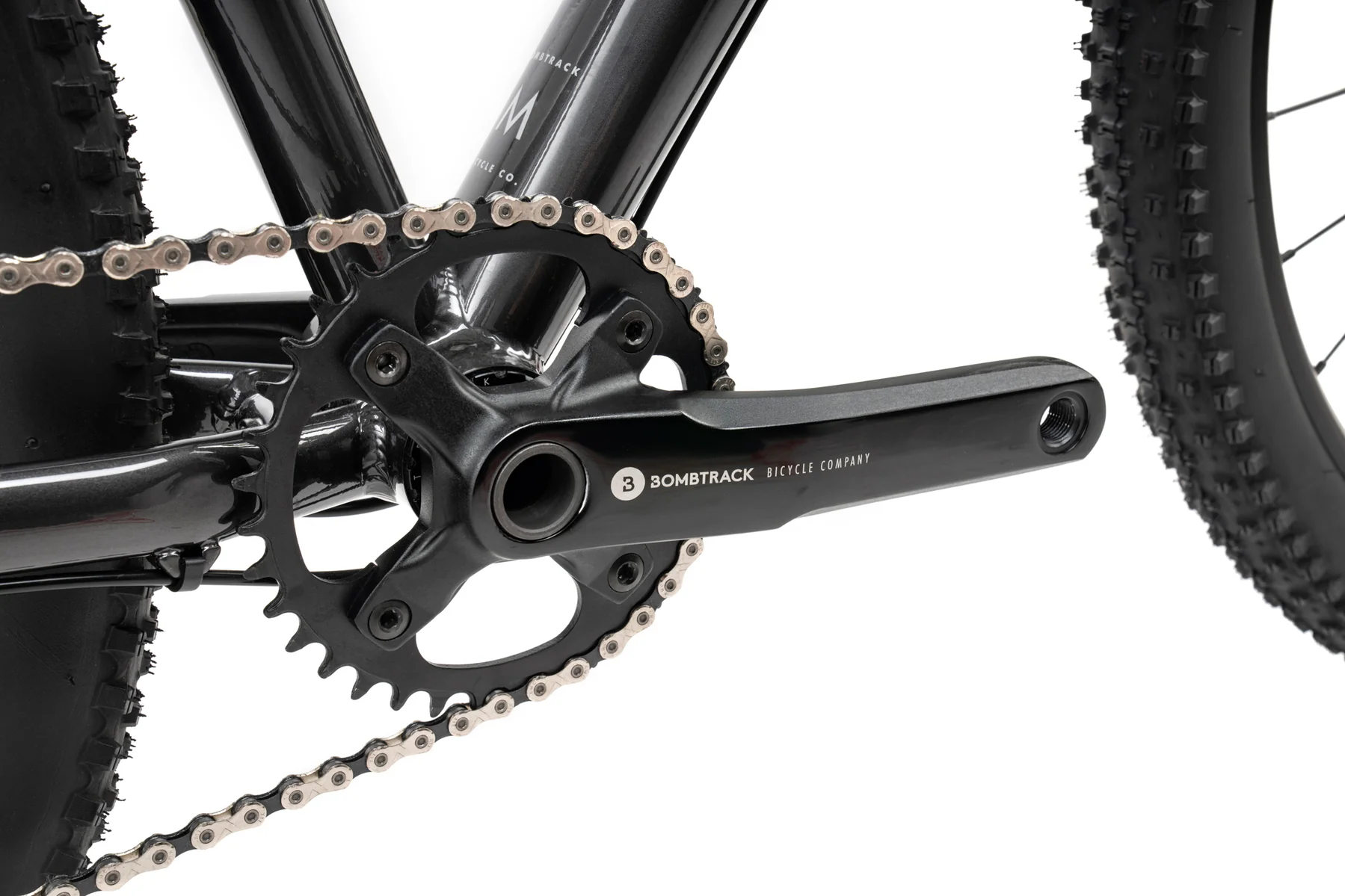

| Crankset | BOMBTRACK AMES forged aluminium crank, 24 mm spindle |
| BB | BOMBTRACK T47 internal sealed BB for 24 mm spindle |
| Pedals | - |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring | Steel, narrow-wide, 36 T |
| Cassette | SRAM PG-1130 11-speed, 11 - 42 T |
| Front derailleur | - |
| Rear derailleur | SRAM APEX 1, clutch, long cage |
| Front hub | BOMBTRACK ARC sealed hub, 6-bolt disc |
| Rear hub | BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Saddle | BOMBTRACK FUZZ |
| Seat post | SEIDO YEW aluminium seatpost, 31.8 mm x 400 mm |
| Seat clamp | BOMBTRACK PRIME 34.9 mm |
| Front tyre | WTB RANGER TCS LIGHT / FAST ROLLING S 27.5'' x 2.0'' / M - L 29'' x 2.0'', tubeless ready |
| Rear tyre | WTB RANGER TCS LIGHT / FAST ROLLING S 27.5'' x 2.0'' / M - L 29'' x 2.0'', tubeless ready |
