Component

Specification

Frame

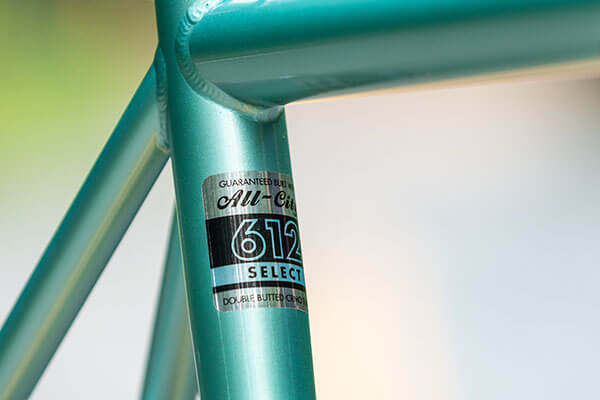

612 Select Chromoly Steel, TIG Welded and Brazed, E.D. Coated

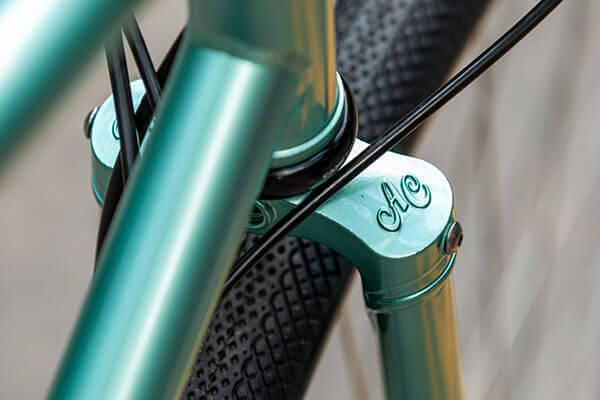

Fork

612 Select Chromoly Steel, All-City Signature Fork ends and Crown, TIG Welded and Brazed, E.D. Coated

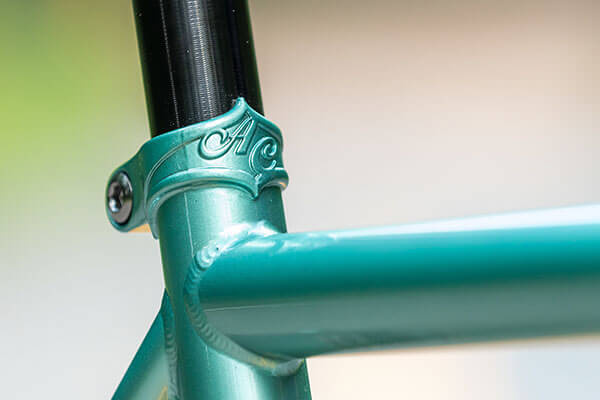

Seatpost Clamp

All-City Signature Brazed-on Seat Collar

Crankset

Shimano Tiagra R460, 46/34t

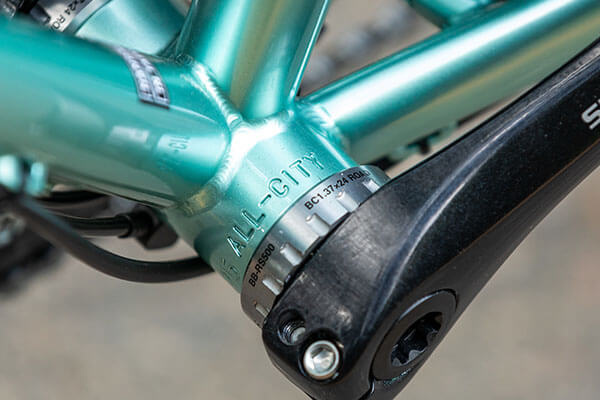

Bottom Bracket

Shimano BSA

Front Derailleur

Shimano Tiagra 4700

Rear Derailleur

Shimano Tiagra 4700, GS 10-speed

Cassette

MicroSHIFT, 11-32t

Chain

KMC X10 EPT

Headset

Cane Creek 40 Series

Brakes

Tektro MD-C550, with short cable pull

Brake/Shift Levers

Shimano Tiagra 4700, 2x10

Rotors

Tektro TR160-22, 160mm, 6-bolt

Stem

AL6061, 3D forged, 4-bolt stem, 31.8mm, ±6° Rise

Handlebar

AL6061, 31.8mm, 12° Flair

Grip/Tape

All-City Embossed Black Tape

Saddle

All-City Gonzo -OR- DDK-5255

Seatpost

27.2mm, two-bolt, 350mm length

Front Hub

All-City Go Devil, 32h, 6-bolt

Rear Hub

All-City Go Devil, 32h, 6-bolt

Rims

WTB ST i19, TCS 2.0, 32h, 650b

Tires

Vee Speedster, 650b x 38mm

43cm (650b)

46cm (650b)

49cm

52cm

55cm

58cm

61cm

Head Tube Angle

70

70.5

71

71

72

72

72

Seat Tube Angle

75

74.5

74.2

73.5

73

72.5

72

Top Tube Length

495

515

530

545

560

580

610

Seat Tube Length

420

450

480

510

540

570

600

Chainstay Length

420

420

435

440

440

445

445

Bottom Bracket Drop

58

58

75

75

75

75

75

Fork Offset

49

49

52

52

47

47

47

Total Fork Length

376

376

395

395

395

395

395

Head Tube Length

95

105

110

125

150

175

200

Standover

725.3

747.2

779

802

831

857.3

883.1

Wheelbase

989.4

1001.1

1021.1

1034.6

1029.9

1049.6

1073.7

Stack

493

504

545

559

589

612

636

Reach

363

375

376

380

380

387

403

Handlebar Width

380

380

400

420

420

440

460

Stem Length

70

80

90

100

100

110

120

Crank Arm Length

165

165

170

170

172.5

175

175
