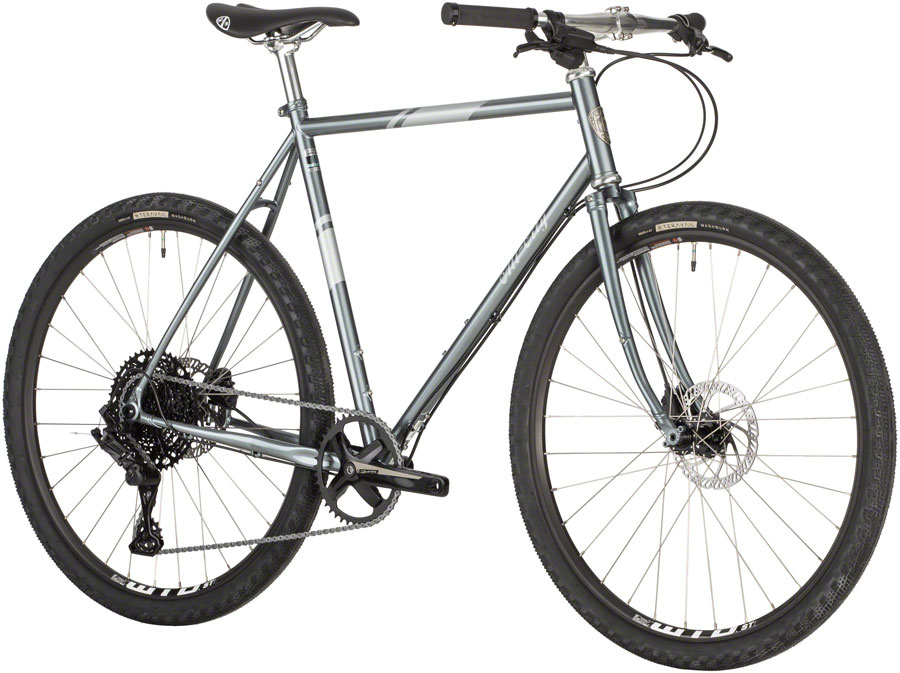

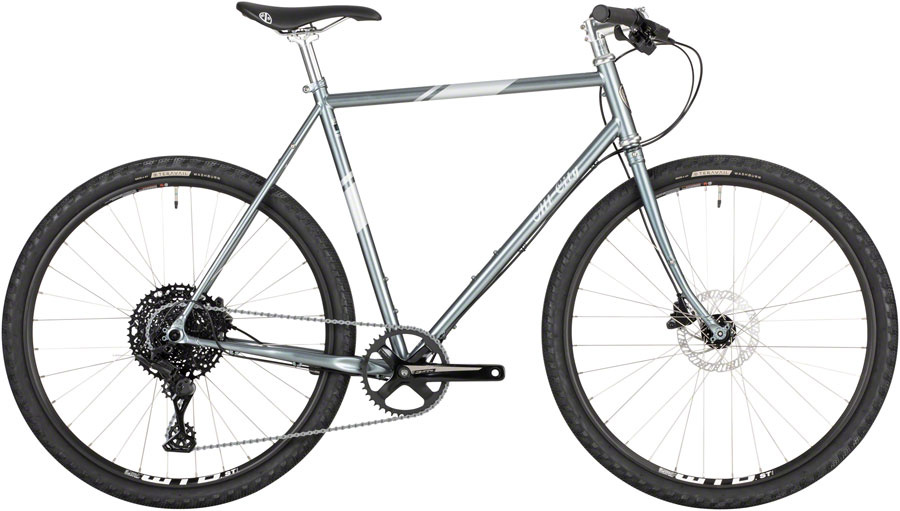

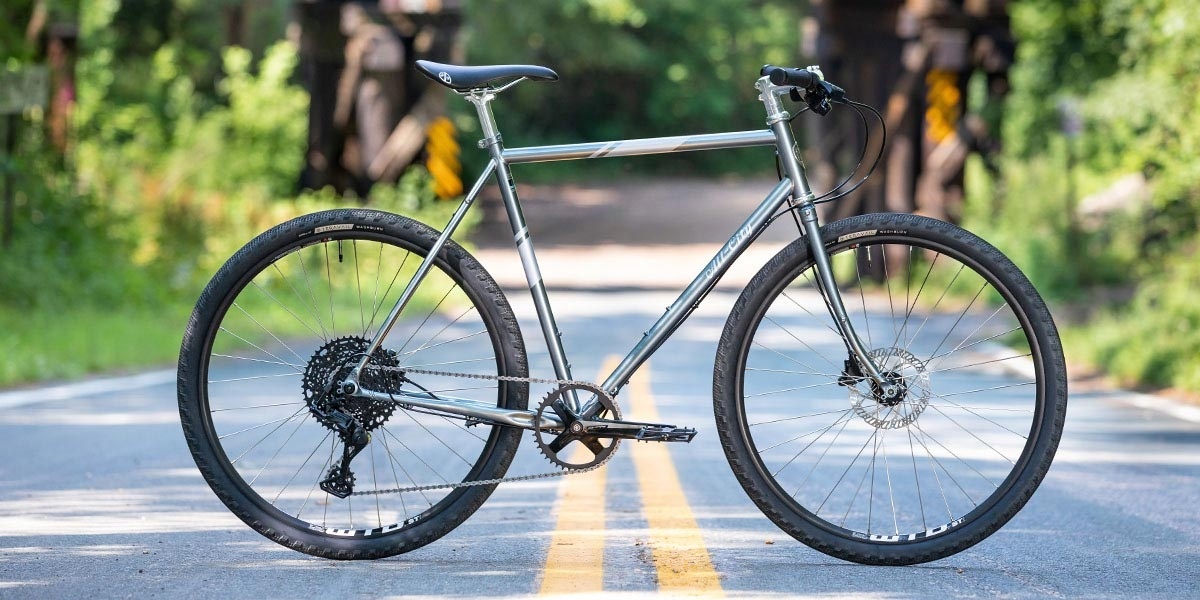

Gravel? Road? Touring? The Space Horse can do it all, this is one of the Bike and Brew's favourites. Classic All-City Steel with microSHIFT, a perfect blend.
The agile and stable Space Horse is our most versatile and popular model, and it’s ready to take you and your gear wherever adventure leads — from road riding to randonneuring to full-fledged touring.
Capable of tackling ambitious centuries, speedy gravel jaunts, urban commutes, and loaded touring, the nimble and dependable Space Horse offers unmatched elegance, comfort, inspiration, and fun.
Available in seven frame sizes and carefully paired with one of three different forks, the Space Horse capably and comfortably accommodates our smallest to tallest riders for long days in the saddle. These considerations eliminate toe overlap and ensure smooth handling, offering a consistent ride from top to bottom.
Conquer whatever you can dream up from wet roads on the way to work to a quick overnight bikepacking trip.
Clearance for 650b x 47mm on all sizes, and the 49-61cm frame sizes also fit 700c x 45mm

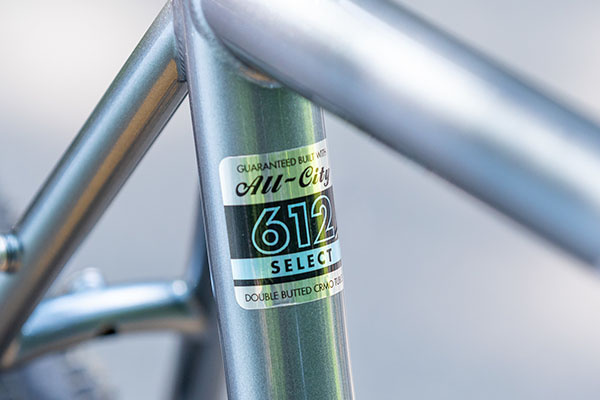

We’ve carefully chosen every piece of tubing on every frame size to provide the best ride possible.

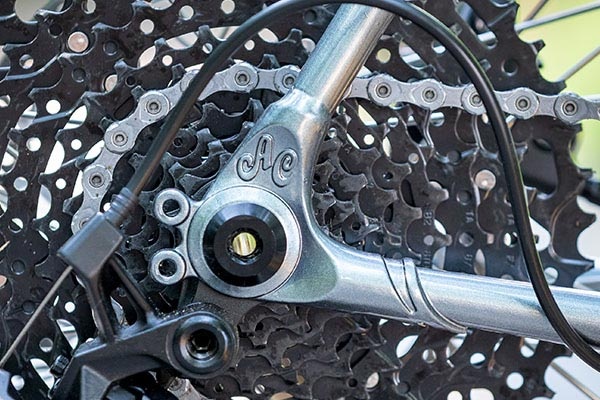

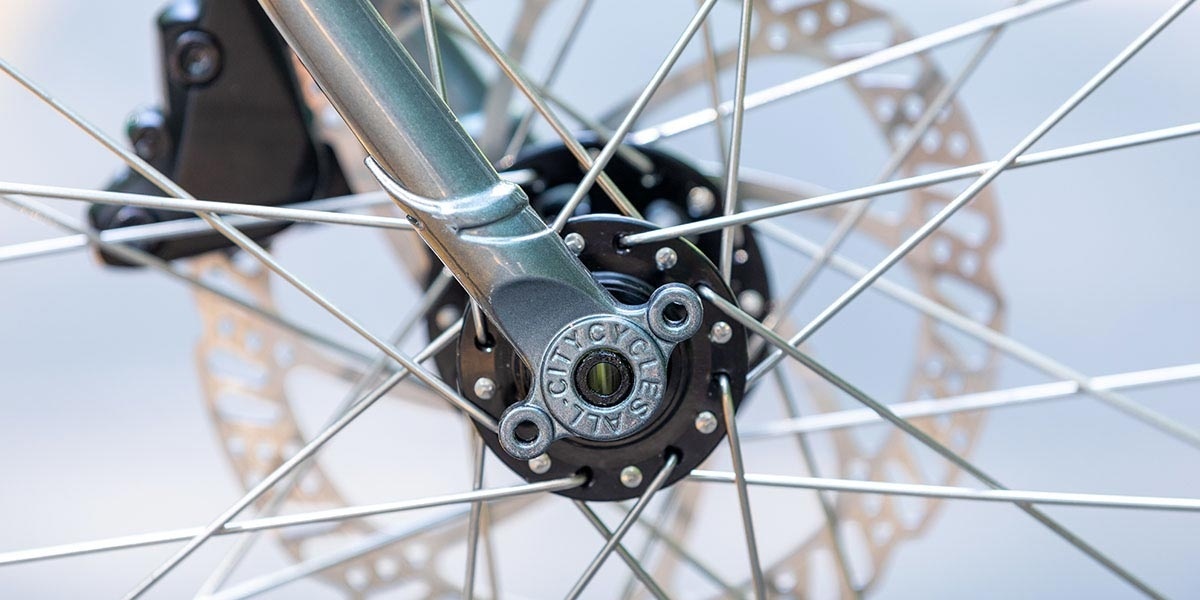

Elegant, custom-designed fork ends and dropouts accommodate 12mm thru-axles and flat-mount disc brakes

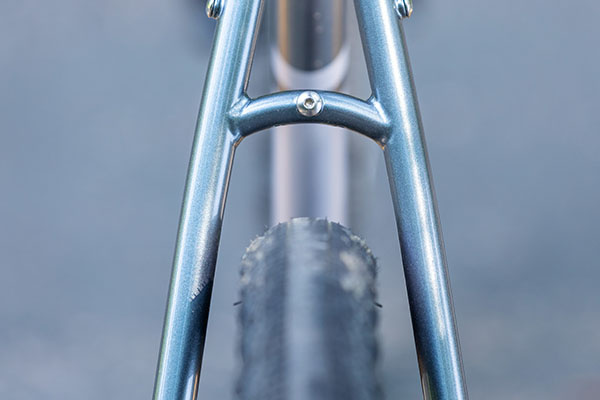

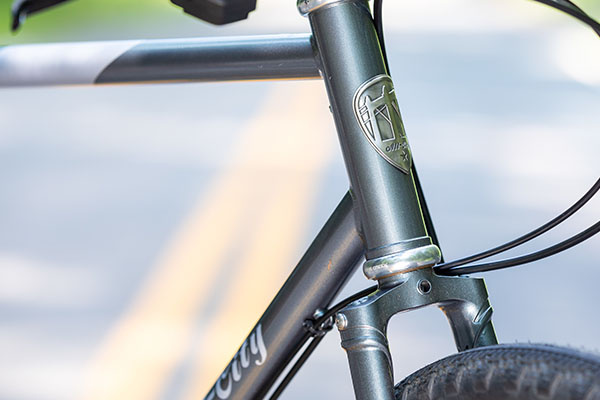

Thoughtful custom touches add class and style — perhaps where you least expect it.

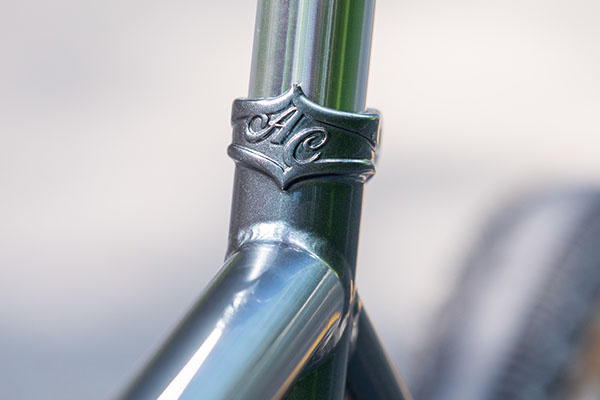

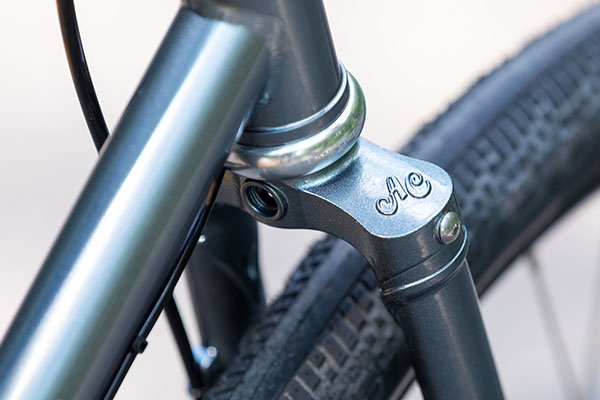

Upside-down and inside-out, AC’s signature style is stamped into the steel.

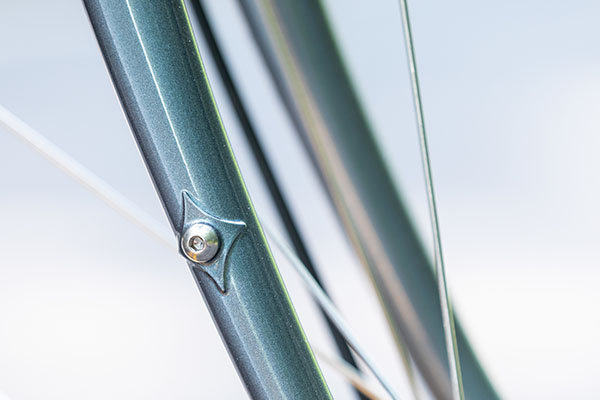

Beautiful stars reinforce mounts for three bottle cages, and our obsessive attention to detail.
Our topnotch wet paint finish sparkles with depth and luster, while an E.D. coating protects against rust. Learn more about our paint
Frame |
|
612 Select Chromoly Steel, TIG Welded and Brazed, E.D. Coated |
Fork |
|
612 Select Chromoly Steel, All-City Signature Fork ends and Crown, TIG Welded and Brazed, E.D. Coated |
Seatpost Clamp |
|
All-City Signature Brazed-on Seat Collar |
Crankset |
|
FSA Vero Pro, 40t |
Bottom Bracket |
|
FSA Square Taper |
Front Derailleur |
|
N/A |
Rear Derailleur |
|
microSHIFT Advent X, 10-speed |
Cassette |
|
microSHIFT Advent X, 10-speed, 11-48t |
Chain |
|
KMC X10 EPT |
Headset |
|
Cane Creek 40 Series |
Brakes |
|
Tektro HD-R280, Hydro |

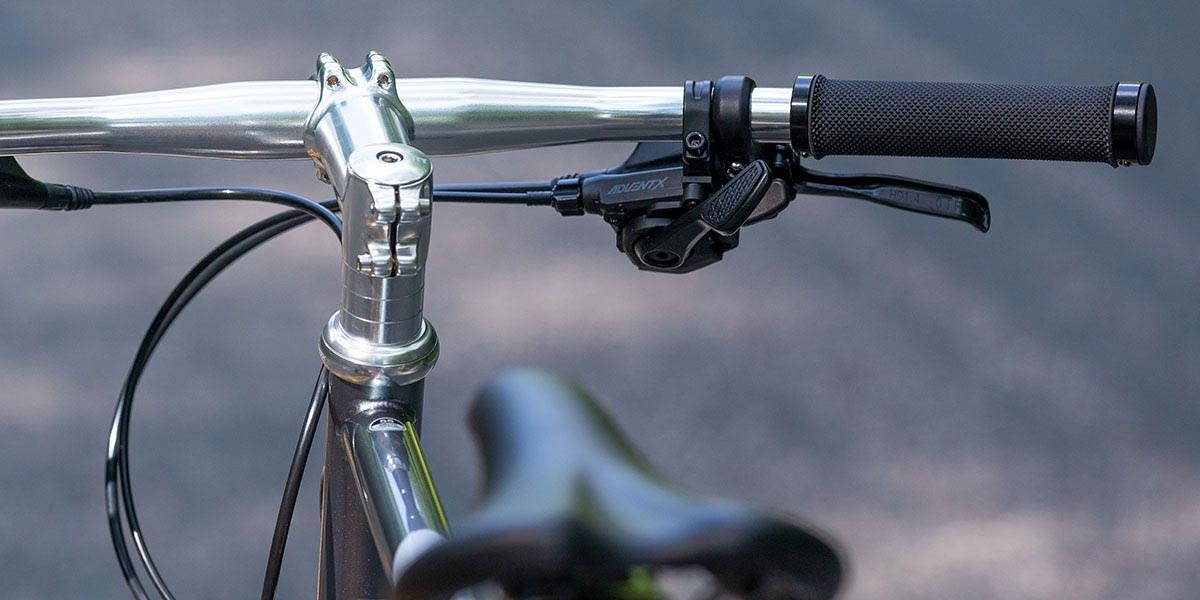

Shifter |
|
microSHIFT Advent X, 10-speed |
Rotors |
|
Tektro TR160-22, 160mm, 6-bolt |
Stem |
|
AL6061, 3D forged, 4-bolt stem, 31.8mm, ±6° Rise |
Handlebar |
|
AL6061, 600mm Wide, 27˚ Sweep |
Grip/Tape |
|
Velo single lock-on |
Saddle |
|
All-City Gonzo -OR- DDK-5255 |
Seatpost |
|
27.2mm, two-bolt, 350mm length |
Front Hub |
|
All-City Go Devil, 32h, 6-bolt |
Rear Hub |
|
All-City Go Devil, 32h, 6-bolt |
Rims |
|
WTB ST i19, TCS 2.0, 32h, 650b (43cm~61cm) |
Tires |
|
Teravail Washburn, 650bx47mm, Black Side Wall, (43cm~61cm) |
* Specification and pricing subject to change without notice
Size | 43cm (650b) | 46cm (650b) | 49cm | 52cm | 55cm | 58cm | 61cm |
---|---|---|---|---|---|---|---|
Head Tube Angle | 70 | 70.5 | 71 | 71 | 72 | 72 | 72 |
Seat Tube Angle) | 75 | 74.5 | 74.2 | 73.5 | 73 | 72.5 | 72 |
Top Tube Length) | 495 | 515 | 530 | 545 | 560 | 580 | 610 |
Seat Tube Length | 420 | 450 | 480 | 510 | 540 | 570 | 600 |
Chainstay Length | 420 | 420 | 435 | 440 | 440 | 445 | 445 |
Bottom Bracket Drop | 58 | 58 | 75 | 75 | 75 | 75 | 75 |
Fork Offset | 49 | 49 | 52 | 52 | 47 | 47 | 47 |
Total Fork Length | 376 | 376 | 395 | 395 | 395 | 395 | 395 |
Head Tube Length | 95 | 105 | 110 | 125 | 150 | 175 | 200 |
Standover | 725.3 | 747.2 | 779 | 802 | 831 | 857.3 | 883.1 |
Wheelbase | 989.4 | 1001.1 | 1021.1 | 1034.6 | 1029.9 | 1049.6 | 1073.7 |
Stack | 493 | 504 | 545 | 559 | 589 | 612 | 636 |
Reach | 363 | 375 | 376 | 380 | 380 | 387 | 403 |
Handlebar Width | 380 | 380 | 400 | 420 | 420 | 440 | 460 |
Stem Length | 70 | 80 | 90 | 100 | 100 | 110 | 120 |
Crank Arm Length | 165 | 165 | 170 | 170 | 172.5 | 175 | 175 |
