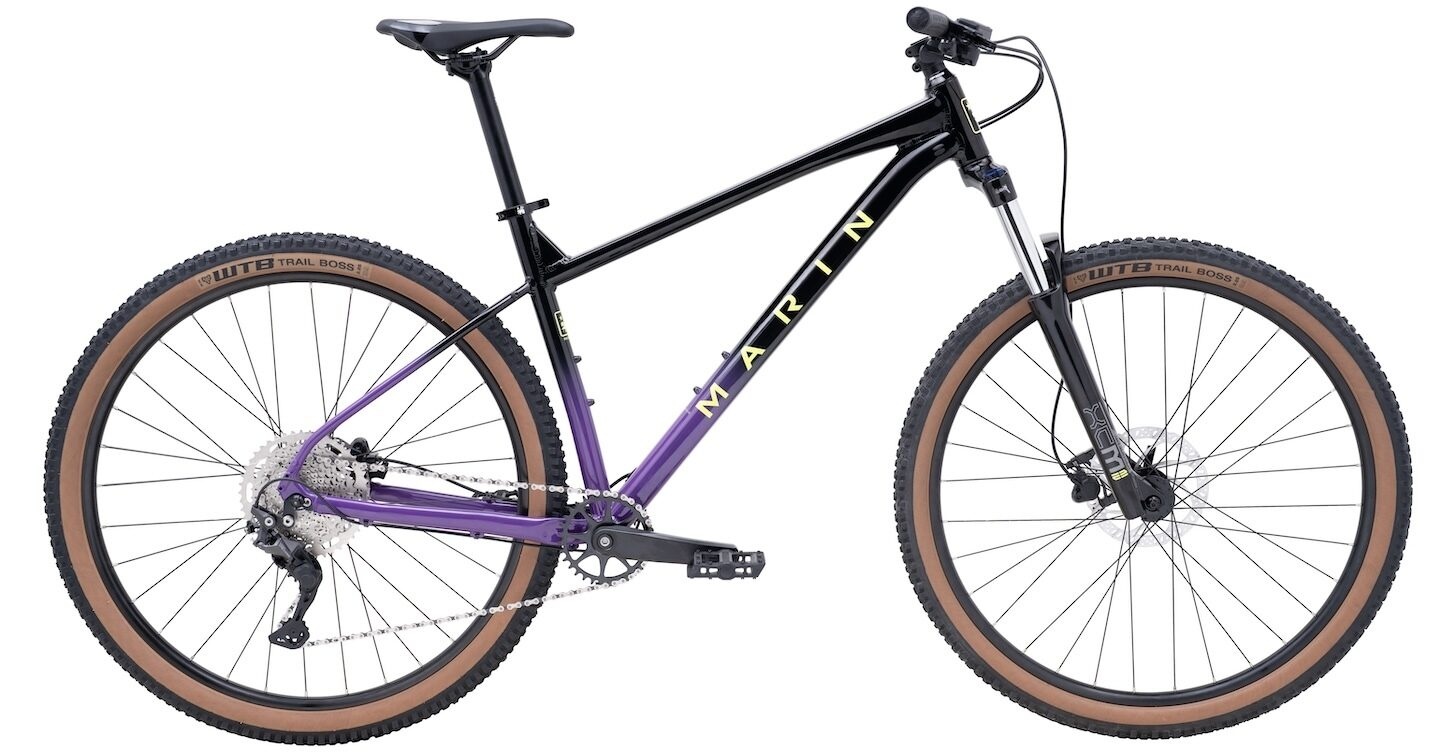

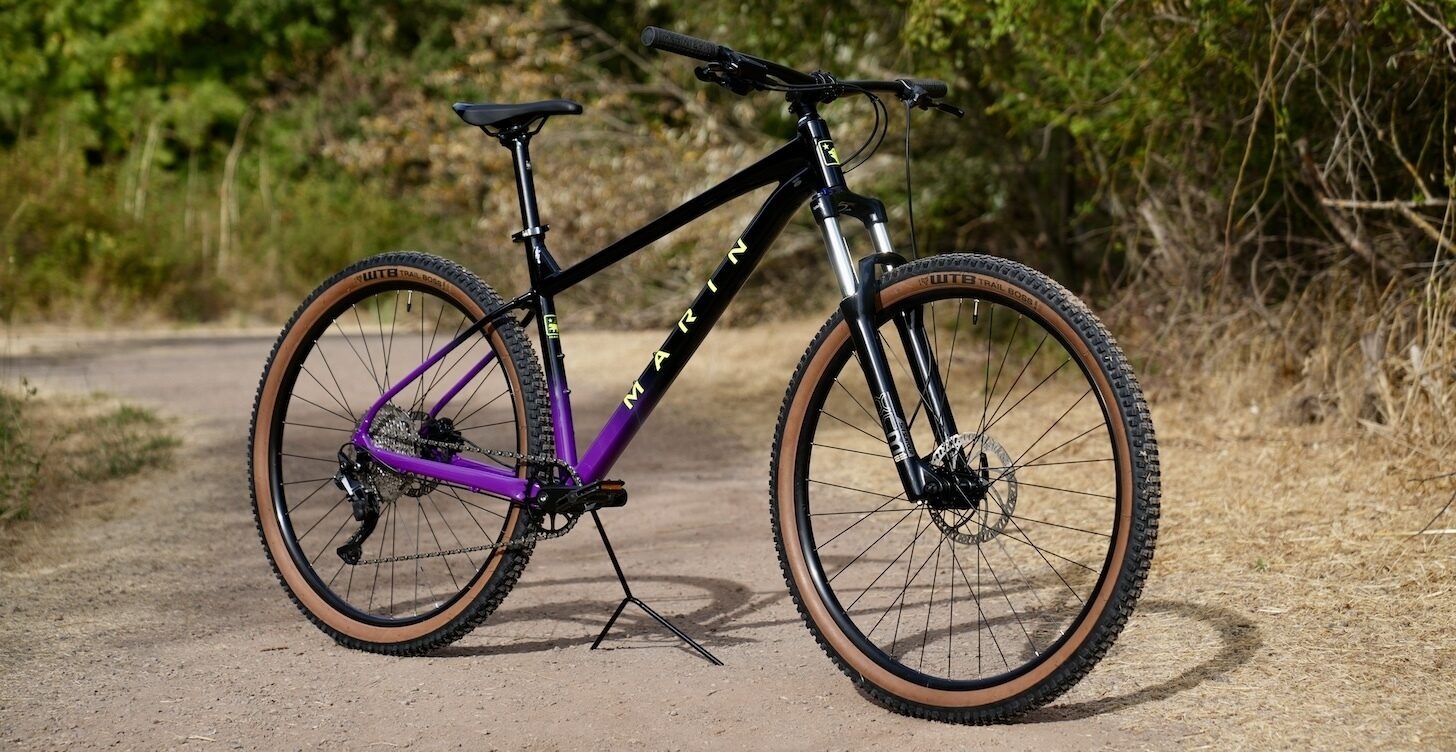

The Marin Bobcat Trail 4 is our mid-level Bobcat, packing plenty of fun into a bang-for-bike package.
HARDTAIL TRAIL RIDING
AGGRESSIVE SINGLETRACK
The Marin Bobcat Trail 4 is our mid-level Bobcat, packing plenty of fun into a bang-for-bike package. Very much a legit MTB, the Bobcat 4 is stacked with quality kit for off-road adventures and includes an SR/Suntour fork, microSHIFT Advent wide-range 9-speed shifting and Tektro hydraulic brakes. Like all Bobcats, it’s built around a fast, comfy and fun Series 2 aluminum frame and is available in 27.5” or 29” wheels, depending on frame size.
Key upgrade over the Bobcat Trail 3:
|
Frame |
|

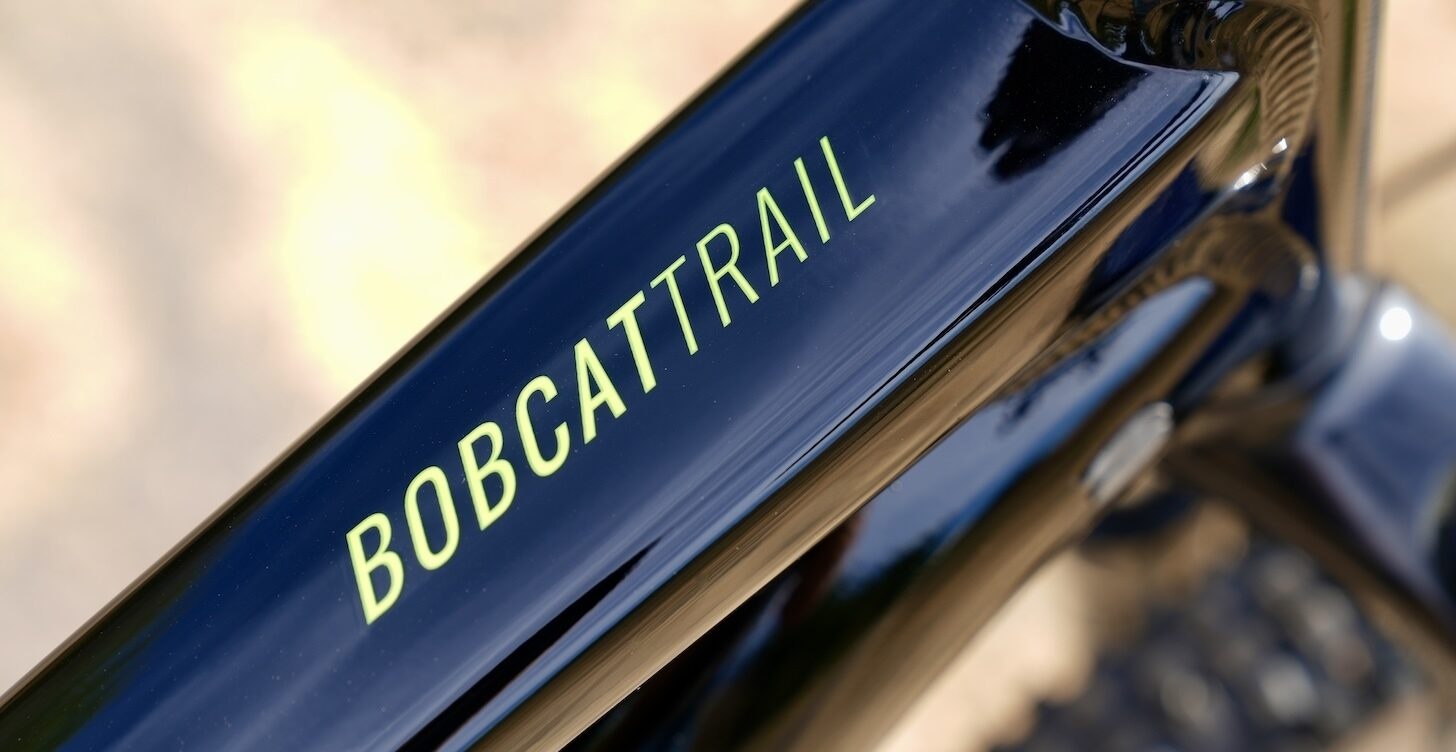

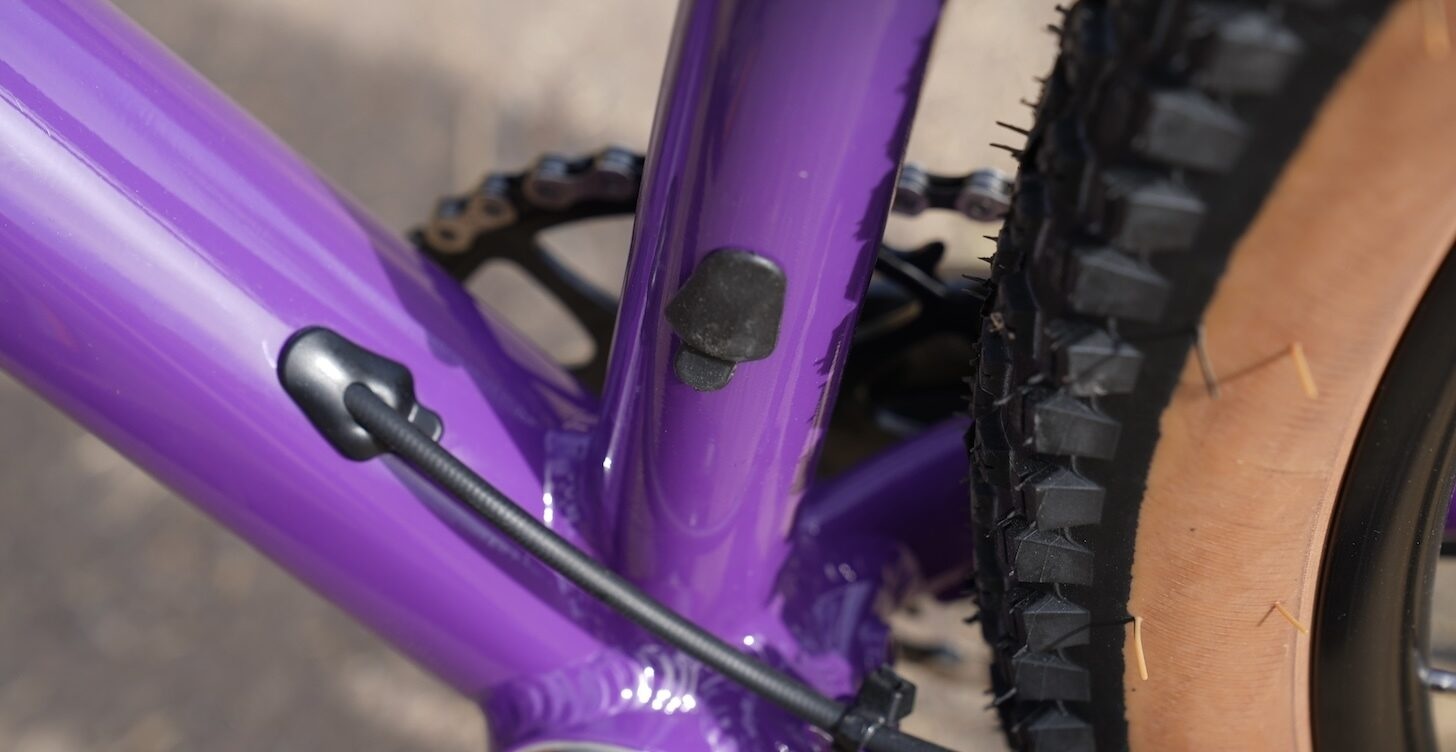

Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing |
|
Front Suspension |
|
SR/Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset |
|
Rim |
|
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific |
|
Hub Rear |
|
Forged Alloy, Disc, 32H |
|
Hub Front |
|
Forged Alloy, Disc, 32H |
|
Spokes |
|
14g Black Stainless Steel |
|
Tires |
|
WTB Trail Boss Comp, 27.5/29x2.25, Wire Bead |
|
Derailleur Rear |
|

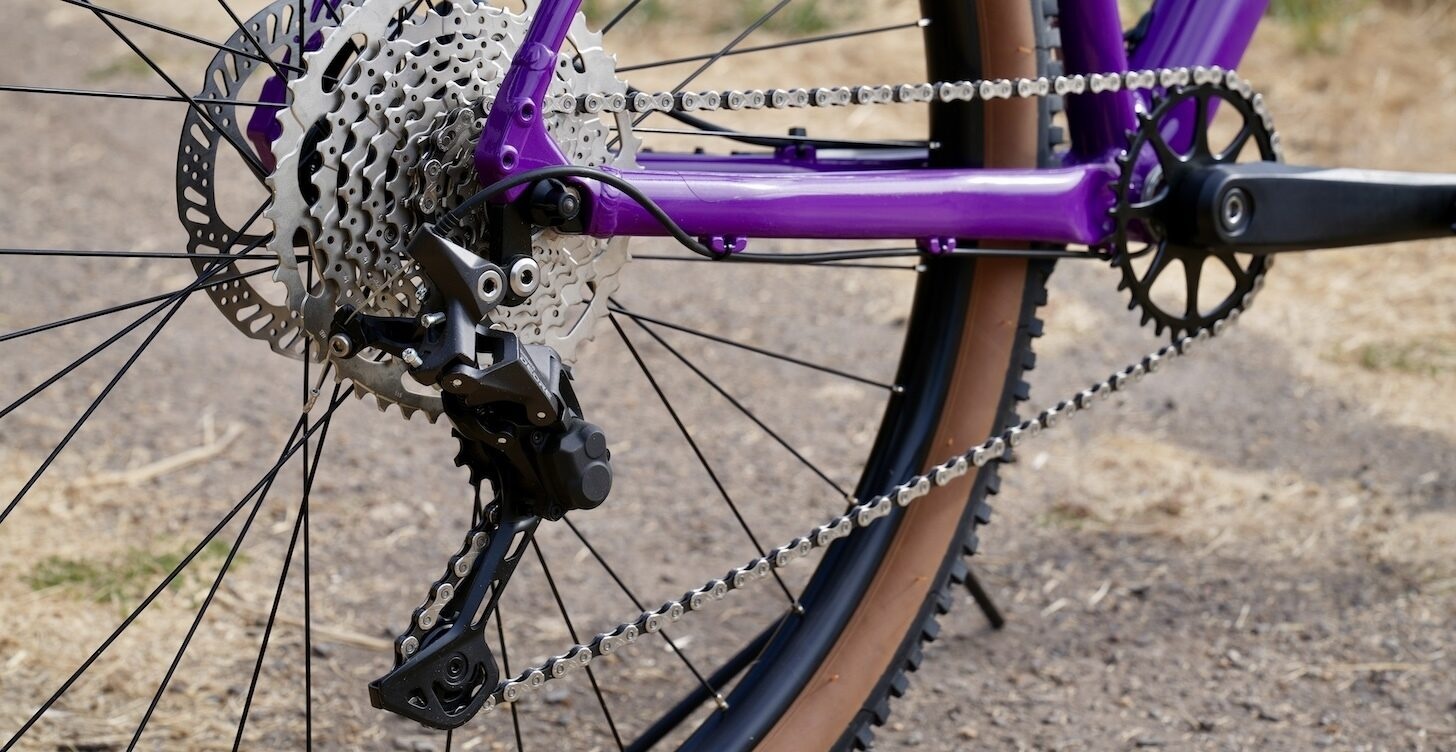

Shimano CUES U6000GS, w/Clutch |
|
Derailleur Front |
|
- |
|
Shift Lever |
|
Shimano CUES 10-Speed |
|
Crankset |
|
Alloy Crank, Steel Narrow-Wide Chainring, 32T |
|
Bottom Bracket |
|
Sealed Cartridge Bearings, Square Taper |
|
Chain |
|
KMC LG |
|
Cassette |
|
Shimano CUES CSLG300, 10-Speed, 11-48T |
|
Brakes Front |
|

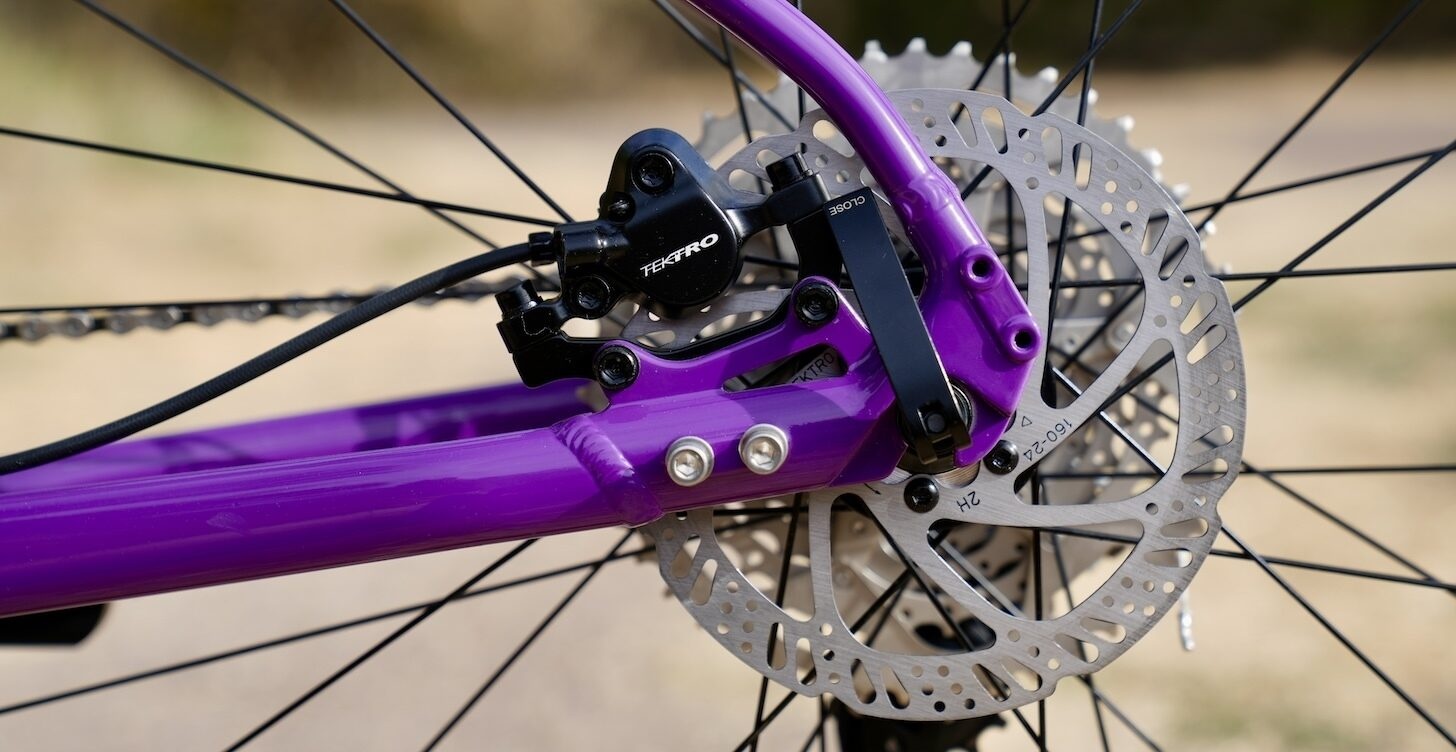

Tektro M280 Hydraulic Disc, 180mm Rotor |
|
Brakes Rear |
|
Tektro M280 Hydraulic Disc, 160mm Rotor |
|
Brake Levers |
|
Tektro M280 Hydraulic |
|
Handlebar |
|
Marin 31.8 Riser, 12mm Rise, 780mm Width |
|
Stem |
|
Marin Alloy, 31.8mm Clamp, 45mm |
|
Grips |
|
Marin MTB, Closed End |
|
Headset |
|
FSA No.10-P |
|
Seatpost |
|
Marin Alloy, 30.9 |
|
Saddle |
|
Marin MTB |
|
Pedals |
|
Nylon Platform |
|
Size |
|
SM (27.5) |
|
M (27.5) |
|
M (29) |
|
L |
|
XL |
|
A Stack |
|
599.3 |
|
604 |
|
629.3 |
|
634 |
|
638.5 |
|
B Reach |
|
435 |
|
445 |
|
445 |
|
465 |
|
480 |
|
C Headtube Angle |
|
67.5° |
|
67.5° |
|
67° |
|
67° |
|
67° |
|
D Headtube Length |
|
105 |
|
110 |
|
110 |
|
115 |
|
120 |
|
E Seattube Angle |
|
74.5° |
|
74.5° |
|
74.5° |
|
74.5° |
|
74.5° |
|
F Seattube Length |
|
381 |
|
431 |
|
431 |
|
482 |
|
520 |
|
G Toptube Effective |
|
601 |
|
612.5 |
|
619.5 |
|
640.8 |
|
657 |
|
H BB Height |
|
307 |
|
307 |
|
311.5 |
|
311.5 |
|
311.5 |
|
I BB Drop |
|
48 |
|
48 |
|
61 |
|
61 |
|
61 |
|
J Chainstay |
|
425 |
|
425 |
|
440 |
|
440 |
|
440 |
|
K Wheelbase |
|
1133.3 |
|
1145.2 |
|
1177.4 |
|
1199.3 |
|
1216.3 |
|
L Standover Height |
|
659.07 |
|
705.48 |
|
714.04 |
|
744.93 |
|
774.59 |
|
M Fork Offset |
|
44 |
|
44 |
|
44 |
|
51 |
|
51 |
|
Seatpost Diameter |
|
30.9 |
|
30.9 |
|
30.9 |
|
30.9 |
|
30.9 |
|
Handlebar Width |
|
780 |
|
780 |
|
780 |
|
780 |
|
780 |
|
Stem Length |
|
45 |
|
45 |
|
45 |
|
45 |
|
45 |
|
Crank Length |
|
170 |
|
170 |
|
170 |
|
170 |
|
170 |
