The Rift Zone is your ticket to riding trails in confidence. Destroy Merlins View on the way up and on the way down. Bike and Brew has you covered!

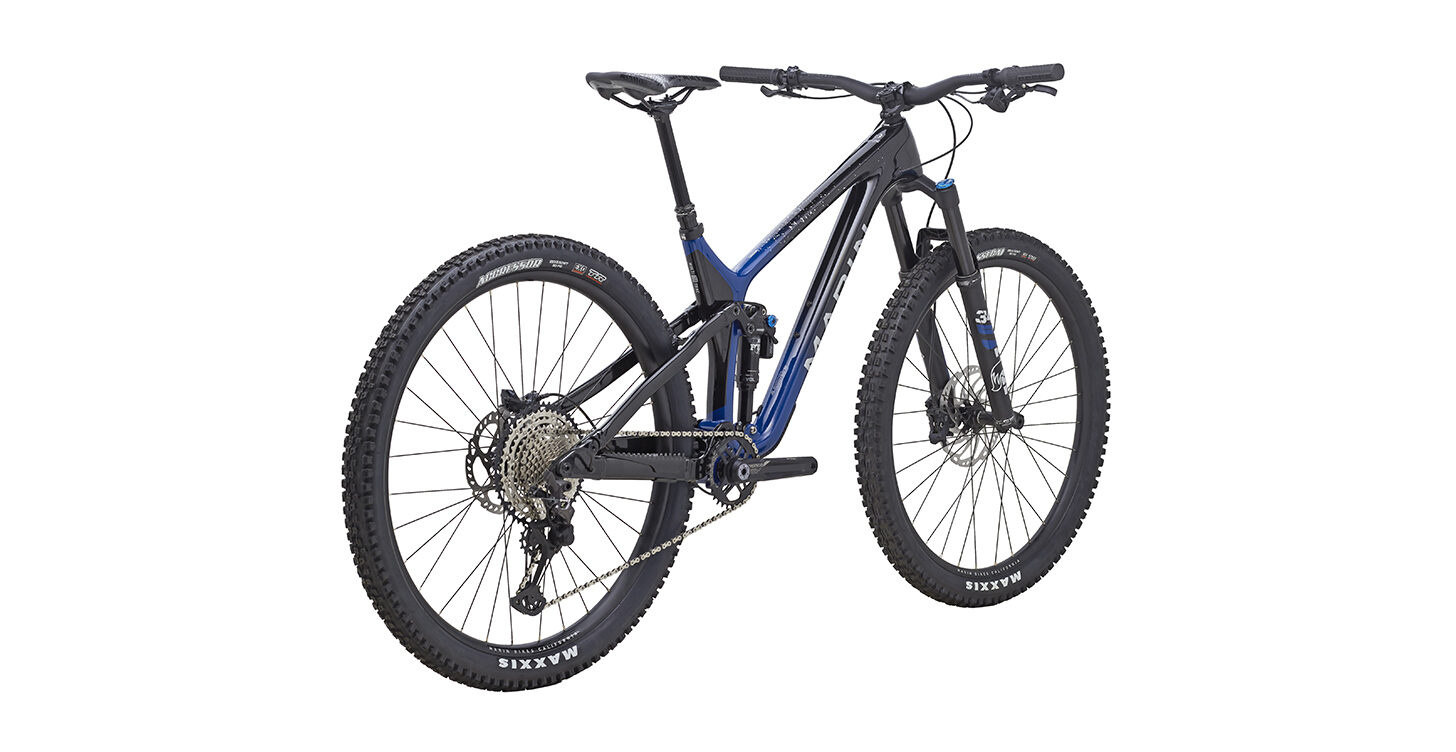

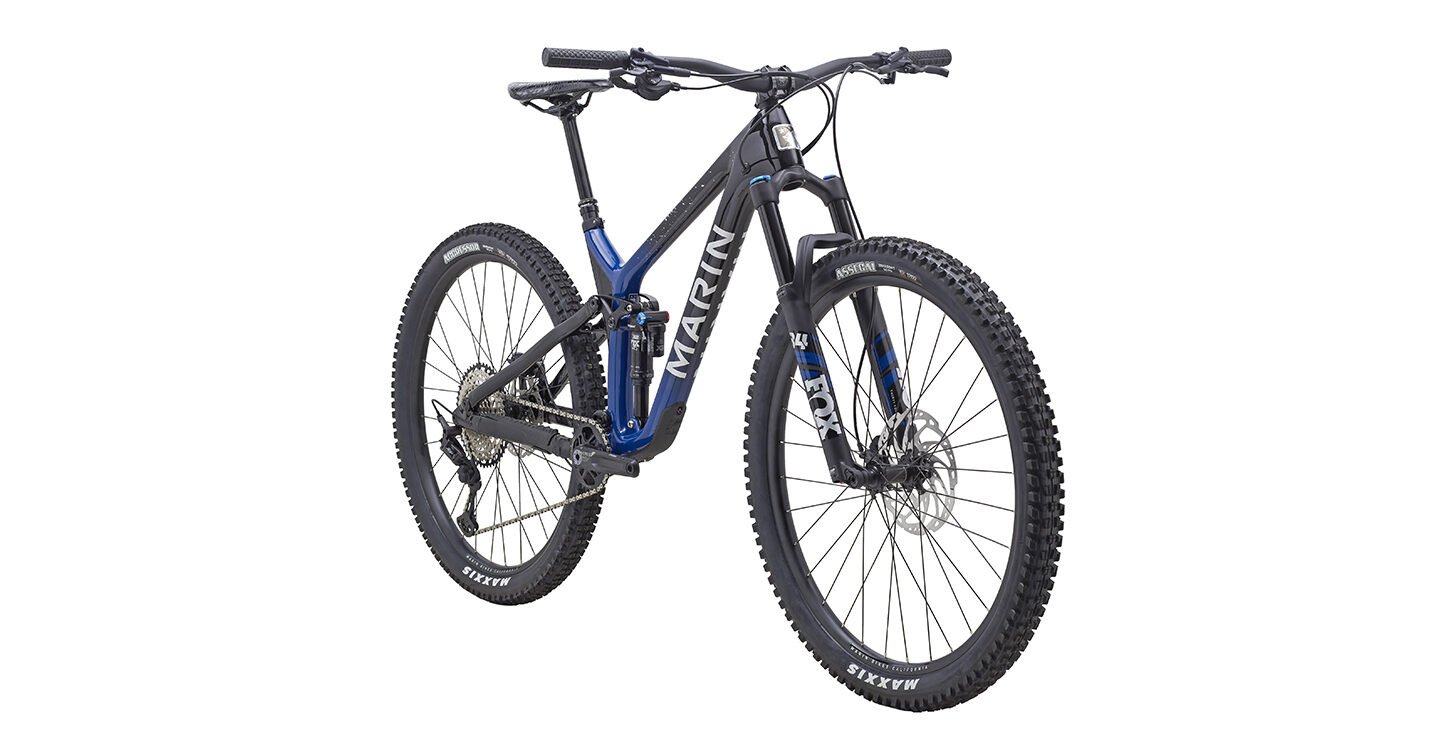

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
SPECIFICATIONS
| FRAME | Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| FRONT SUSPENSION | Fox Performance 34 Float, 130mm Travel, 3-Position Micro Adjust Compression Adjustment, Rebound Adjustment, 110x15mm Kabolt Axle, 44mm Offset |

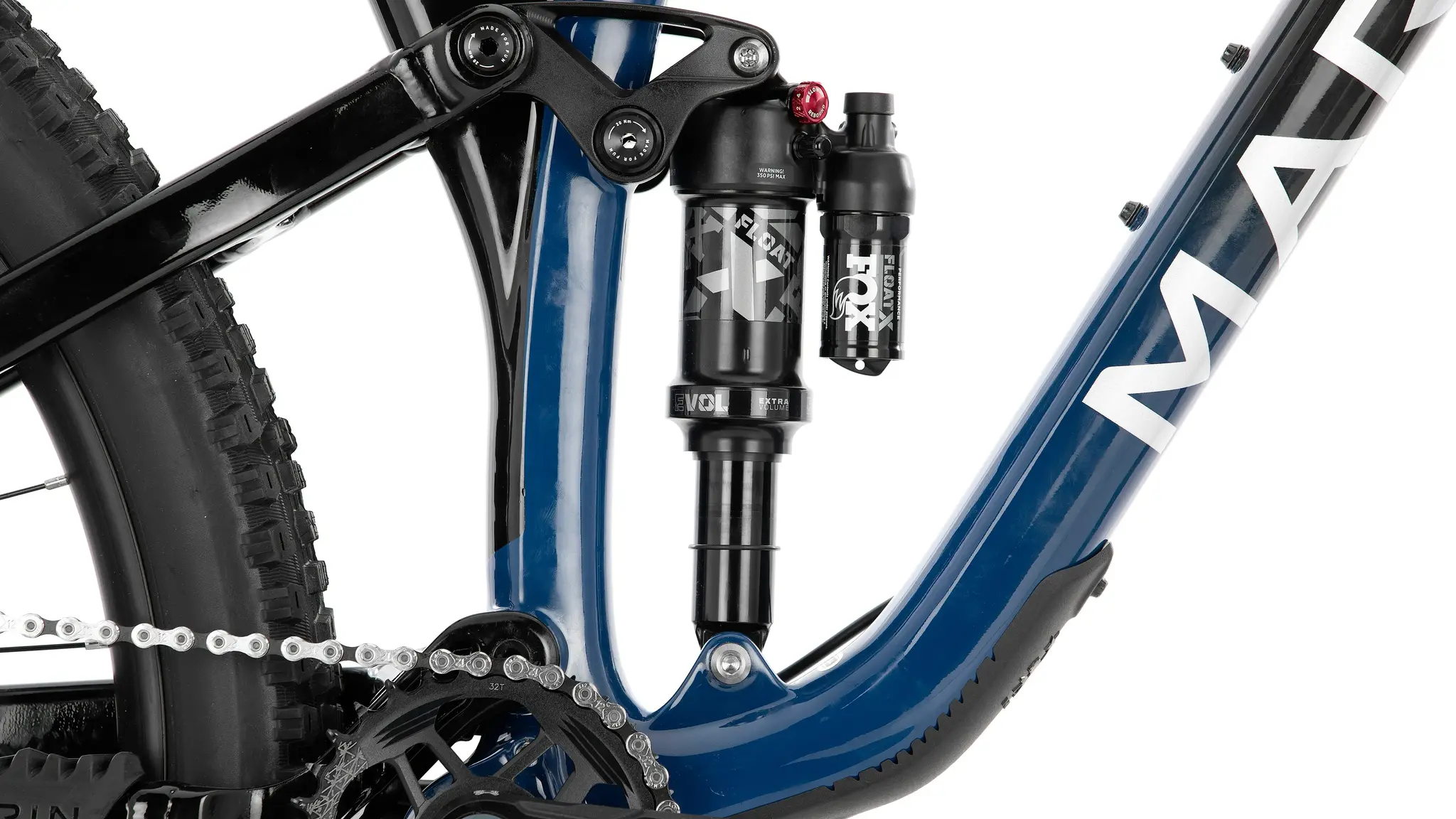

| REAR SUSPENSION | Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom |
| RIMS | Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible |
| HUB, REAR | Shimano, Microspline 148x12mm, Disc, 32H |
| HUB, FRONT | Shimano, 110x15mm, Disc, 32H |
| SPOKE, NIPPLES | 14g Black Stainless Steel |
| TIRES | Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible |
| DERAILLEUR, REAR | Shimano XT, 12-Speed, SGS |
| SHIFT LEVER | Shimano SLX 12-Speed, I-Spec EV |
| CRANKSET | FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing |
| BOTTOM BRACKET | MEGAEVO BB, 73mm BSA Threaded |
| CHAIN | KMC X-12 Silver and Black |
| CASSETTE | Shimano SLX M7100, 12-Speed, 10-51T |
| BRAKE, FRONT | Shimano SLX, 4-Piston Hydraulic Disc, Brake 203mm Rotor |
| BRAKE, REAR | Shimano SLX, 4-Piston Hydraulic Disc Brake, 180mm Rotor |
| BRAKE LEVERS | Shimano SLX Hydraulic, I-Spec EV |
| HANDLEBAR | Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree Back |
| STEM | Marin CNC Stem, 35mm Length, 35mm Bar Bore |
| GRIPS | Marin Single Clamp Locking |
| HEADSET | FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| SEATPOST | TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm |
| SADDLE | Marin Trail Speed Concept Pro |
| PEDALS | Not Included |
| EXTRAS |
Bolt-On Thru-Axle |
